25

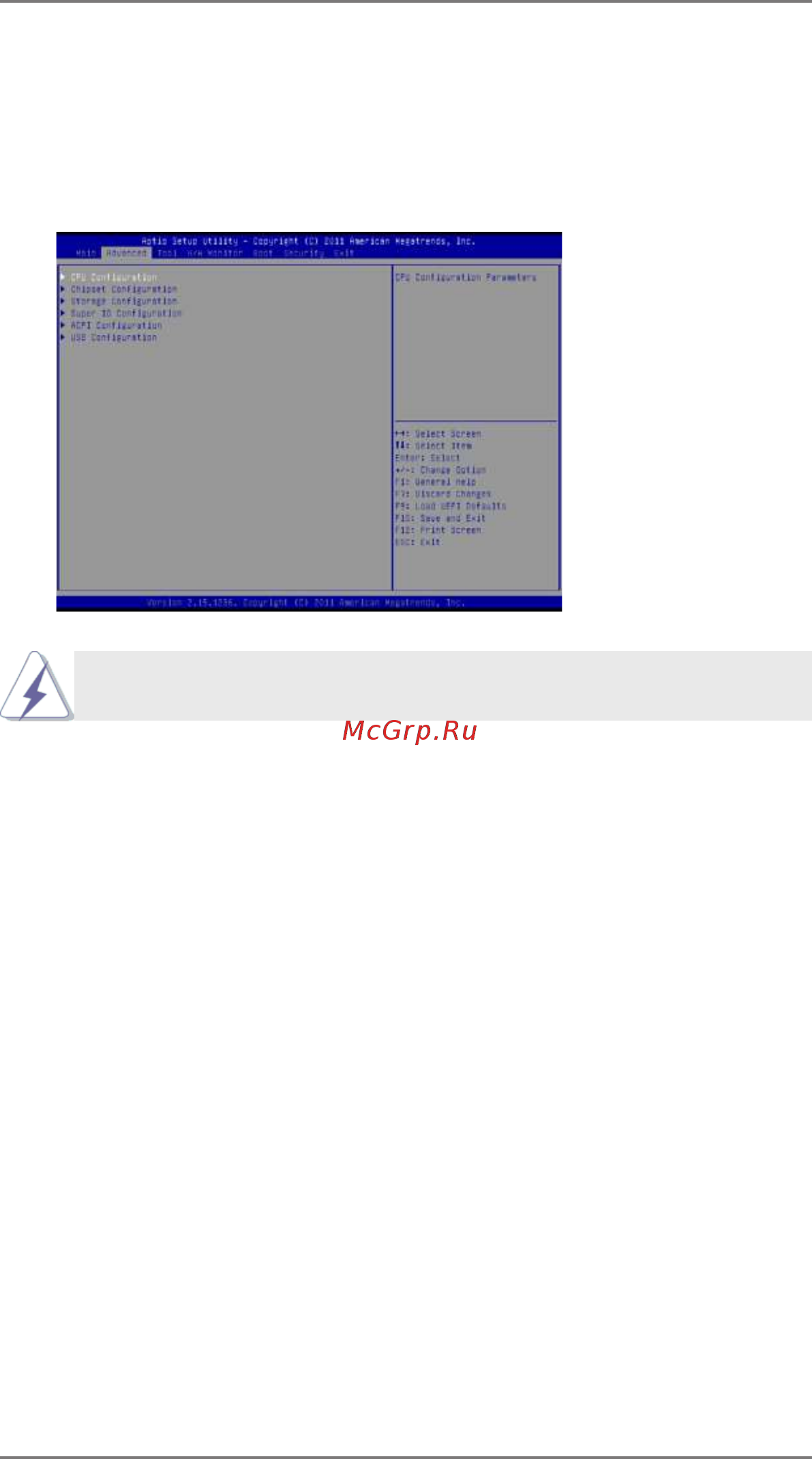

3.3 Advanced Screen
Inthissection,youmaysetthecongurationsforthefollowingitems:CPU
Configuration, Chipset Configuration, Storage Configuration, Super IO
Conguration,ACPICongurationandUSBConguration.
Setting wrong values in this section may cause the system to malfunction.
