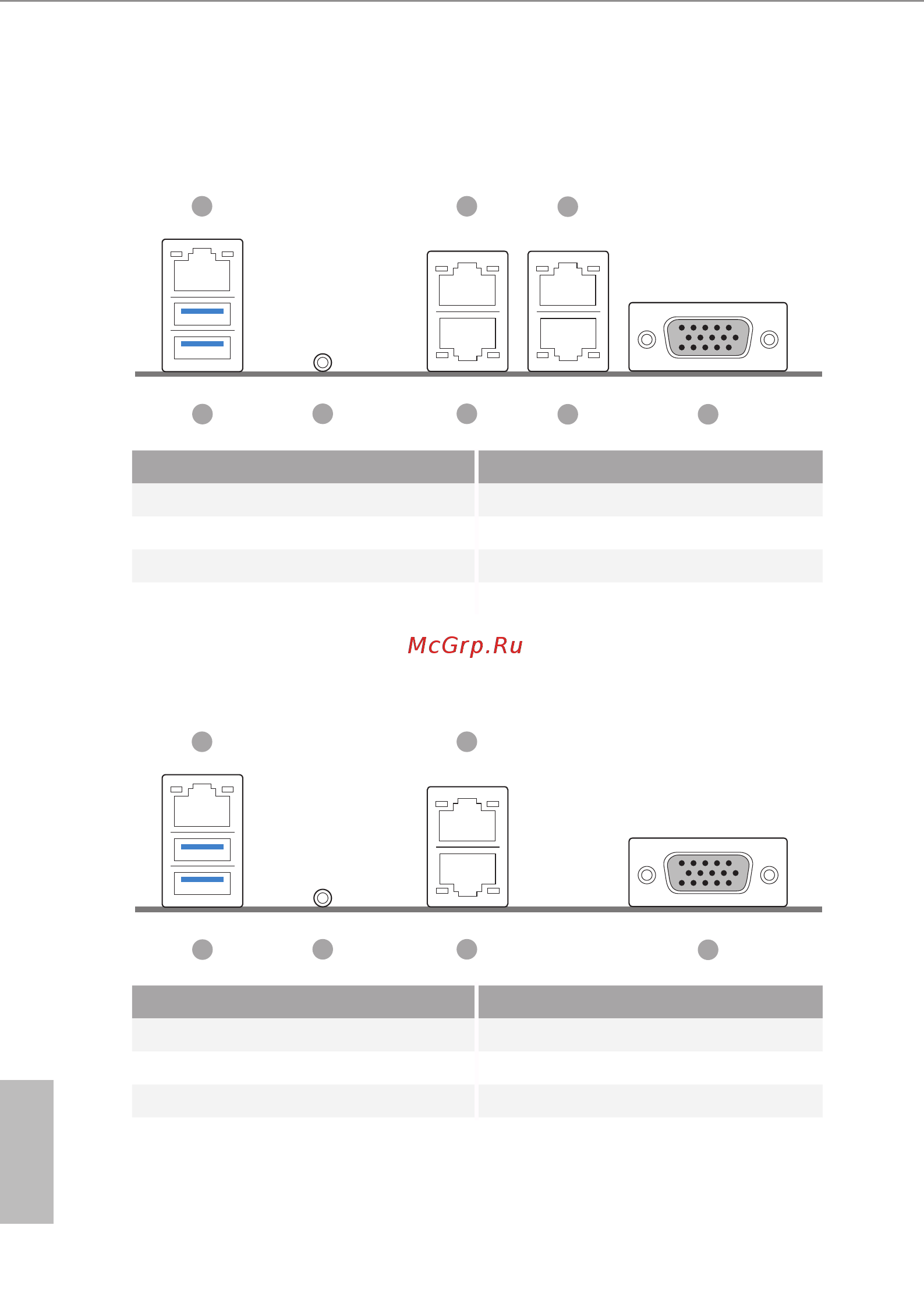

1.6 I/O Panel
D1541D4I-2L2T
2
5
3
6
4
1
7 8
No. Description No. Description
1 Dedicated IPMI LAN Port* 5 LAN RJ-45 Port (LAN1)*
2 USB 3.0 Ports (USB3_12) 6 10G LAN RJ-45 Port (LAN4)**
3 UID Switch/LED (UID_SW_LED1) 7 10G LAN RJ-45 Port (LAN3)**
4 LAN RJ-45 Port (LAN2)* 8 VGA Port (VGA1)
D1541D4I / D1521D4I
2
5
3
4
1
6
No. Description No. Description
1 Dedicated IPMI LAN Port* 4 LAN RJ-45 Port (LAN2)*
2 USB 3.0 Ports (USB3_12) 5 LAN RJ-45 Port (LAN1)*
3 UID Switch/LED (UID_SW_LED1) 6 VGA Port (VGA1)
