D15X1D4I Series
46 47
English
3.3.9 NVMe Conguration

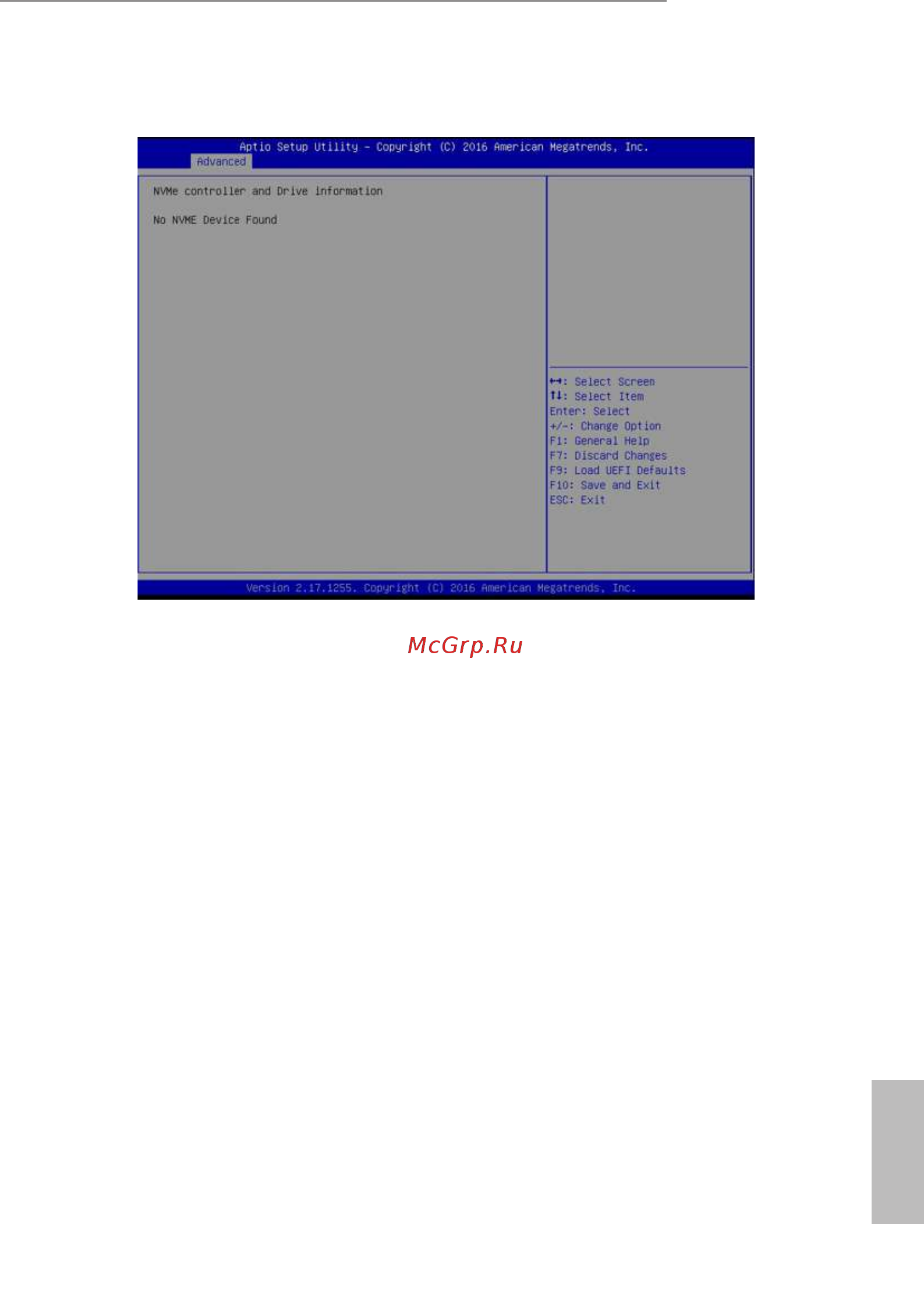

e NVMe Conguration displays the NVMe controller and Drive information.
