D15X1D4I Series
34 35
English
Setting wrong values in this section may cause the system to malfunction.

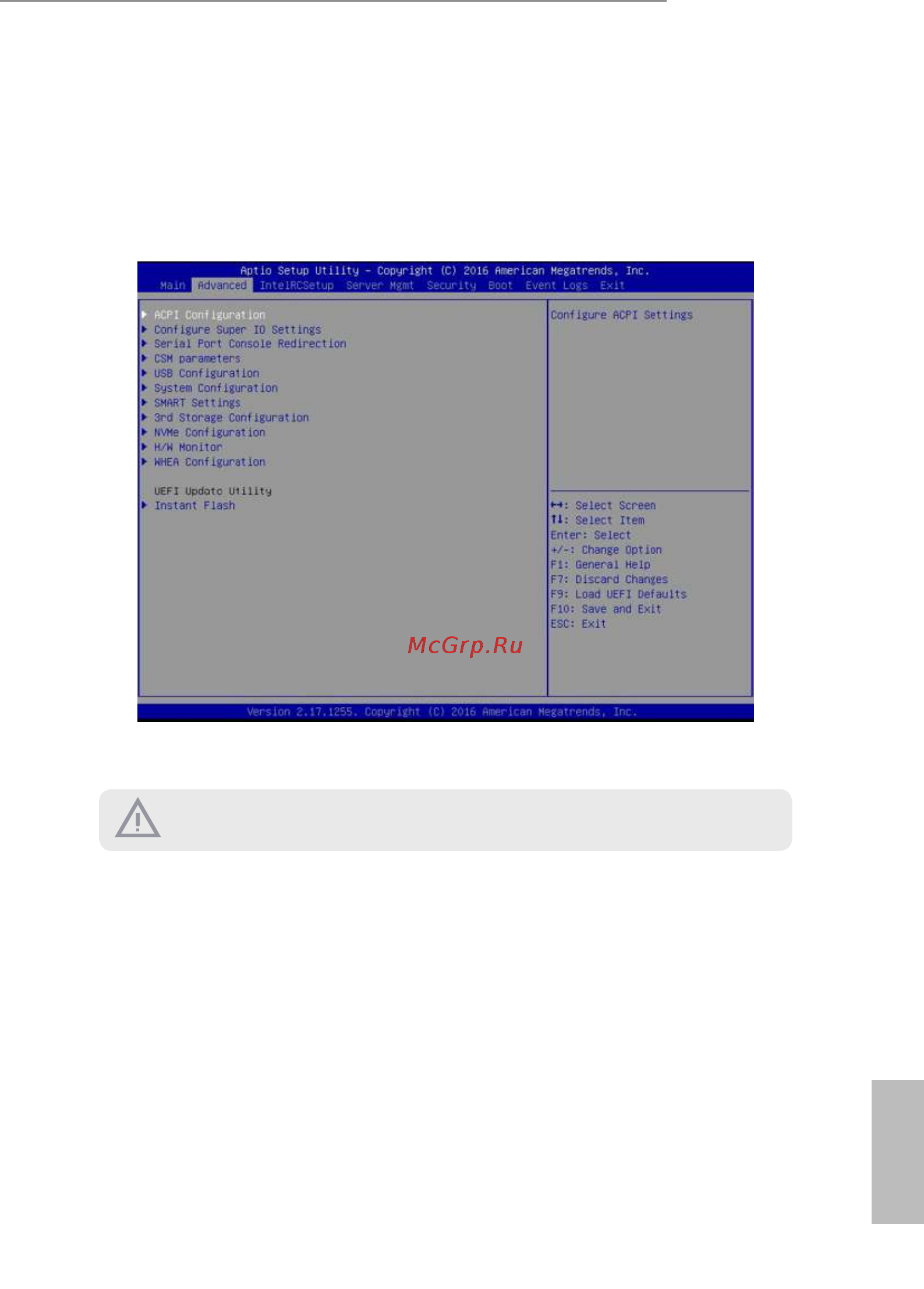

3.3 Advanced Screen
In this section, you may set the congurations for the following items: ACPI Congura-
tion, Congure Super IO Settings, Serial Port Console Redirection, CSM Parameters, USB
Conguration, System Conguration, Hard Disk S.M.A.R.T Settings, 3rd Storage Congu-
ration, NVMe Conguration, H/W Monitor, WHEA Conguration and Instant Flash.
