D15X1D4I Series
40 41
English

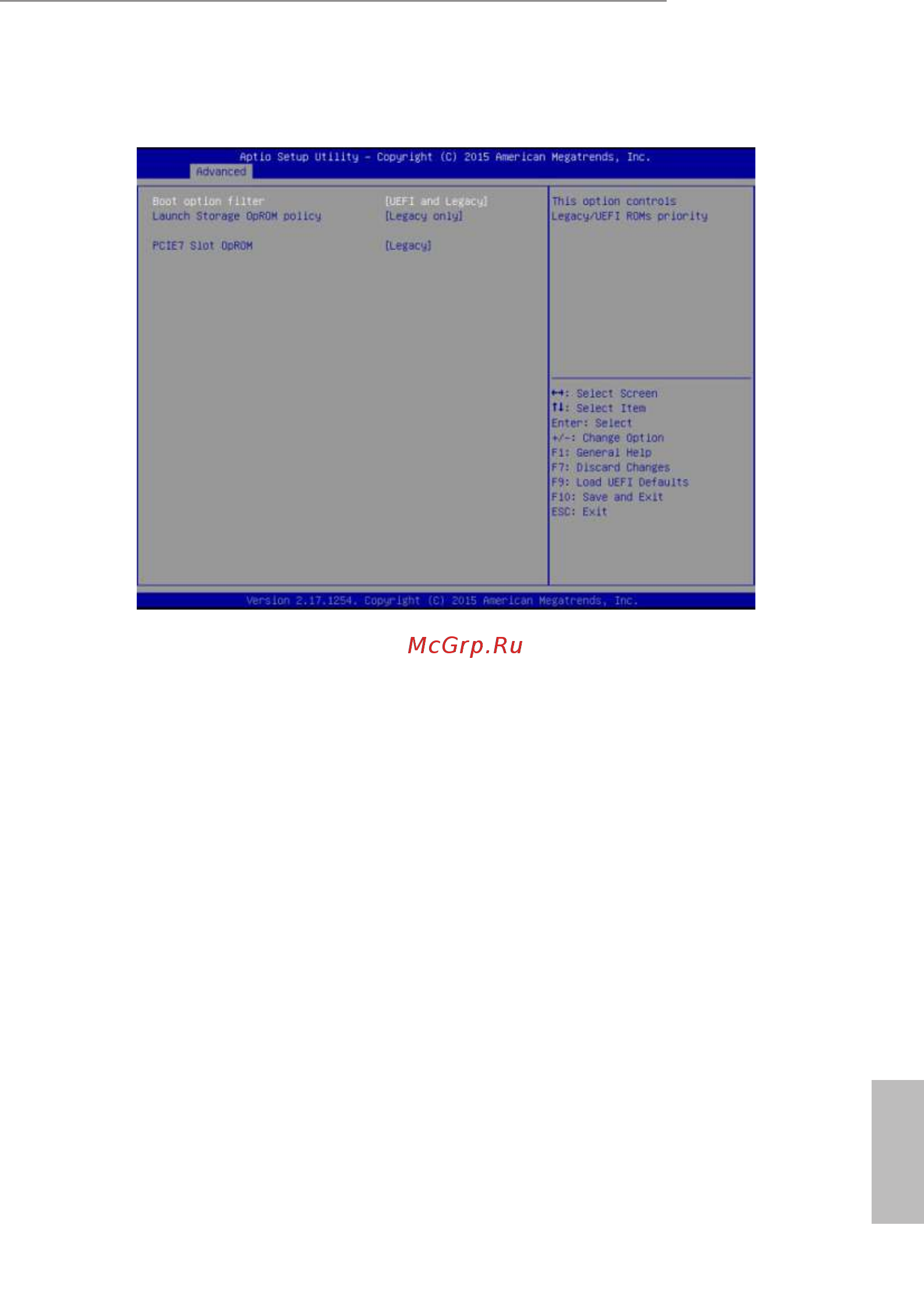

3.3.4 CSM Conguration
Boot Option Filter
is option controls Legacy/UEFI ROMs priority.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only. Select Do not launch to not
execute both legacy and UEFI option ROM.
PCIE7 Slot OpROM
Use this item to select PCIE7 Option ROM policy.
