D15X1D4I Series
12 13
English

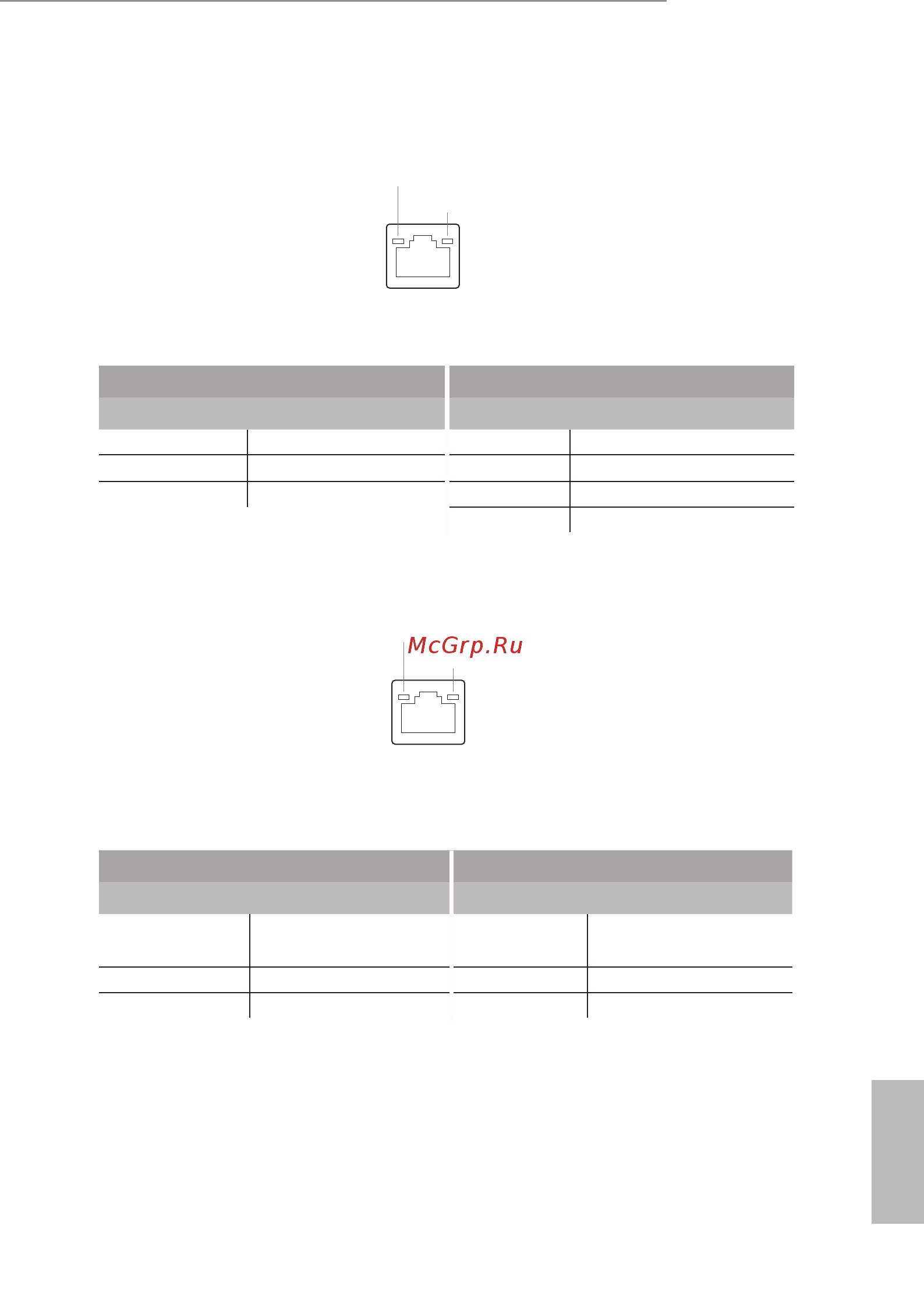

LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI / LAN1 / LAN2 LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O No Link
Blinking Yellow Data Activity O 10M bps connection
On Link Yellow 100M bps connection
Green 1G bps connection
**ere are two LEDs on each LAN port. Please refer to the table below for the LAN port
LED indications.
LAN Port (LAN3, LAN4) LED Indications
10G For D1541D4I-2L2T
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 100Mbps connection or
no link
Blinking Green Data Activity Yellow 1Gbps connection
On Link Green 10Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
ACT/LINK LED
SPEED LED
LAN Port
