ASRock D1541D4I [66/84] Pch configuration
![ASRock D1541D4I [66/84] Pch configuration](/views2/1694224/page66/bg42.png)
60 61
English

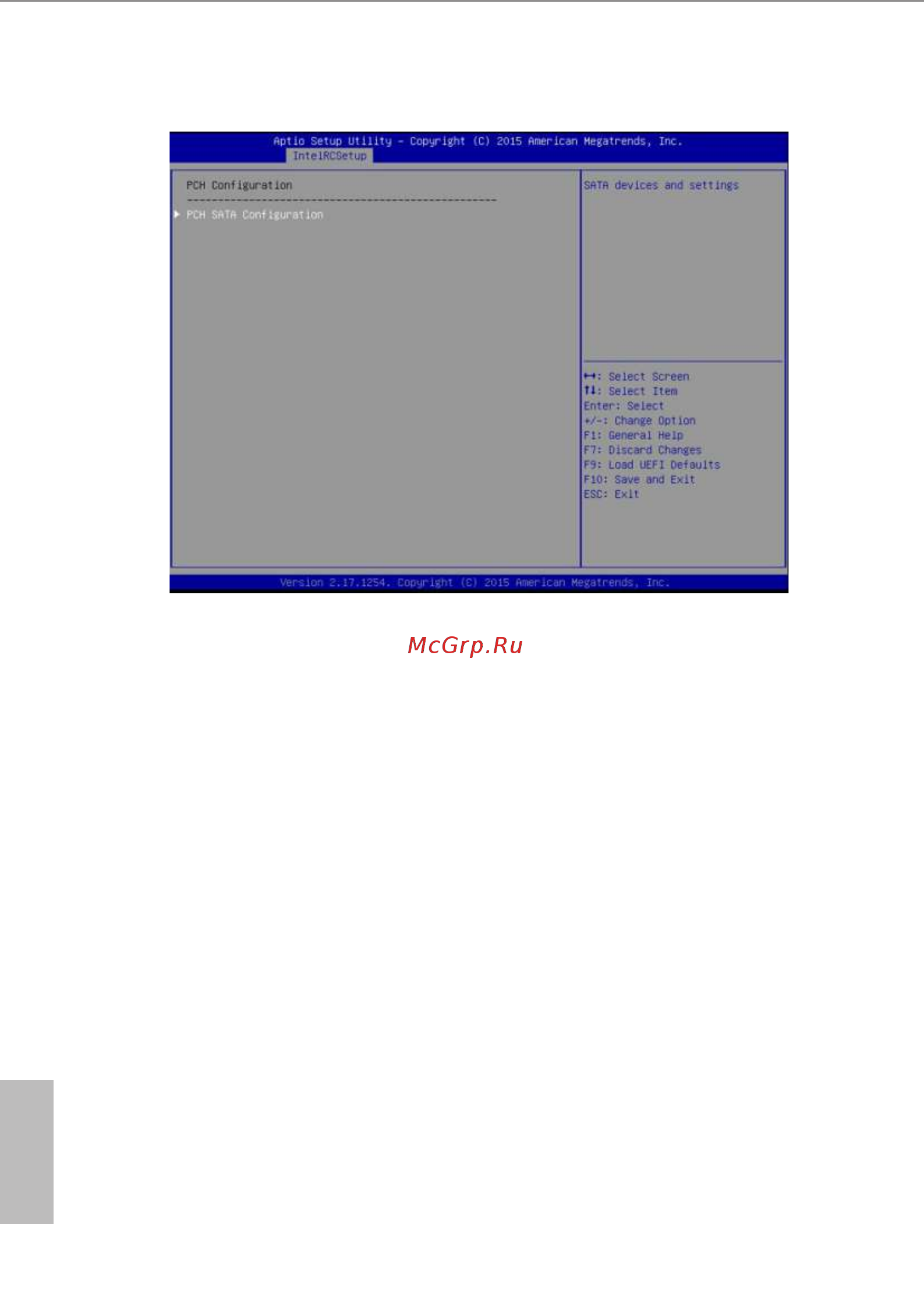

3.4.5 PCH Conguration
PCH SATA Conguration
SATA devices and settings
SATA Controller
Use this item to enable or disable SATA Controller.
SATA Mode Selection
Identify the SATA port is connected to Solid State Drive or Hard Disk Drive.
SATA Aggressive Link Power Mgmt
Use this item to enable or disable SALP.
SATA Port 0 / 1 / 2 / 3 / 4 / 5
Hot Plug
Designates this port as Hot Plugglable.
