D15X1D4I Series
52 53
English

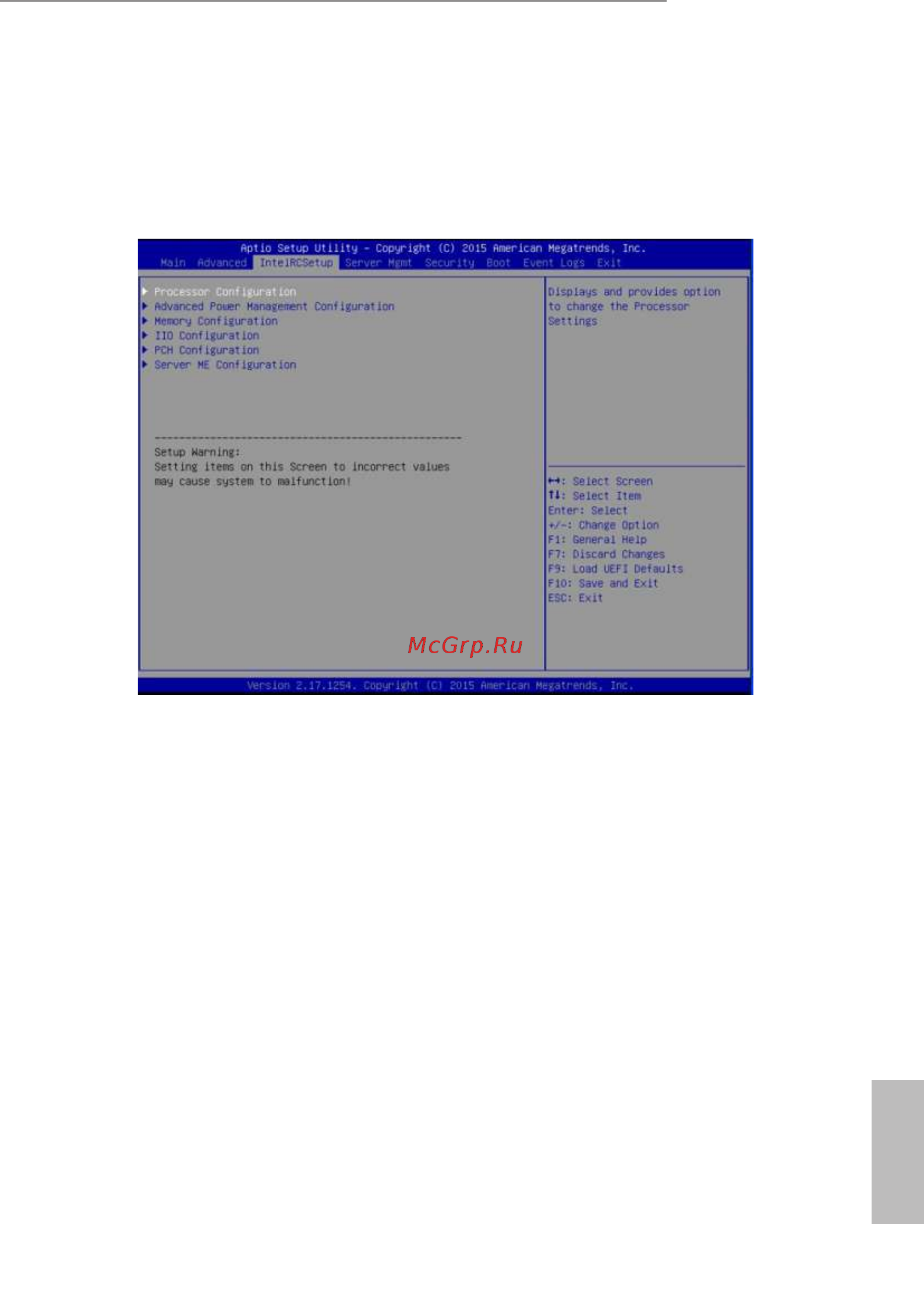

3.4 IntelRCSetup
In this section, you may set the congurations for the following items: Processor Congu-
ration, Advanced Power Management Conguration, Memory Conguration, IIO Con-
guration, PCH Conguration and Server ME Conguration.
