EPYCXXXXD4I-2T / EPYXXXXD4I-NL Series
8 9
English

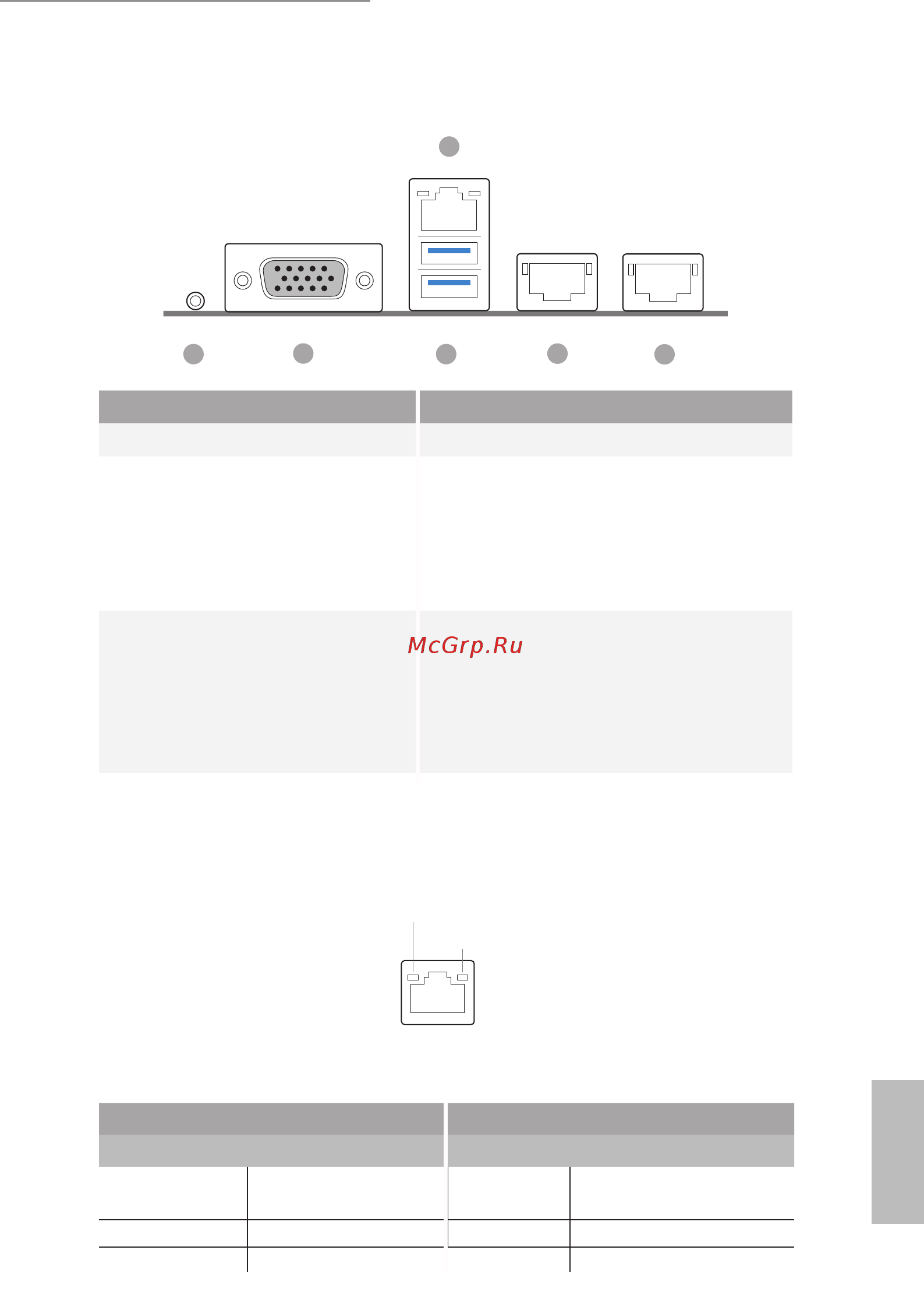

1.6 I/O Panel
2
5
3
1
6
4
No. Description No. Description
1 UID Switch/LED (UID1) 4 Dedicated IPMI LAN Port*
2 VGA Port (VGA1) 5
EPYC3251D4I-2T / EPYC3151D4I-2T /
EPYC3101D4I-2T:
10G LAN RJ-45 Port (LAN1)**
EPYC3251D4I-NL / EPYC3101D4I-NL:
N/A
3 USB 3.2 Gen1 Ports (USB3_1_2) 6
EPYC3251D4I-2T / EPYC3151D4I-2T /
EPYC3101D4I-2T:
10G LAN RJ-45 Port (LAN2)**
EPYC3251D4I-NL / EPYC3101D4I-NL:
N/A
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Yellow Data Activity Yellow 100M bps connection
On Link Green 1G bps connection
ACT/LINK LED
SPEED LED
LAN Port
