ASRock EPYC3101D4I-2T [38/72] Chipset configuration
![ASRock EPYC3101D4I-2T [38/72] Chipset configuration](/views2/1694355/page38/bg26.png)
32 33
English

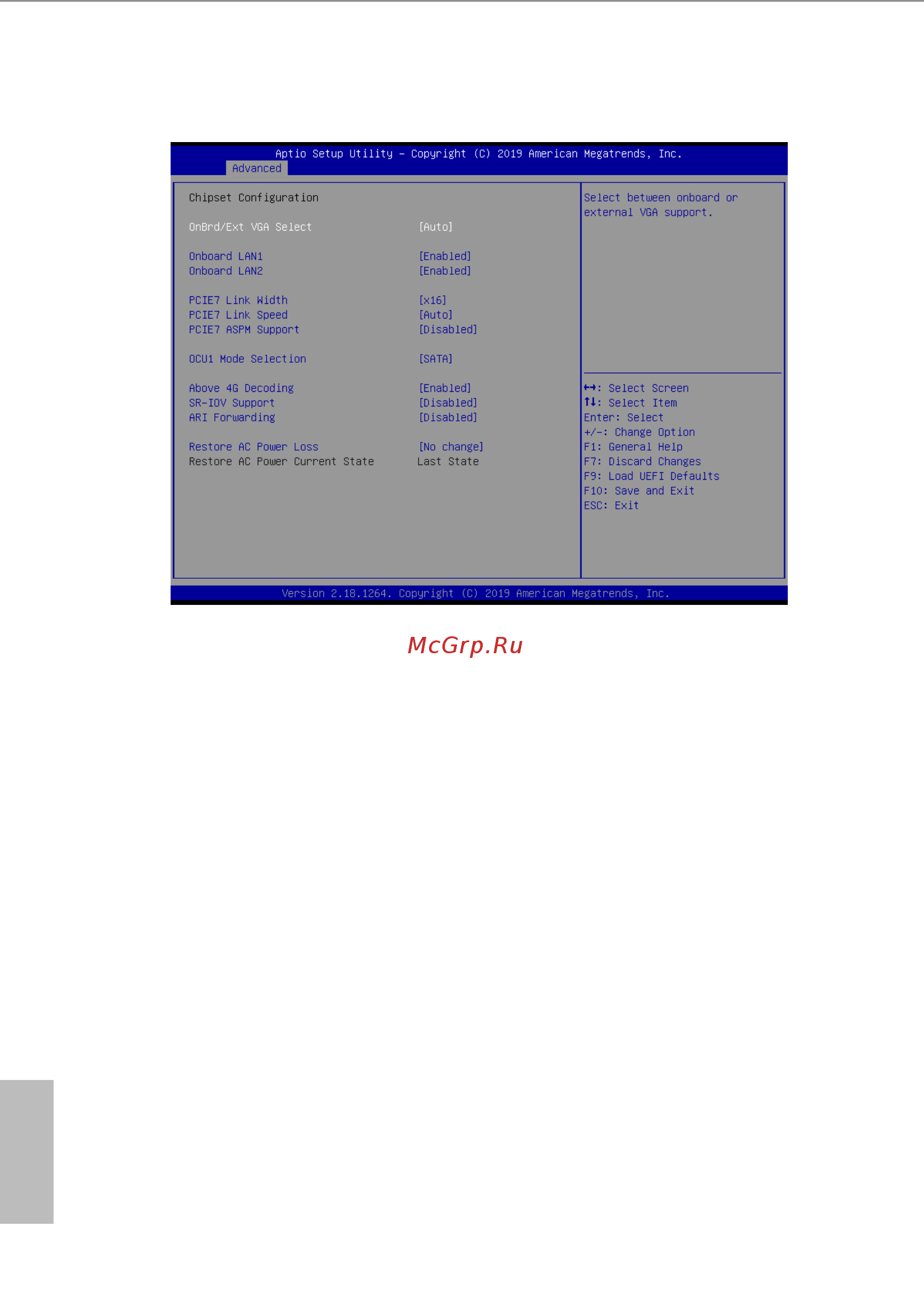

3.3.2 Chipset Conguration
OnBrd/Ext VGA Select
Select between onboard or external VGA support.
Onboard LAN1
To enable or disable Onabord LAN.
Onboard LAN2
To enable or disable Onabord LAN.
PCIE7 Link Width
is allows you to select PCIE7 Link Width. e default value is [Auto].
PCIE7 Link Speed
is allows you to select PCIE7 Link Speed. e default value is [Auto].
PCIE7 ASPM Support
is option enables or disables the ASPM support for all CPU downstream devices.
OCU1 Mode Selection
Switch the OCUlink to PCIE/SATA.
