EPYCXXXXD4I-2T / EPYXXXXD4I-NL Series
44 45
English

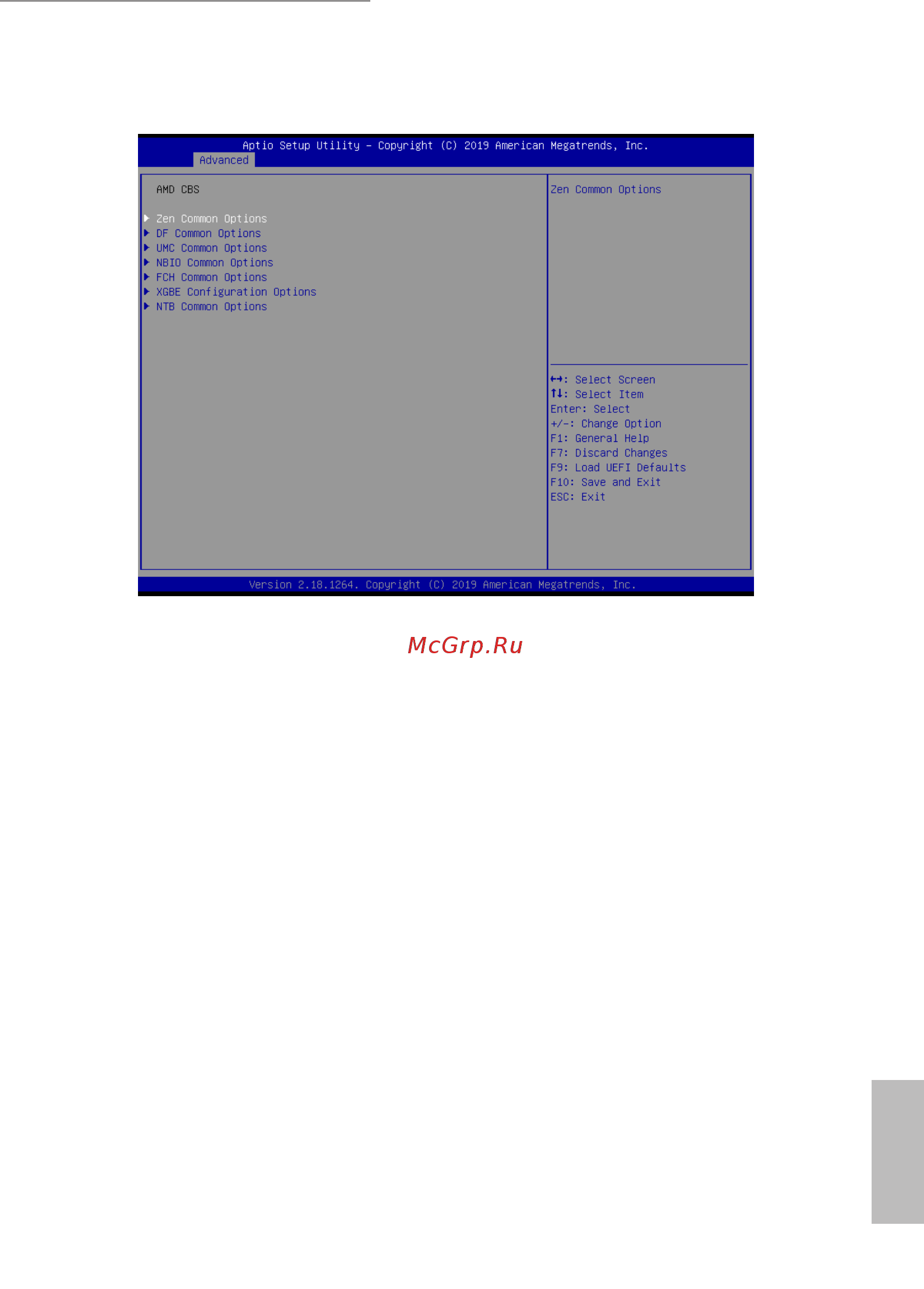

3.3.10 AMD CBS
Zen Common Options
Use this item to congure Zen Common options.
DF Common Options
Use this item to congure DF Common options.
UMC Common Options
Use this item to congure UMC Common options.
NBIO Common Options
Use this item to congure NBIO Common options.
FCH Common Options
Use this item to congure FCH Common options.
XGBE Conguration Options
Use this item to congure XGBE Conguration options.
NTB Common Options
Use this item to congure NTB Common options.
