ASRock EPYC3101D4I-2T [32/72] English
![ASRock EPYC3101D4I-2T [32/72] English](/views2/1694355/page32/bg20.png)
26 27
English
BA

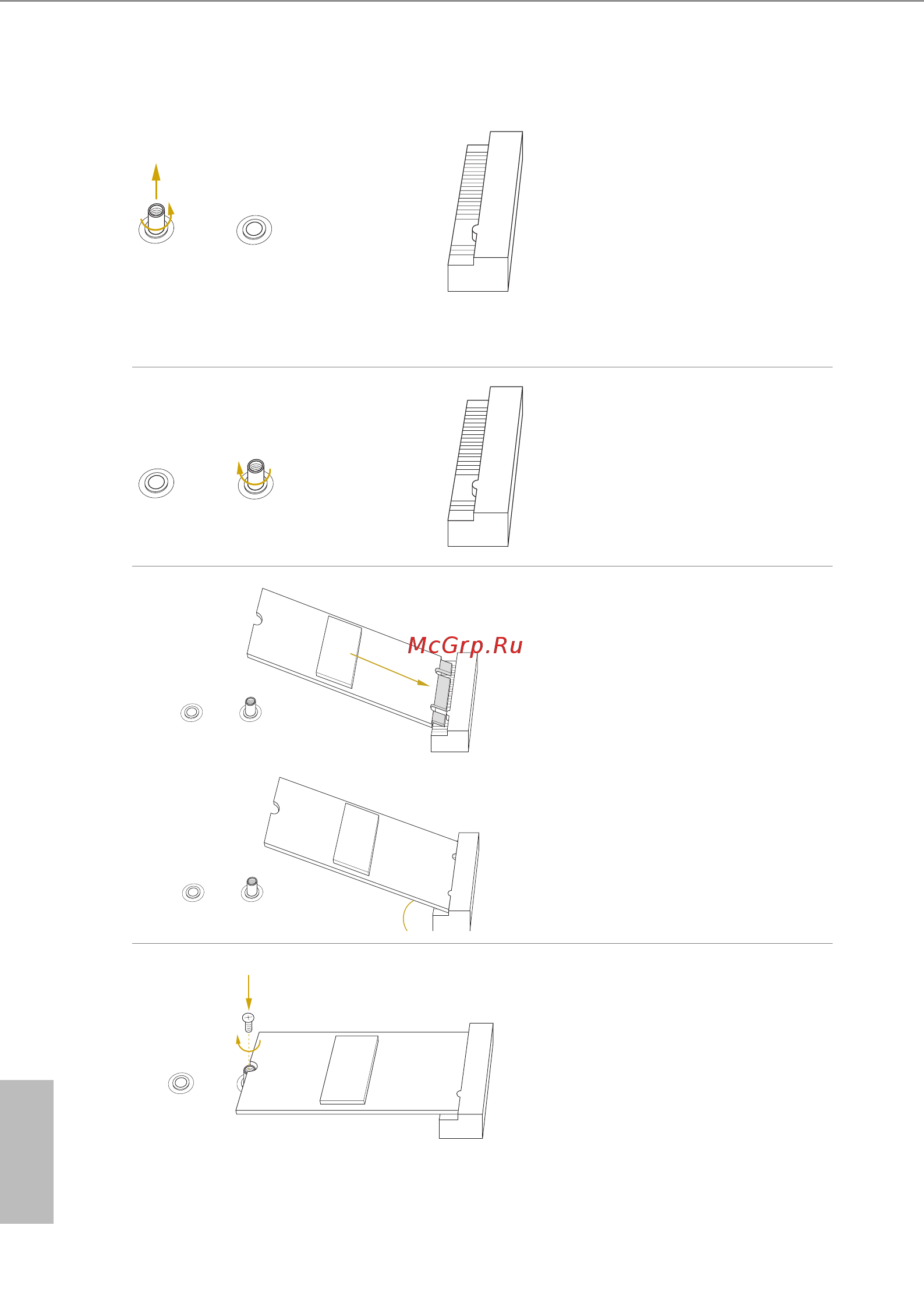

Step 3
Move the stando based on the
module type and length.
Skip Step 3 and 4 and go straight
to Step 5 if you are going to use the
default nut.
Otherwise, release the stando by
hand.
BA
Step 4
Peel o the yellow protective lm on
the nut to be used. Hand tighten the
stando into the desired nut location
on the motherboard.
BA
BA
20
o
Step 5
Align and gently insert the M.2
(NGFF) SSD module into the M.2
slot. Please be aware that the M.2
(NGFF) SSD module only ts in one
orientation.
NUT1NUT2A
Step 6
Tighten the screw with a screwdriver
to secure the module into place.
Please do not overtighten the screw as
this might damage the module.
