ASRock EPYC3101D4I-2T [36/72] Advanced screen
![ASRock EPYC3101D4I-2T [36/72] Advanced screen](/views2/1694355/page36/bg24.png)
30 31
English
Setting wrong values in this section may cause the system to malfunction.

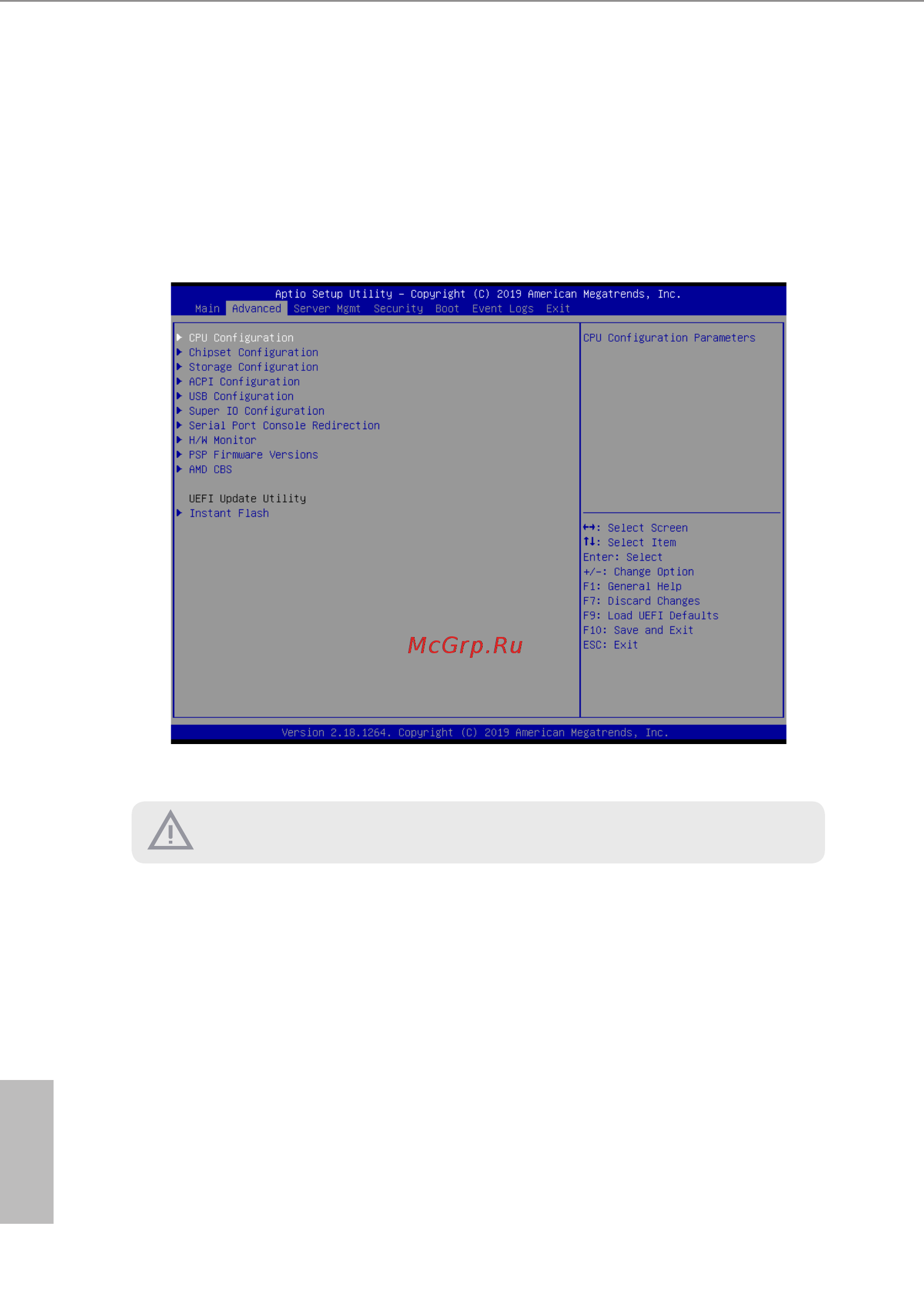

3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
Chipset Conguration, Storage Conguration, ACPI Conguration, USB Conguration,
Super IO Conguration, Serial Port Console Redirection, H/W Monitor, PSP Firmware
Versions, AMD CBS and Instant Flash.
