ASRock EPYC3101D4I-2T [44/72] Serial port console redirection
![ASRock EPYC3101D4I-2T [44/72] Serial port console redirection](/views2/1694355/page44/bg2c.png)
38 39
English

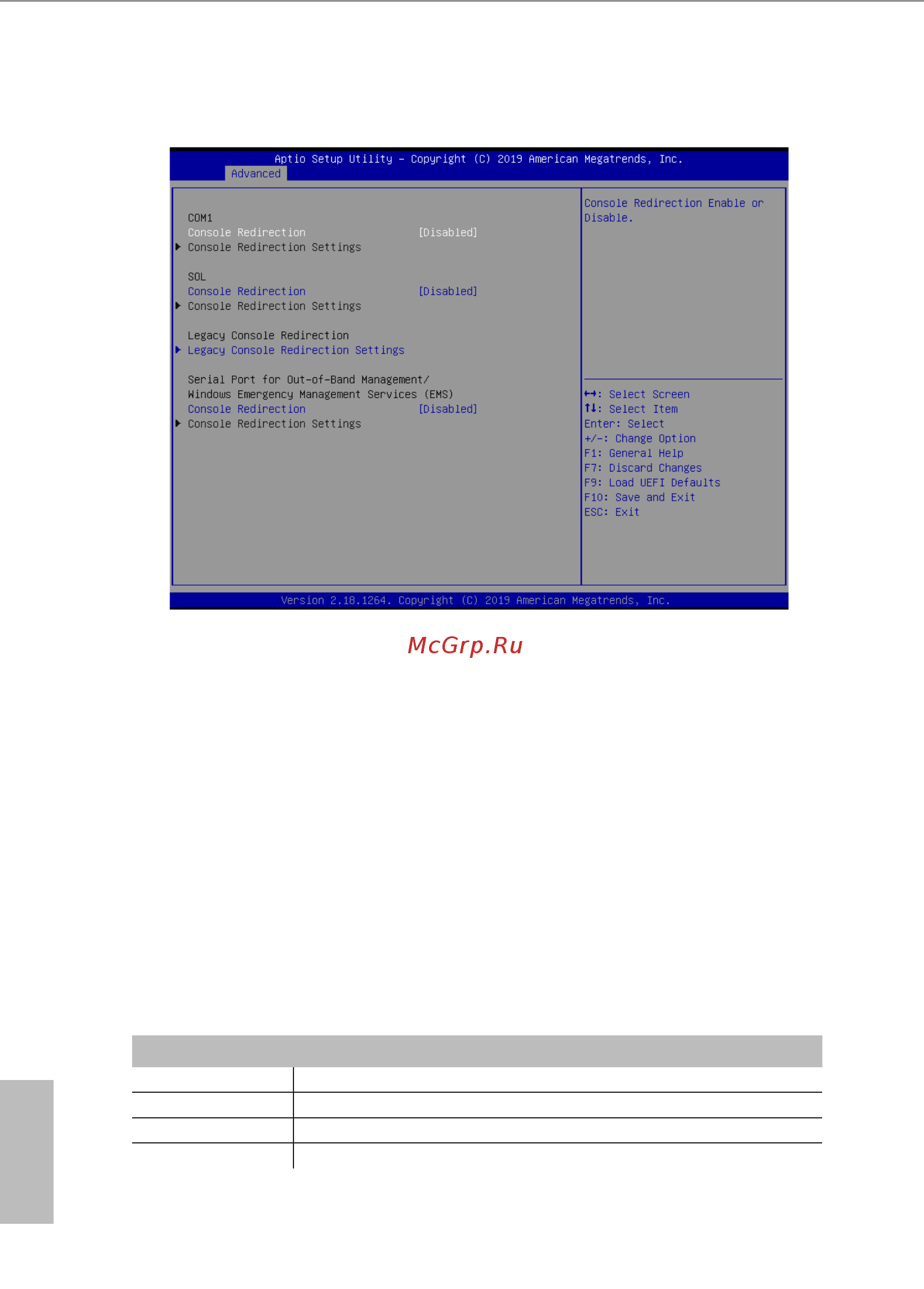

3.3.7 Serial Port Console Redirection
COM1 / SOL
Console Redirection
Use this option to enable or disable Console Redirection. If this item is set to Enabled, you
can select a COM Port to be used for Console Redirection.
Console Redirection Settings
Use this option to congure Console Redirection Settings, and specify how your computer
and the host computer to which you are connected exchange information.
Terminal Type
Use this item to select the preferred terminal emulation type for out-of-band management.
It is recommended to select [VT-UTF8].
Option Description
VT100 ASCII character set
VT100+ Extended VT100 that supports color and function keys
VT-U TF8 UTF8 encoding is used to map Unicode chars onto 1 or more bytes
ANSI Extended ASCII character set
