WC422D8A-2T / WC422D8A-2T/U
14 15
English

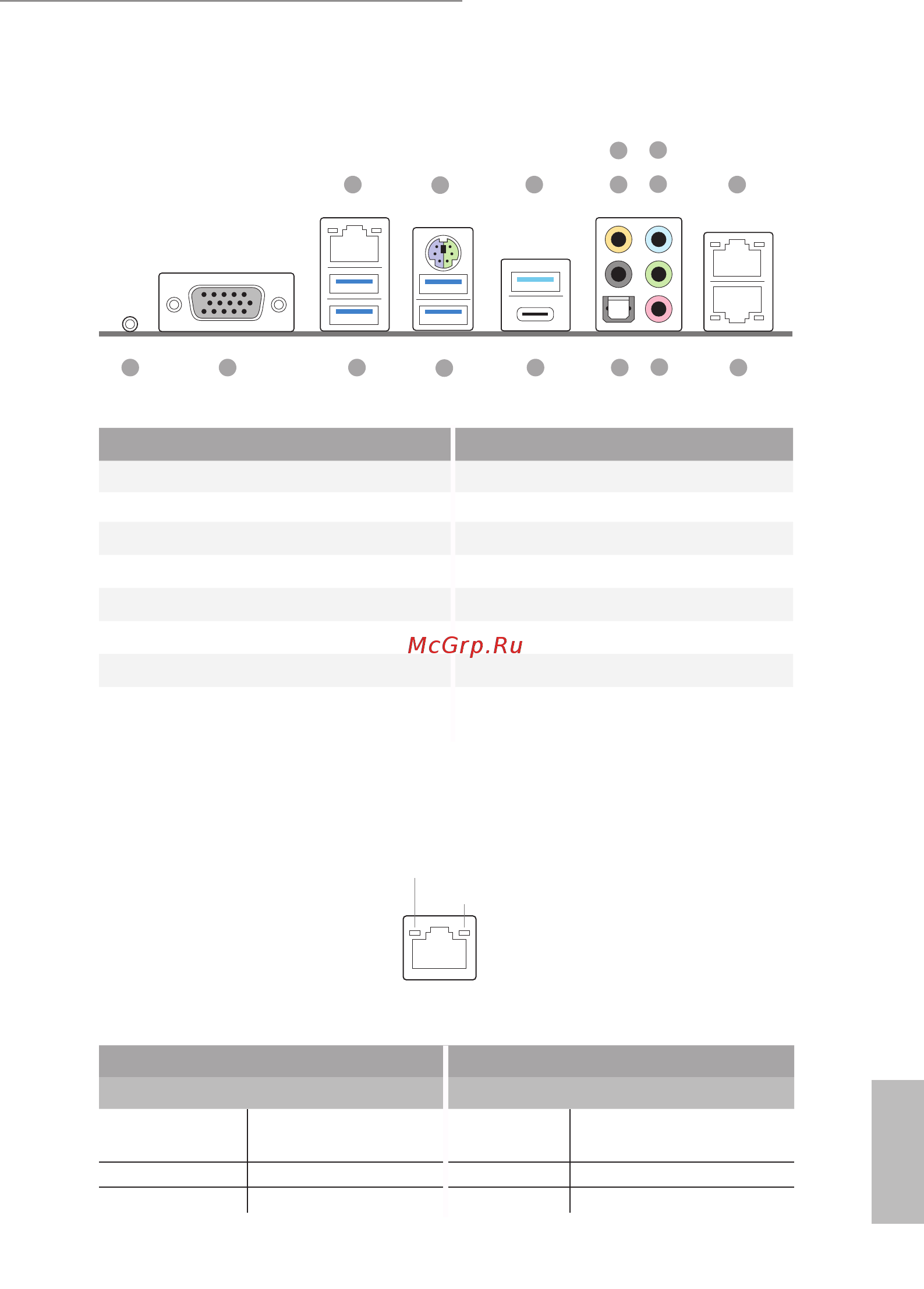

1.6 I/O Panel
No. Description No. Description
1 UID Button (UID1) 9 Central / Bass (Orange)
2 VGA Port (VGA1) 10 Rear Speaker (Black)
3 LAN RJ-45 Port (IPMI_LAN)* 11 Optical SPDIF Out Port
4 USB 3.0 Ports (USB3_1_2) 12 Line In (Light Blue)
5 PS/2 Mouse/Keyboard Port 13 Front Speaker (Lime)***
6 USB 3.0 Ports (USB3_3_4) 14 Microphone (Pink)
7 USB 3.1 Type-A Port (USB31_TA_1) 15 10G LAN RJ-45 Port (LAN2)**
8 USB 3.1 Type-C Port (USB31_TC_1) 16 10G LAN RJ-45 Port (LAN1)**
LAN Port LED Indications
*ere are two LED next to the LAN port. Please refer to the table below for the LAN port
LED indications.
Dedicated IPMI LAN Port LED Indications
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10M bps connection or no
link
Blinking Orange Data Activity Amber 100M bps connection
On Link Green 1Gbps connection
1 4
2
3
15
16
10
9
11
13
12
14
6
5
7
8
ACT/LINK LED
SPEED LED
LAN Port
