WC422D8A-2T / WC422D8A-2T/U
66 67
English

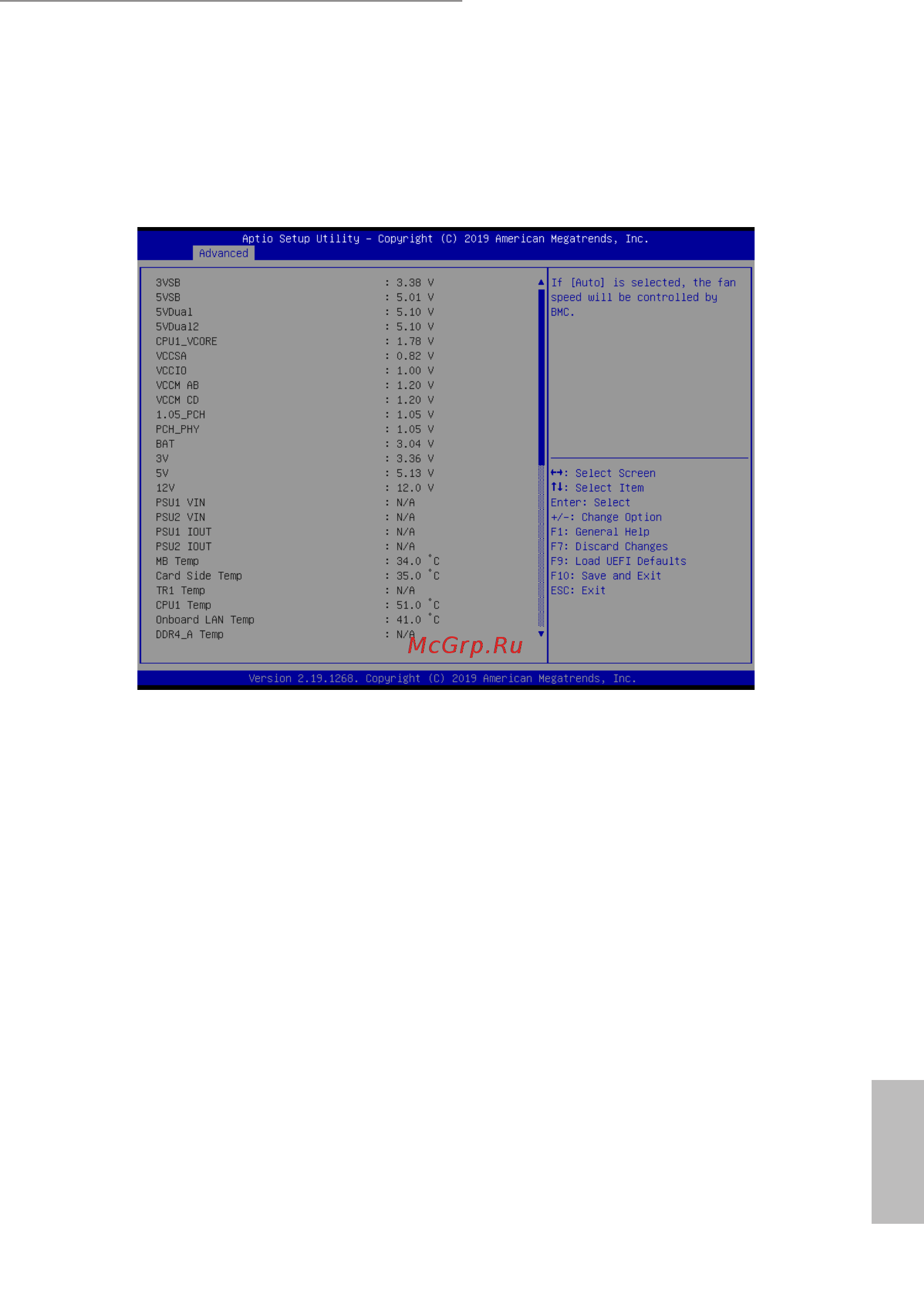

3.3.7 H/W Monitor
In this section, it allows you to monitor the status of the hardware on your system, includ-
ing the parameters of the CPU temperature, motherboard temperature, CPU fan speed,
chassis fan speed, and the critical voltage.
Fan Control
If [Auto] is selected, the fan speed will controlled by BMC.
If [Manual] is selected, congure the items below.
CPU1_FAN1
is allows you to set the CPU fan1’s speed. e default value is [Smart Fan].
FRNT_FAN1
is allows you to set the front fan 1’s speed. e default value is [Smart Fan].
FRNT_FAN2
is allows you to set the front fan 2’s speed. e default value is [Smart Fan].
FRNT_FAN3
is allows you to set the front fan 3’s speed. e default value is [Smart Fan].
FRNT_FAN4
is allows you to set the front fan 4’s speed. e default value is [Smart Fan].
