54 55
English
Setting wrong values in this section may cause the system to malfunction.

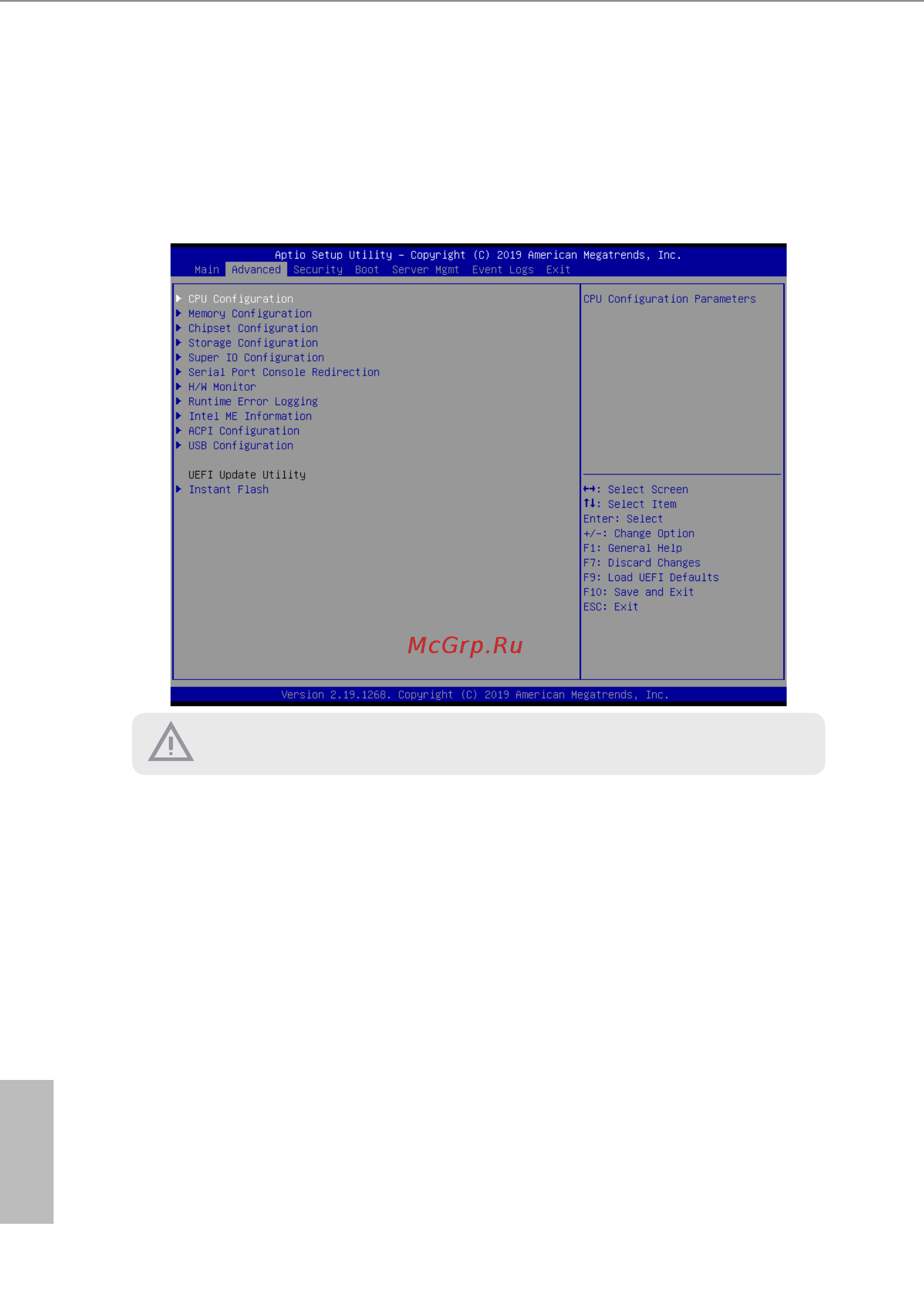

3.3 Advanced Screen
In this section, you may set the congurations for the following items: CPU Conguration,
Memory Conguration, Chipset Conguration, Storage Conguration, Super IO Congu-
ration, Serial Port Console Redirection, H/W Monitor, Runtime Error Logging, Intel ME
Information, ACPI Conguration, USB Conguration and Instant Flash.
