WC422D8A-2T / WC422D8A-2T/U
82 83
English

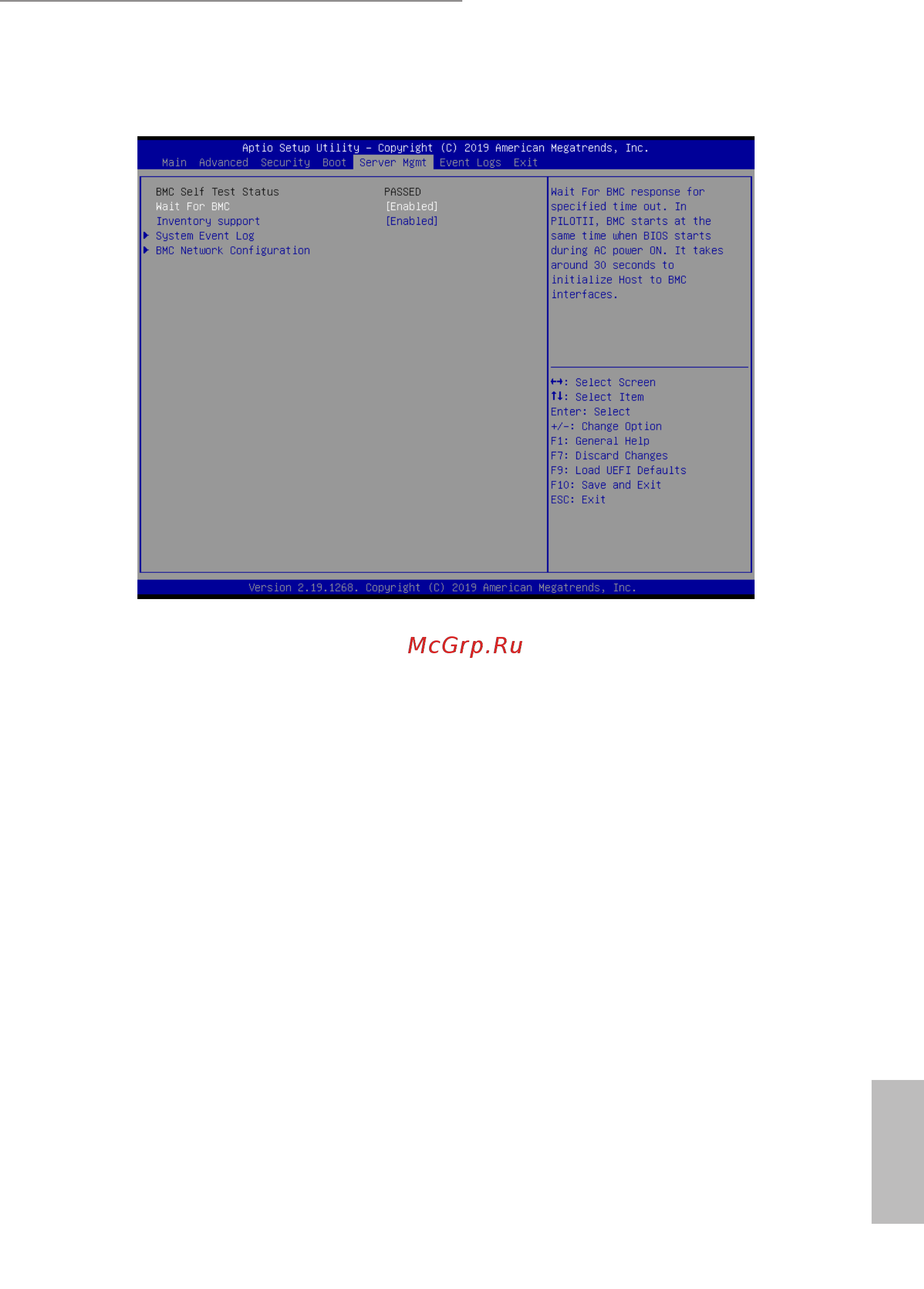

3.6 Server Mgmt
Wait For BMC
Wait For BMC response for specied time out. In PILOTII, BMC starts at the same time
when BIOS starts during AC power ON. It takes around 30 seconds to initialize Host to
BMC interfaces.
Inventory support
Use this item to execute inventory function for system. It will take more time at system
boot when it is enabled.
