WC422D8A-2T / WC422D8A-2T/U
70 71
English

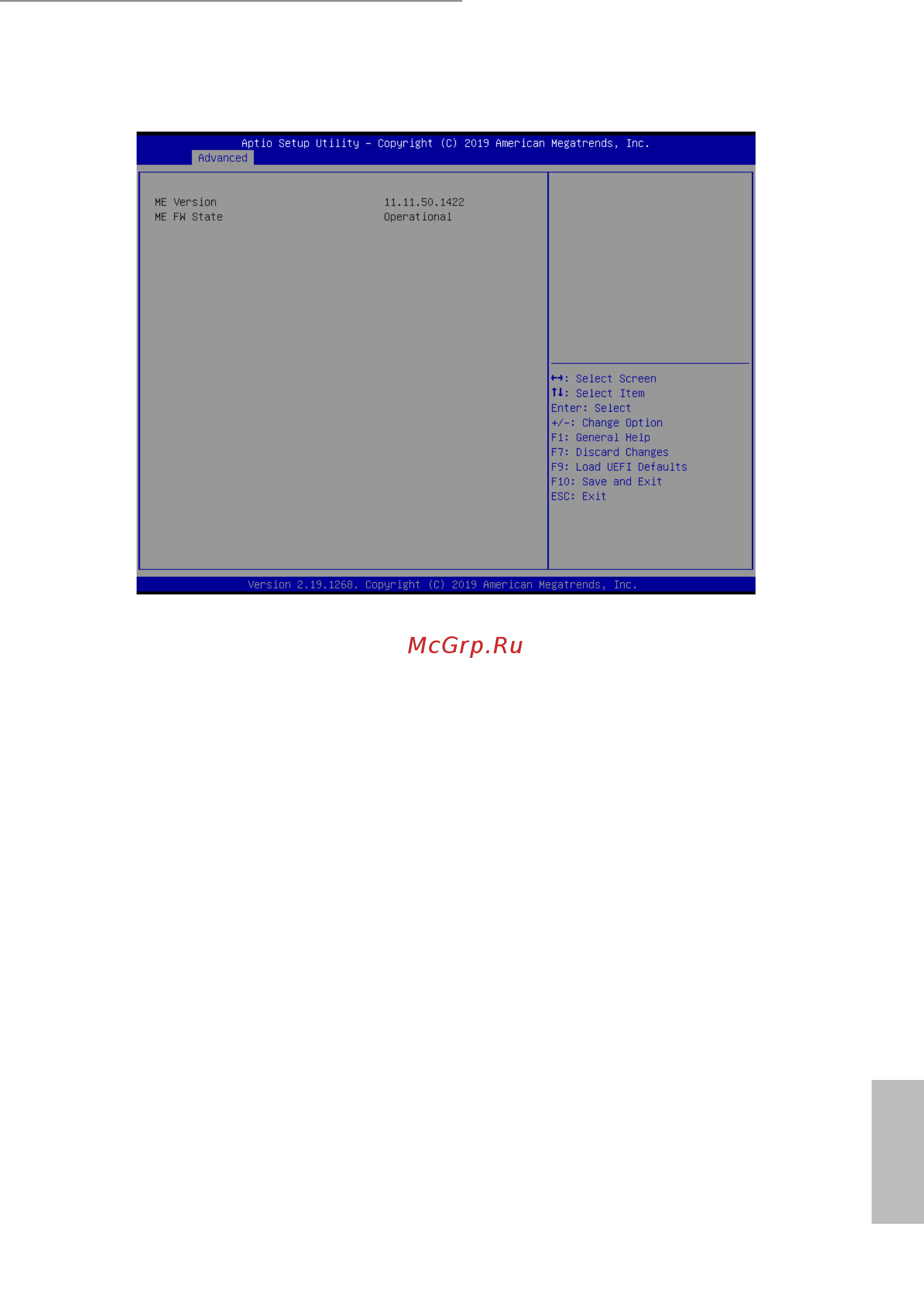

3.3.9 Intel ME Conguration
Intel ME Conguration screen displays the Intel ME Conguration information, such as
Operational Firmware Version and Firmware State.
