ASRock WC422D8A-2T [38/99] English
![ASRock WC422D8A-2T [38/99] English](/views2/1694713/page38/bg26.png)
32 33
English

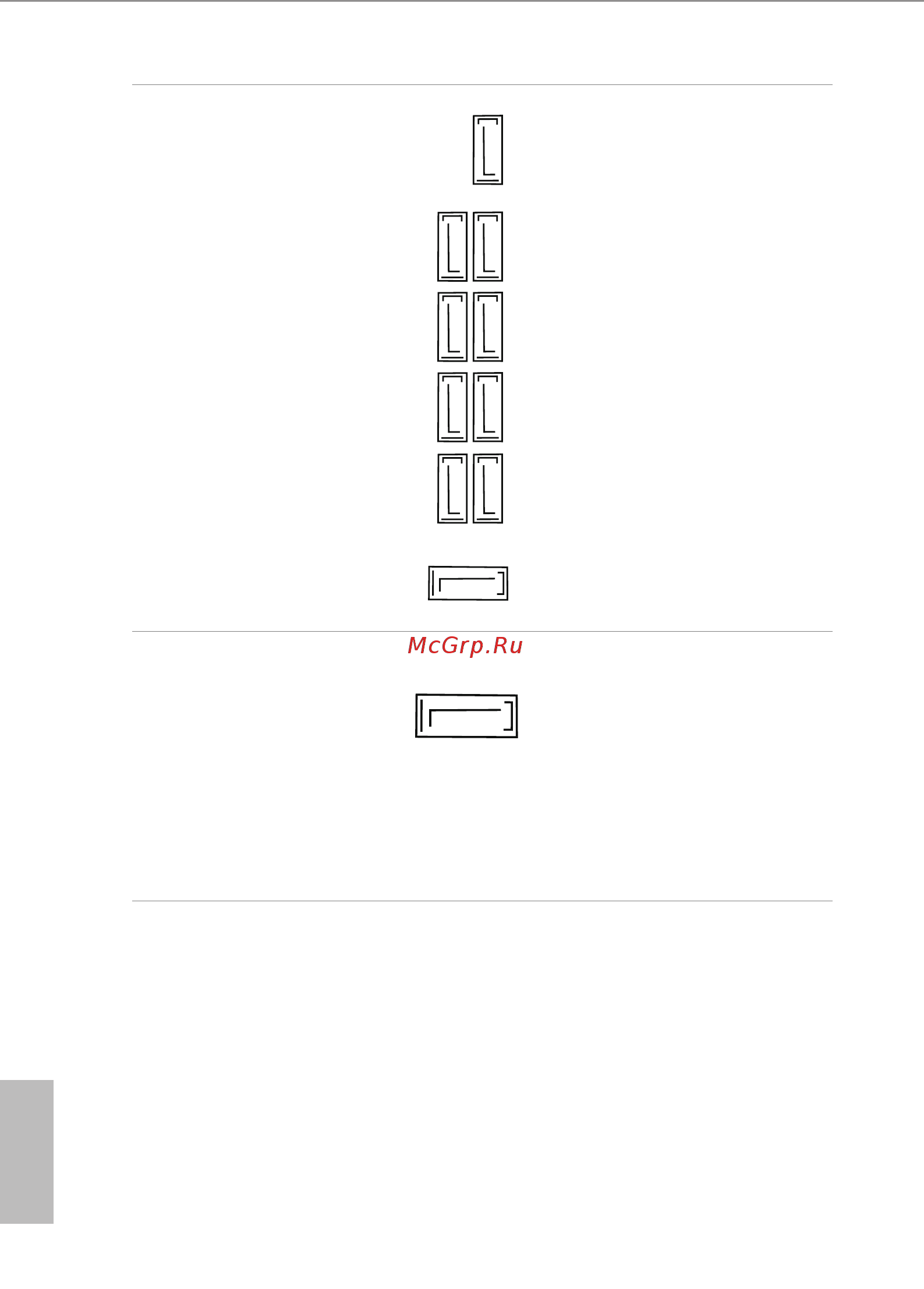

Serial ATA3 Connectors
(SATA_0)
(SATA_1)
(SATA_2)
(SATA_3)
(SATA_4)
(SATA_5)
(SATA_6)
(SATA_7)
(M_SATA_0)
(M_SATA_1)
SA TA_4
SA TA_5
SA TA_2
SA TA_3
SA T
A_ 0
SA TA_1
M_ SA TA_0
M_ SA TA_1
SATA_7
SA TA_6
These ten SATA3 connectors
support SATA data cables for
internal storage devices with
up to 6.0 Gb/s data transfer
rate.
*By default, USB3_7 supports a USB
2.0 device and both M_SATA_0 and
M_SATA_1 are enabled.
*To enable USB3_7 to support a
USB 3.0 device, please go to the BIOS
Settings: BIOS Menu > Advanced >
USB Conguration > USB3_7 Select.
If USB3_7 supports a USB 3.0 device,
M_SATA_0 and M_SATA_1 are
disabled.
Serial ATA3 DOM
Connector
(SATA_7)
SATA_7
e SATA3 DOM
connector supports
both a SATA DOM
(Disk-On-Module) and
a SATA data cable for
internal storage device.
* If M2_1 is occupied by a SATA-type
M.2 device, SATA_7 will be disabled.
