WC422D8A-2T / WC422D8A-2T/U
34 35
English

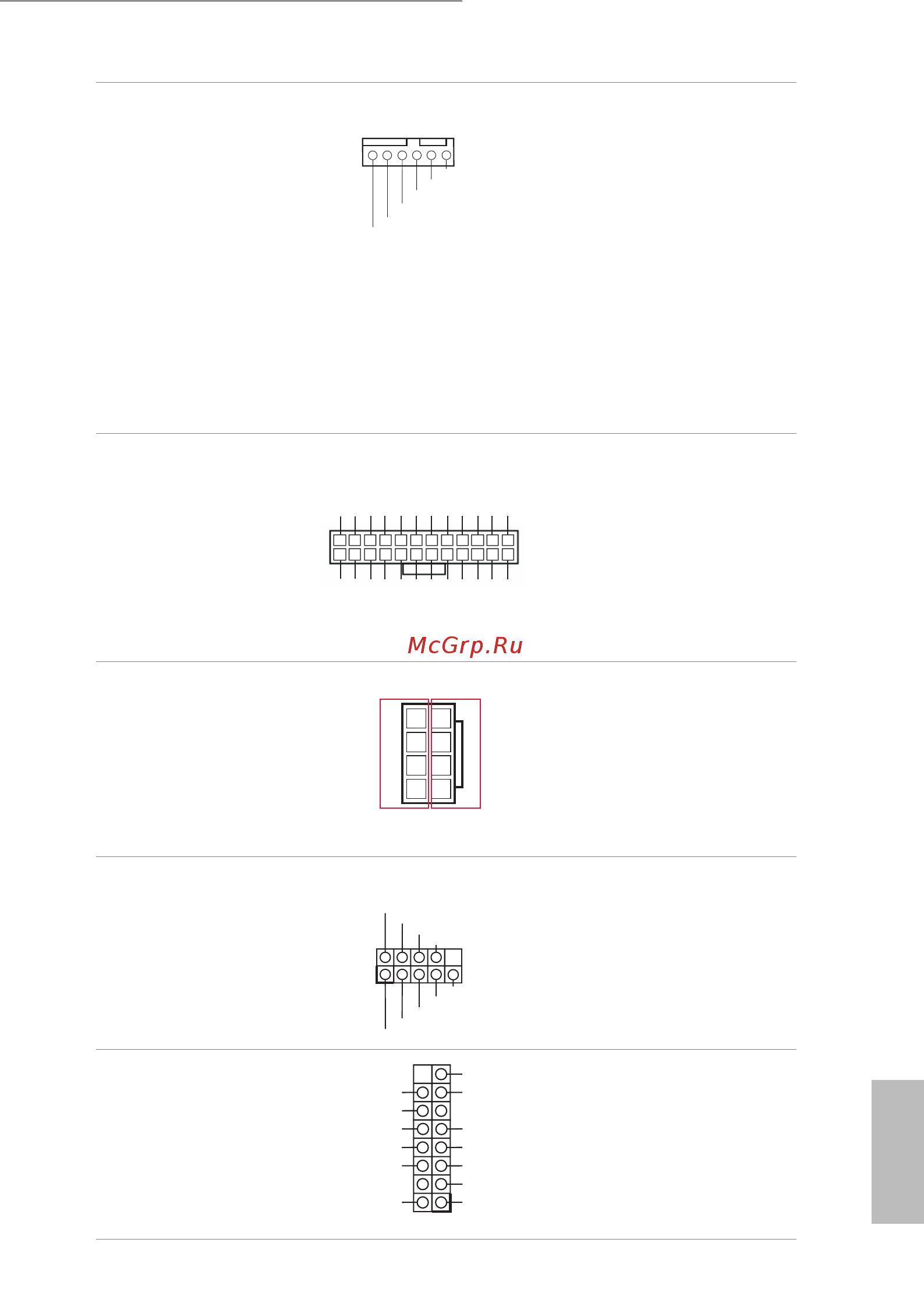

Front Fan Connectors
(6-pin FRNT_FAN1)
(6-pin FRNT_FAN2)
(6-pin FRNT_FAN3)
(6-pin FRNT_FAN4)
(6-pin FRNT_FAN5)
FAN_SPEED
FAN_SPEED_CONTROL
FAN_VOLTAGE
GND
65 4321
SENSOR
NC
Please connect fan cables to the
fan connectors and match the
black wire to the ground pin.
All fans support Fan Control.
ATX Power Connector
(24-pin ATX PWR1)
3V
3V
GND
GND
5V
5V
GND
PWROK_PS
5VSB
12V
12V
3V
121
13
24
3V
-12V
GND
PSON#
GND
GND
GND
5V
5V
5V
GND
N/A
is motherboard provides a
24-pin ATX power connector.
To use a 20-pin ATX power
supply, please plug it along Pin
1 and Pin 13.
ATX 12V Power
Connector
(8-pin ATX12V1)
4
8
1
5
12V
GND
is motherboard provides
one 8-pin ATX 12V power
connector.
Serial Port Header
(9-pin COM1)
CCTS#1
RRTS#1
DDSR#1
DDTR#1
RRXD1
GND
TTXD1
DDCD#1
1
RRI#1
is COM1 header
supports a serial port
module.
Front VGA Header
(15-pin FRNT_VGA1)
1
GND
Green
DDC_DATA
V_SYNC
Red
DDC_CLK
GN
D
+5V
H_SYNC
GND
GND
GND
Blue
Please connect either end
of VGA_2X8 cable to VGA
header.
