WC422D8A-2T / WC422D8A-2T/U
38 39
English
Pin Denition Pin Denition
1 N/A 3 GND
2 N/A 4 GND
A1 N/A B1 N/A
A2 GND B2 GND
A3 OCU#_RX_DP0 B3 OCU_TX_DP0
A4 OCU#_RX_DN0 B4 OCU_TX_DN0
A5 GND B5 GND
A6 OCU#_RX_DP1 B6 OCU_TX_DP1
A7 OCU#_RX_DN1 B7 OCU_TX_DN1
A8 GND B8 GND
A9 GPP_A19 B9 PCH_OCU1_SCL
A10 WA KE # B10 PCH_OCU1_SDA
A11 GND B11 GND
A12 CLK_OCU_1 B12 OCU#_PERST_BUF_N
A13 CLK_OCU_1# B13 OCU#_B13_PRSNT_N
A14 GND B14 GND
A15 OCU#_RX_DP2 B15 OCU_TX_DP2
A16 OCU#_RX_DN2 B16 OCU_TX_DN2
A17 GND B17 GND
A18 OCU#_RX_DP3 B18 OCU_TX_DP3
A19 OCU#_RX_DN3 B19 OCU_TX_DN3
A20 GND B20 GND
A21 N/A B21 N/A
OCU#

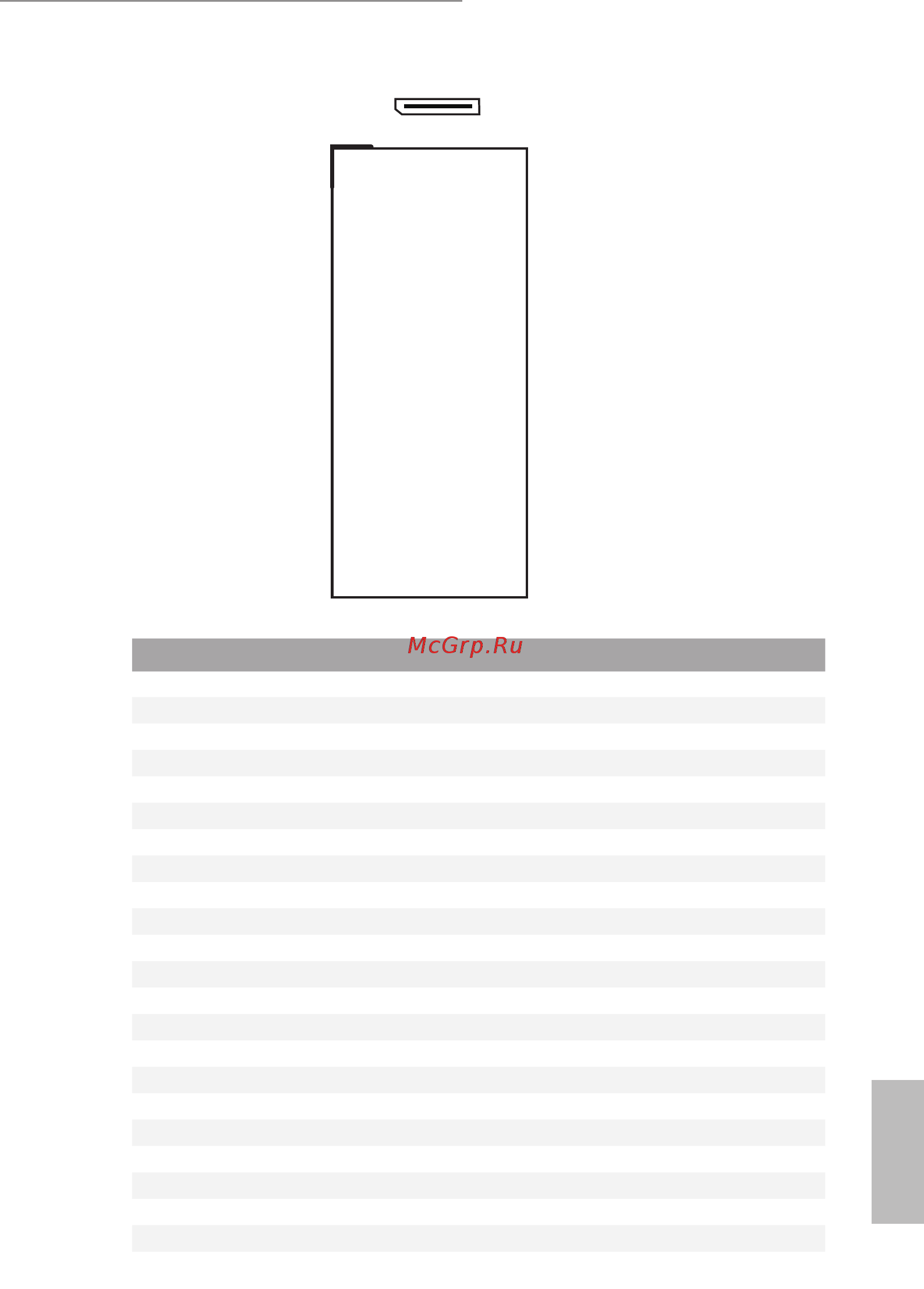

OCuLink Connectors
(OCU1)
(OCU2)
WC422D8A-2T/U only:
(OCU3)
(OCU4)
Please connect a PCIE SSD to
this connector.
A21
A20
A19
A18
A17
A16
A15
A14
A13
A12
A11
A10
A9
A8
A7
A6
A5
A4
A3
A2
A1
95
1
2
93
104
B21
B20
B19
B18
B17
B16
B15
B14
B13
B12
B11
B10
B9
B8
B7
B6
B5
B4
B3
B2
B1
95
