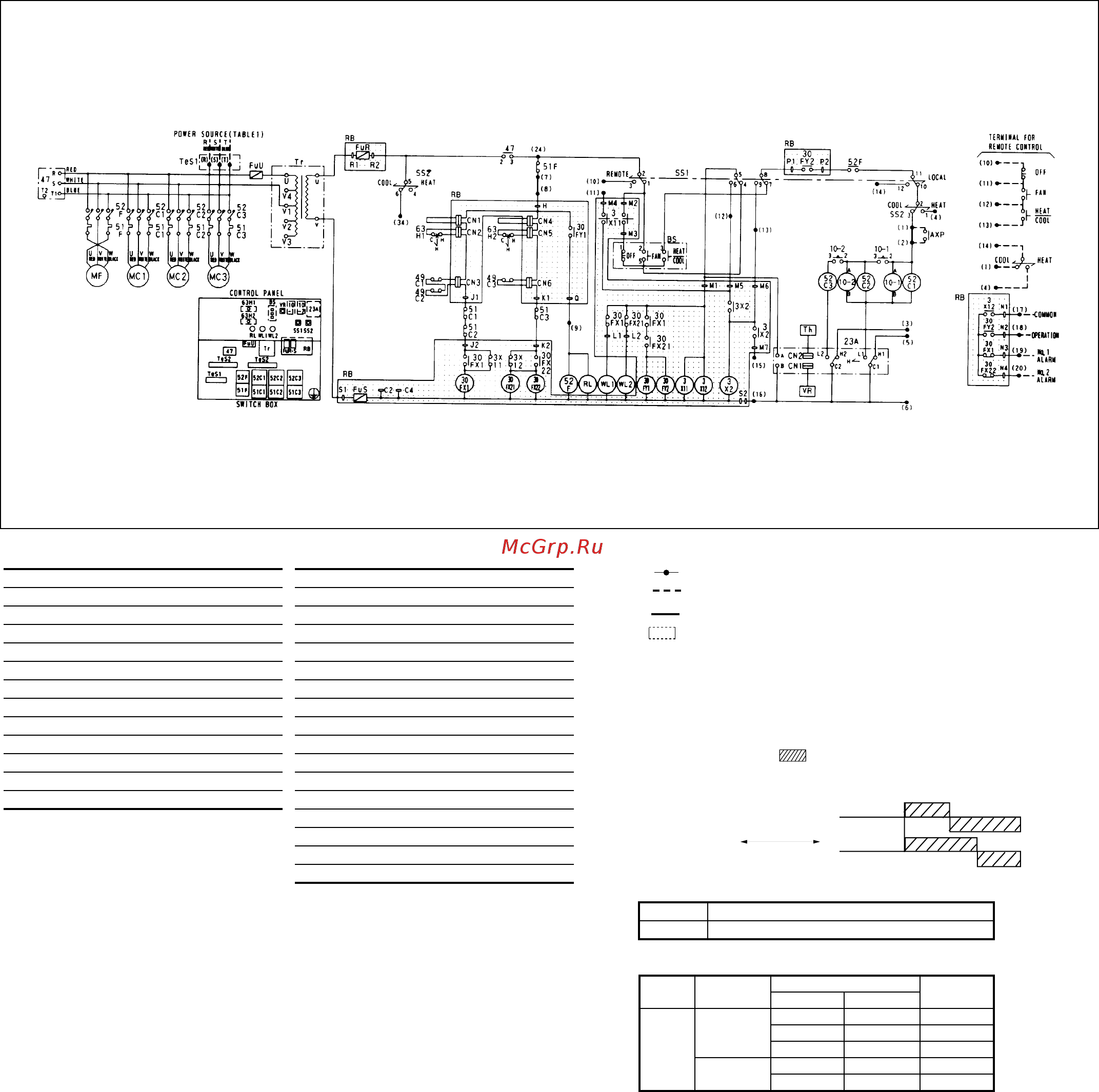

Daikin UCJ850N [13/38] Symbols
![Daikin UCJ850N [13/38] Symbols](/views2/1694766/page13/bgd.png)
11
UCJ1000P
3X2·11·12
10-1
10-2
23A
30FX1·21·22
30FY1·2
47
49C1·2·3
51C1·2·3
51F
52C1·2·3
52F
63H 1·2
Magnetic relay
Timing relay (60s)
Timing relay (5s)
Thermostat
Magnetic relay
Magnetic relay
Reverse phase protector
Temperature switch (MC1·2·3)
Overcurrent relay (MC1·2·3)
Overcurrent relay (MF)
Magnetic switch (MC1·2·3)
Magnetic switch (MF)
High pressure switch
Push button switch
Connector
Fuse (250V, 3A)
Fuse (600V, 5A)
Motor (Comp.)
Motor (Fan)
P. C. B. Assy
Pilot lamp (Operation-Red)
Selector switch (Local-Remote)
Selector switch (Cool-Heat)
Terminal strip
Thermistor (23A)
Transformer
Variable resistor (23A)
Pilot lamp (Alarm-White)
Auxiliary contact (lnterlock)
BS
CN1~6
FuR·S
FuU
MC1·2·3
MF
RB
RL
SS1
SS2
TeS1·2
Th
Tr
VR
WL1·2
Field wiring and optional Accessories
AXP
Symbols
Notes:
1. : Terminal
: Field wire
: Jumper
: Printed circuit board
2. The wiring to interlock with the cooling water
pump (Remove the jumper between (1) and (2) on TeS2
and connect "AXP".)
3. Change the connection of transformer and reverse phase
protection according to the table 2.
4. Function of 23A : Part shows "ON"
Symbol
YE
Model
YE
Name
Transformer
Reverse phase
protection
Power source
3 phase 380~415/400~440V 50/60Hz
Voltage
Terminal
*U-V1
U-V2
U-V3
*R-S-T1
R-S-T2
Table1
Table2
Primary
380V
400, 440V
415V
380V
400, 415, 440V
Secondary
200V
200, 220V
200V
–––
–––
*Factory connection
Temperature
LH
C1–H1
C1–L1
C2–H2
C2–L2
