6

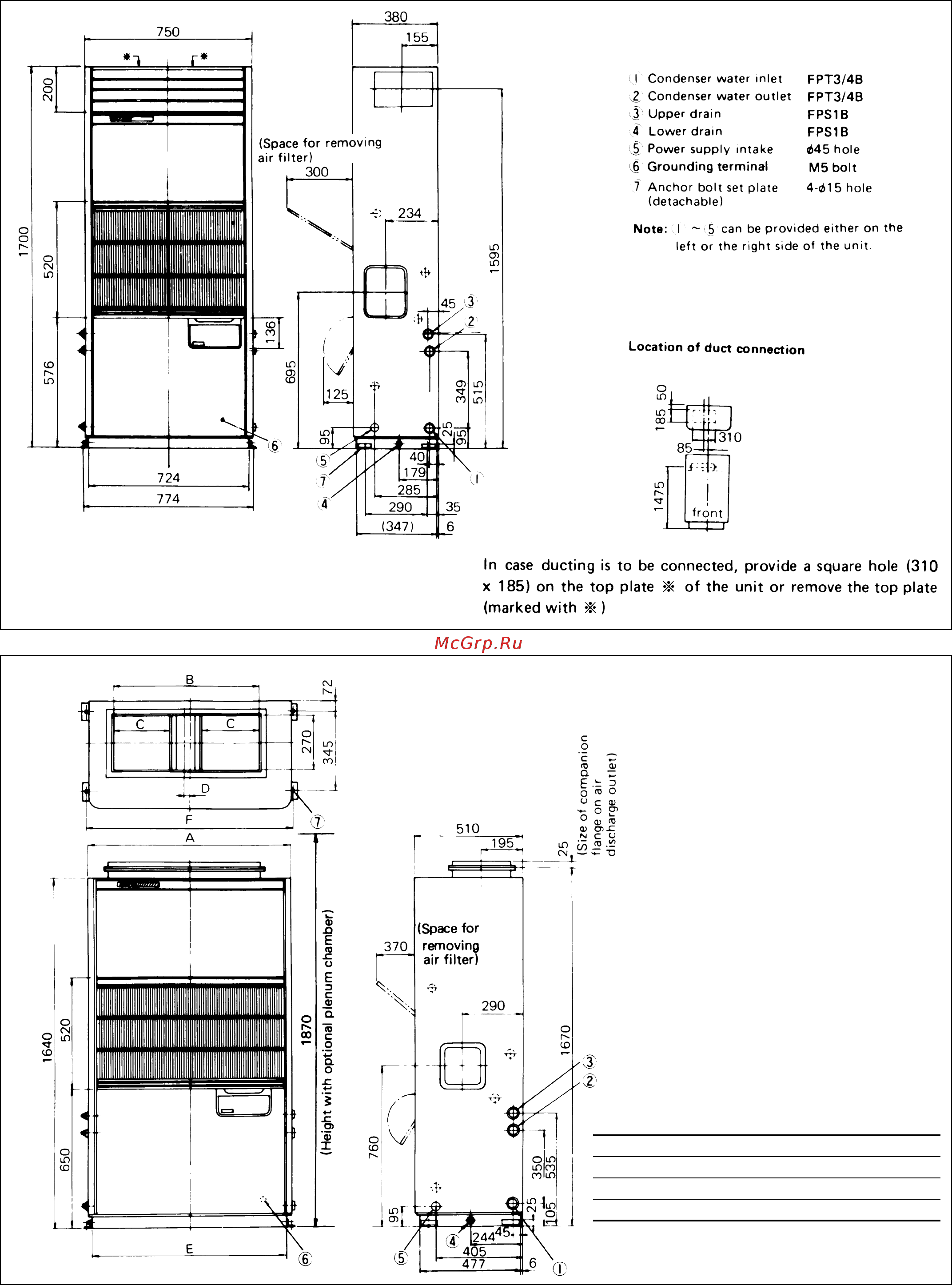

5. Dimensions
UCPJ100N
UCPJ170P·250P·335P
Model
UCPJ170P
UCPJ250P
UCPJ335P
F
974
1194
1494
E
924
1144
1444
D
27.5
35
20
C
280
330
430
B
695
870
1140
A
950
1170
1470
q Condenser water inlet
UCPJ170P: FPT1B
UCPJ250P: FPT1
1
/4B
UCPJ335P: FPT1
1
/4B
w Condenser water outlet
UCPJ170P: FPT1B
UCPJ250P: FPT1
1
/4B
UCPJ335P: FPT1
1
/4B
e Upper drain FPS1B
r Lower drain FPS
1
/2B
t Power supply intake C 45 hole
y Grounding terminal in M6 bolt
switch box
u Anchor bolt set plate 4-C15 hole
(detachable)
Note:q~t can be provided either on the
left or the right side of the unit.
(Unit: mm)
(Unit: mm)
