29

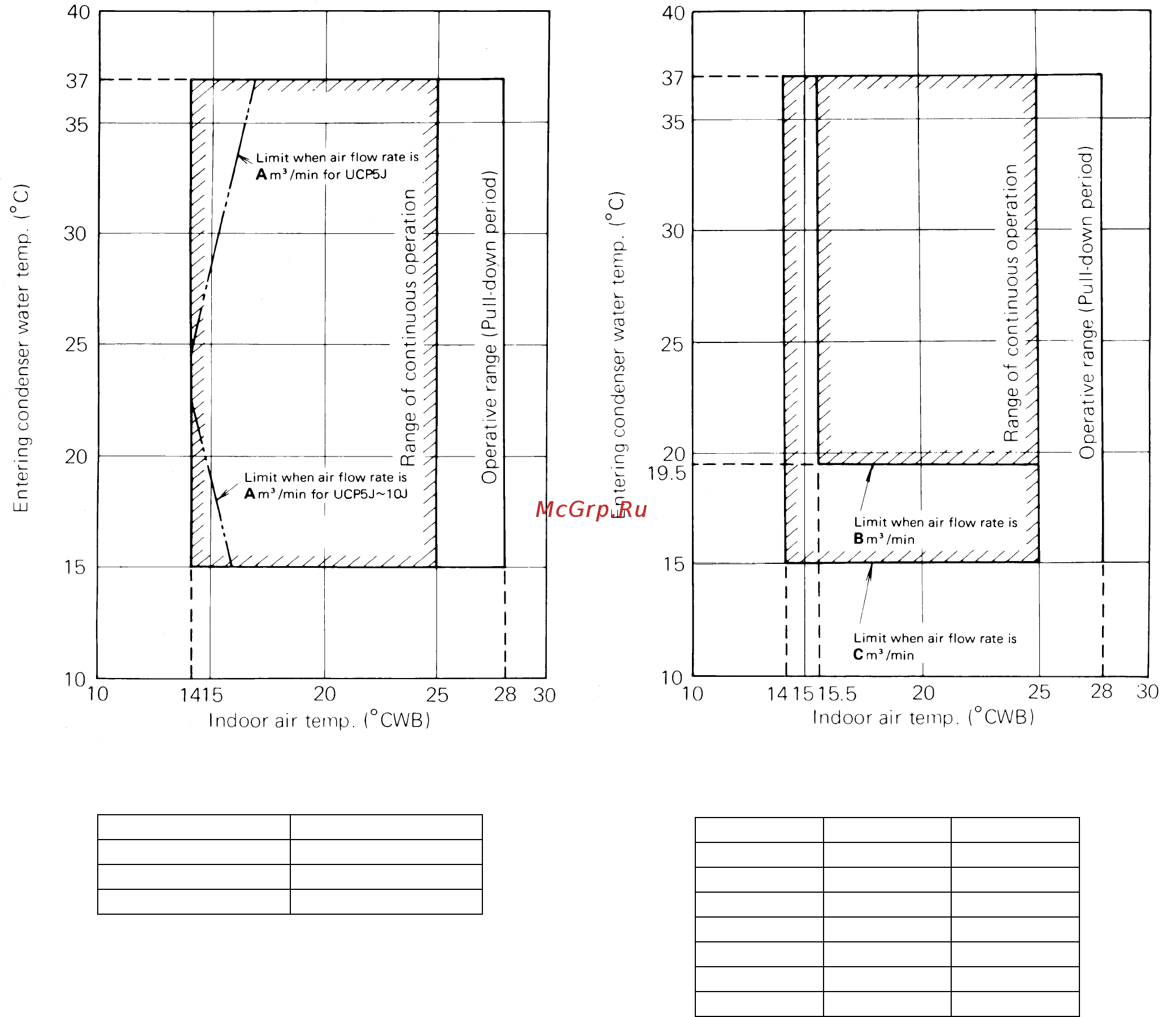

10. Operation limit
UCPJ100N, UCPJ170P~UCPJ335P UCJ500P, 670P, 850N, 1000P, 1320P, 1600N, 2000N
Notes: These diagrams are based on standard condenser water flow rate
shown in the specification (*2) on pages 2~4.
Model
UCPJ170P
UCPJ250P
UCPJ335P
A
36
54.5
72
Model
UCJ500P
UCJ670P
UCJ850N
UCJ1000P
UCJ1320P
UCJ1600N
UCJ2000N
B
90~108
120~144
150~180
180~216
240~288
280~336
360~432
C
108~165
144~220
180~300
216~360
288~480
336~540
432~600
