Measuring locationModel
UCPJ100N
UCPJ170P
UCPJ250P
UCPJ335P
UCJ500P
UCJ670P
UCJ850N
UCJ1000P
UCJ1320P
UCJ1600N
UCJ2000N
Sound level
50/60Hz
54/54
50/50
53/53
57/57
58/58
62/62
64.5/64.5
65/65
67.5/67.5
70/70
74.5/74.5
30
UCPJ100N
11. Sound level data
UCPJ170P UCPJ250P
UCPJ335P UCJ500P
UCJ850N UCJ1000P
UCJ670P

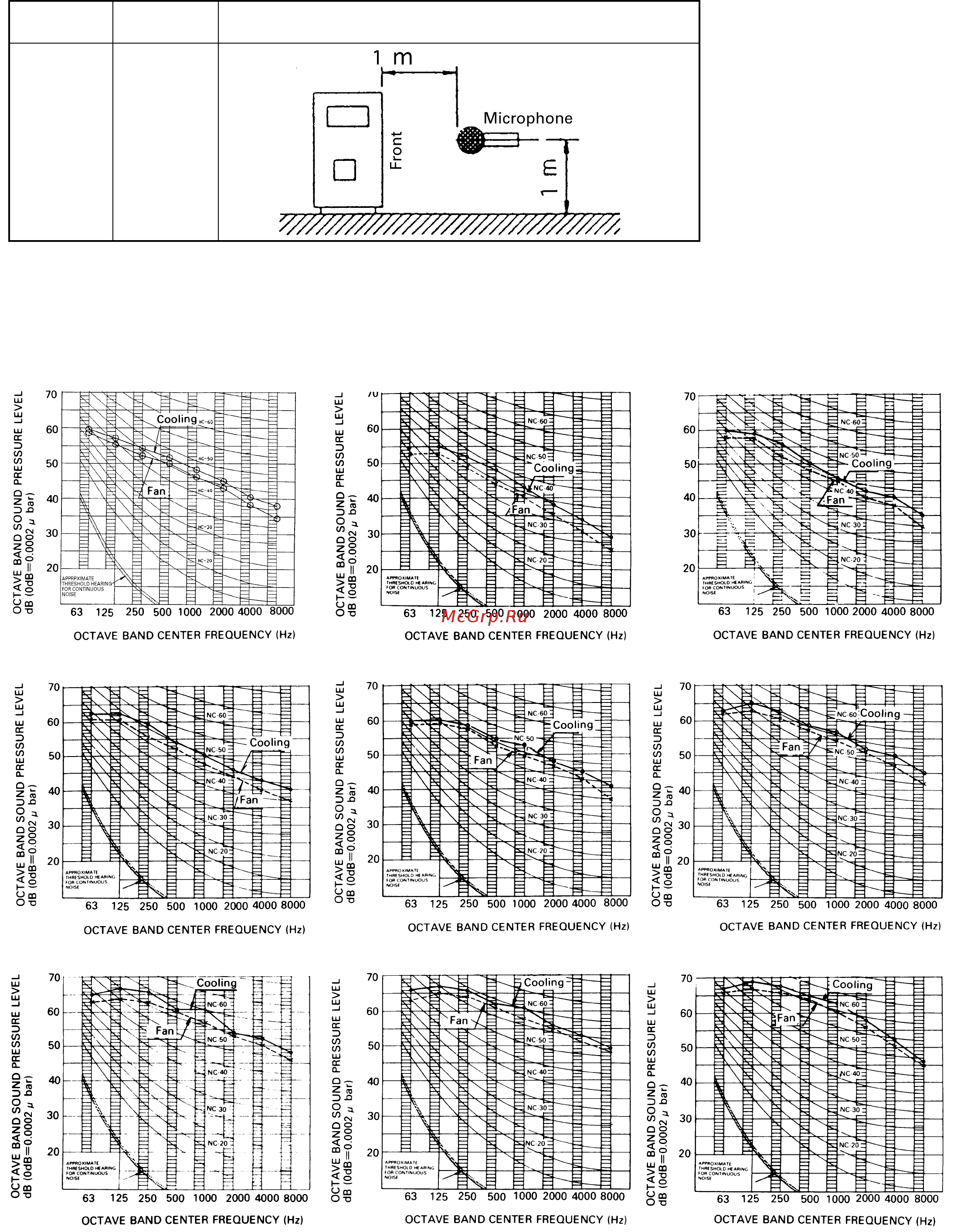

11-1. Overall
11-2. Octave band level
¡Indoor units
UCJ1320P
