SiBE311209 Troubleshooting by Indication on the Remote Controller
Service Diagnosis 286
Troubleshooting
Caution
Be sure to turn off the power switch before connecting or disconnecting
connectors, or parts may be damaged.

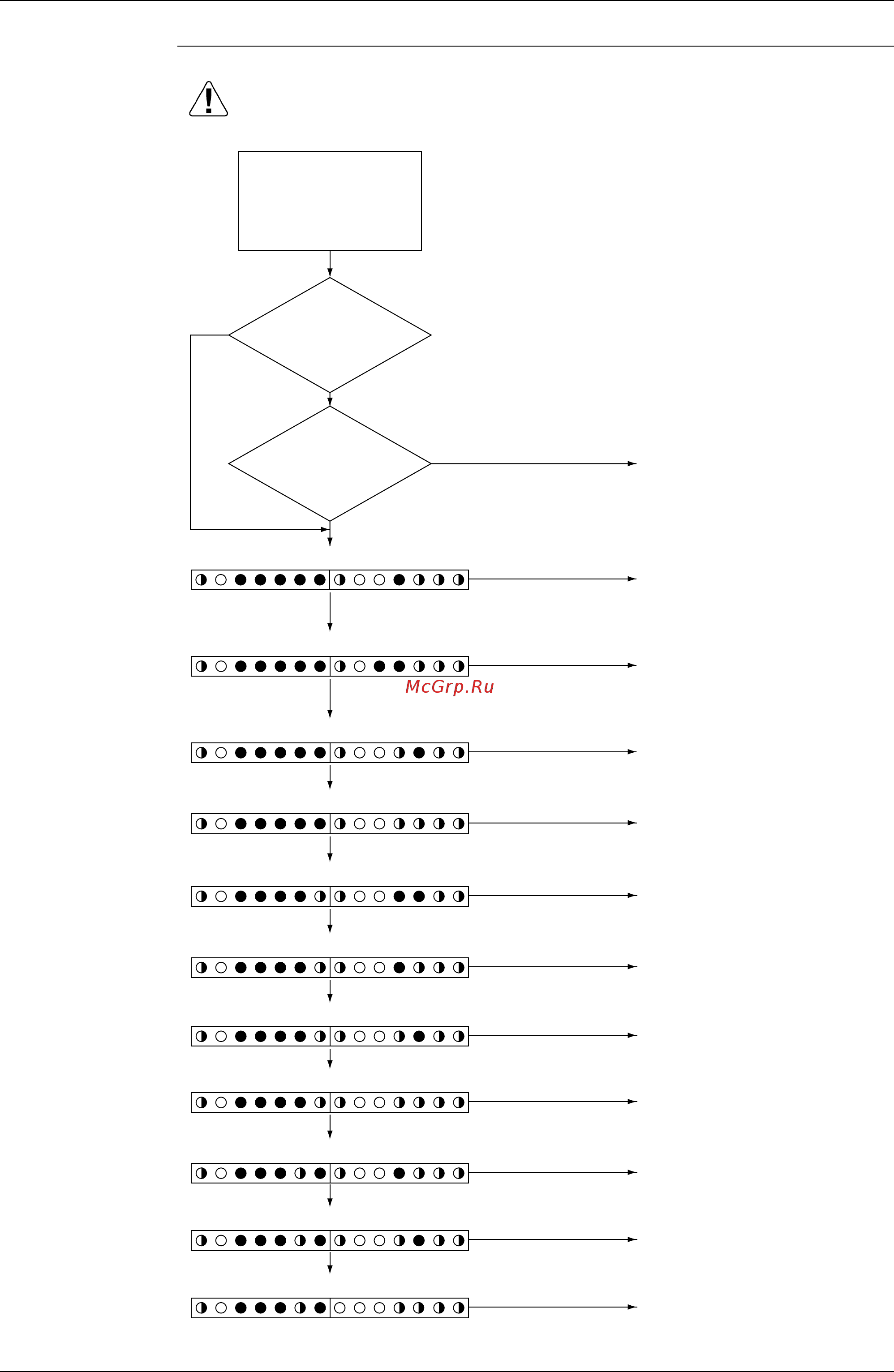

Check the LED lamps for
“Confirmation of error 3”
corresponding to the error
code “
U7
” and for
Confirmation of error 4 in
the monitor mode.
Was the PCB (A1P)
replaced with a spare
PCB?
NO
YES
Is the model setting
of the spare PCB
correct?
NO
YES
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Confirmation of
error 3
Confirmation of
error 4
Make the correct model setting.
Go on to the Diagnosis Flow 1
(Defective transmission caused
when the external control adaptor
for outdoor unit is mounted)
Go on to the Diagnosis Flow 2
(Transmission alarm given when
the external control adaptor for
outdoor unit is mounted)
Go on to the Diagnosis Flow 3
(Abnormal transmission between
the master unit and the slave unit 1)
Go on to the Diagnosis Flow 4
(Abnormal transmission between
the master unit and the slave unit 2)
Go on to the Diagnosis Flow 5
(Multi-connection RTSYQ units)
Go on to the Diagnosis Flow 6
(Erroneous manual address
settings of the slave units 1 and 2)
Go on to the Diagnosis Flow 7
(Connection of four or more
outdoor units to the same circuit)
Go on to the Diagnosis Flow 8
(Defective auto address of the
slave units 1 and 2)
Go on to the Diagnosis Flow 9
(Disconnection of Function Unit)
Go on to the Diagnosis Flow 10
(Over connection of Function Unit)
Go on to the Diagnosis Flow 11
(Error in installation of
RTSYQ20PA)
