Troubleshooting by Indication on the Remote Controller SiBE39-402
126 Troubleshooting
4.18 “E7” Malfunction of Outdoor Unit Fan Motor
Remote
Controller
Display
E7
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Malfunction of fan motor system is detected according to the fan speed detected by hall IC
when the fan motor runs.
Malfunction
Decision
Conditions
! When the fan runs with speed less than a specified one for 14.5 seconds or more when the
fan motor running conditions are met
! When malfunction is generated 4 times, the system shuts down.
Supposed
Causes
! Malfunction of fan motor
! The harness connector between fan motor and PC board is left in disconnected, or faulty
connector
! Fan does not run due to foreign matters tangled
! Clearing condition: Operate for 5 minutes (normal)

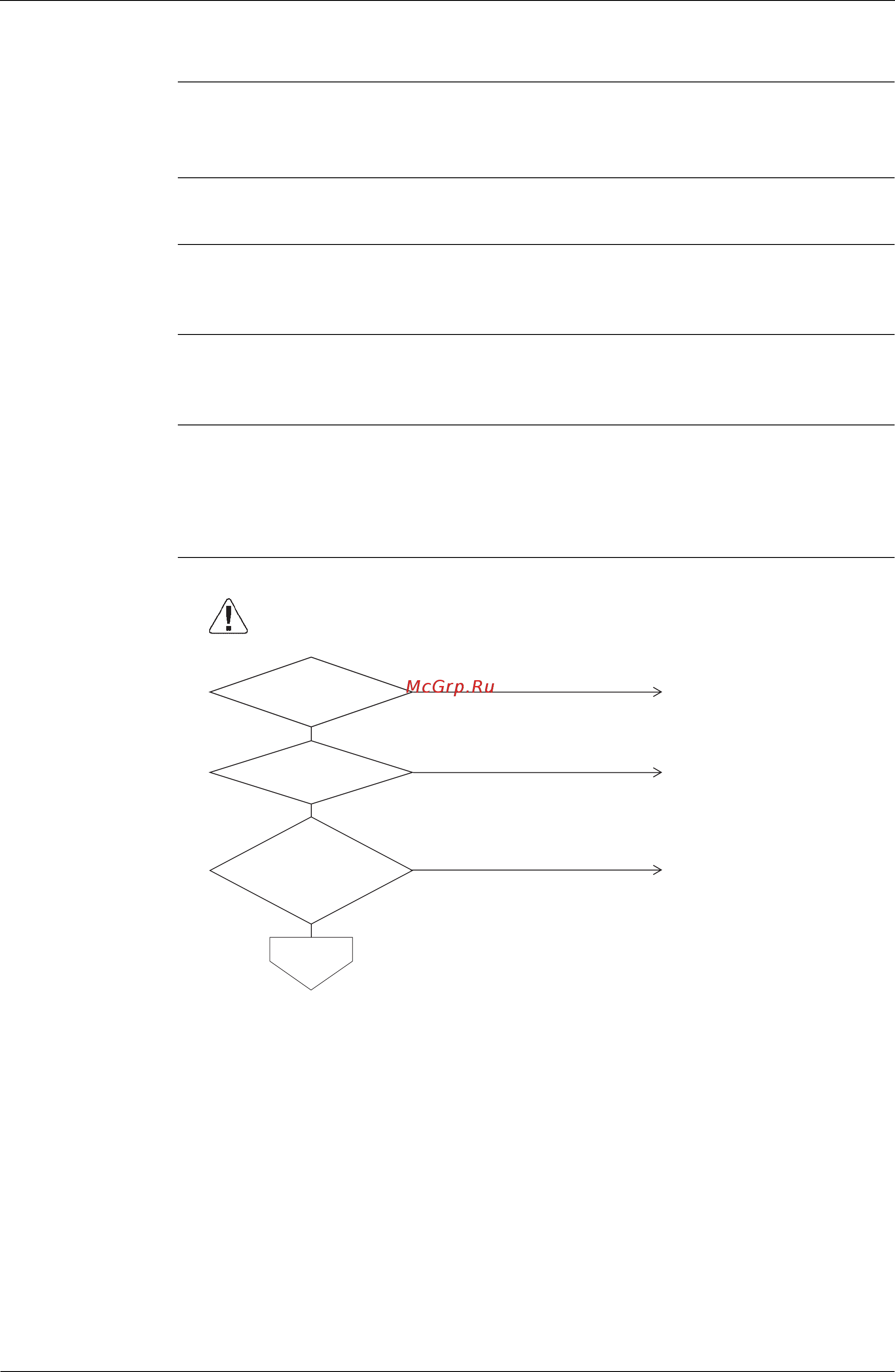

Troubleshooting
Connector of
fan motor is
disconnected.
YES
NO
NO
YES
Can the fan
be turned smoothly
with hand after disconnect
the connector of
fan motor?
Is there any obstacle
around the fan?
YES
NO
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Connect the connector.
Remove the obstacle.
Replace the fan motor of
outdoor unit.
(V3076)
