Field Setting SiBE39-402
72 Test Operation

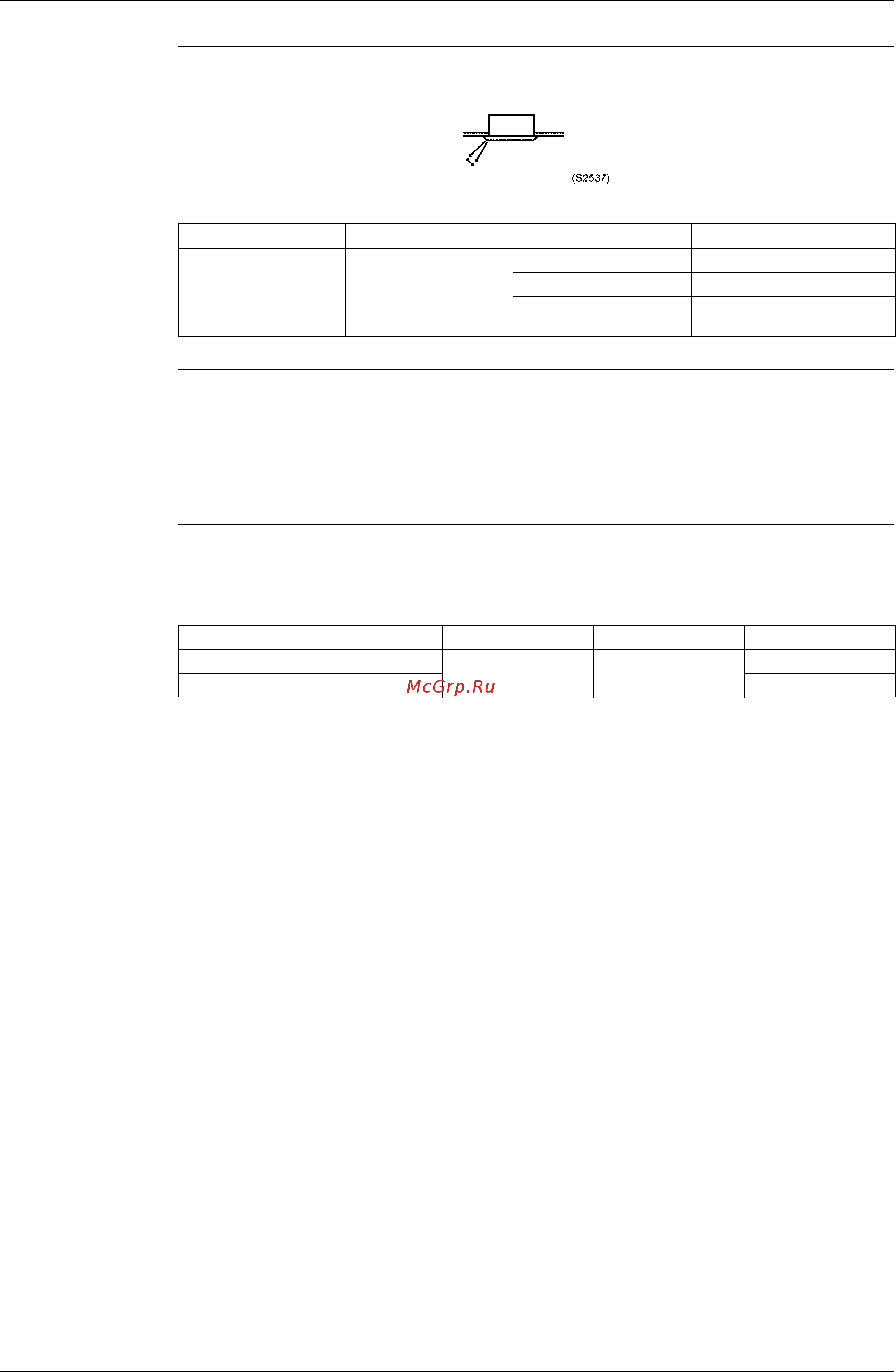

Setting of Air Flow Direction Adjustment Range
Make the following air flow direction setting according to the respective purpose.
Setting Table
Air Flow Rate Switching at Discharge Grille for Field Air Flow Rate Switching
! In the case of FXFQ
When the optional parts (high performance filter, oil guard filter, etc.) is installed, sets to change
fan speed for securing air flow rate.
Follow the instruction manual for the optional parts to enter the setting numbers.
Setting of Static Pressure Selection
Only the model FXDQ-N has the function.
The second code No. is factory set to “01”.
Setting Table
Mode No. First Code No. Second Code No. Setting
13 (23) 4 01 Upward (Draft prevention)
02 Standard
03 Downward (Ceiling soiling
prevention)
External Static Pressure Setting Mode No. First Code No. Second Code No.
Standard (20Pa)
13 (23) 5
01
High Static Pressure Setting (49Pa) 02
