SiBE39-402 Troubleshooting by Indication on the Remote Controller
Troubleshooting 137
4.27 “JC” Outdoor Unit: Malfunction of Low Pressure Sensor
Remote
Controller
Display
JC
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Malfunction is detected from pressure detected by low pressure sensor.
Malfunction
Decision
Conditions
When the low pressure sensor is short circuit or open circuit.
Supposed
Causes
! Defect of low pressure sensor
! Connection of high pressure sensor with wrong connection.
! Defect of outdoor unit PC board.
Troubleshooting

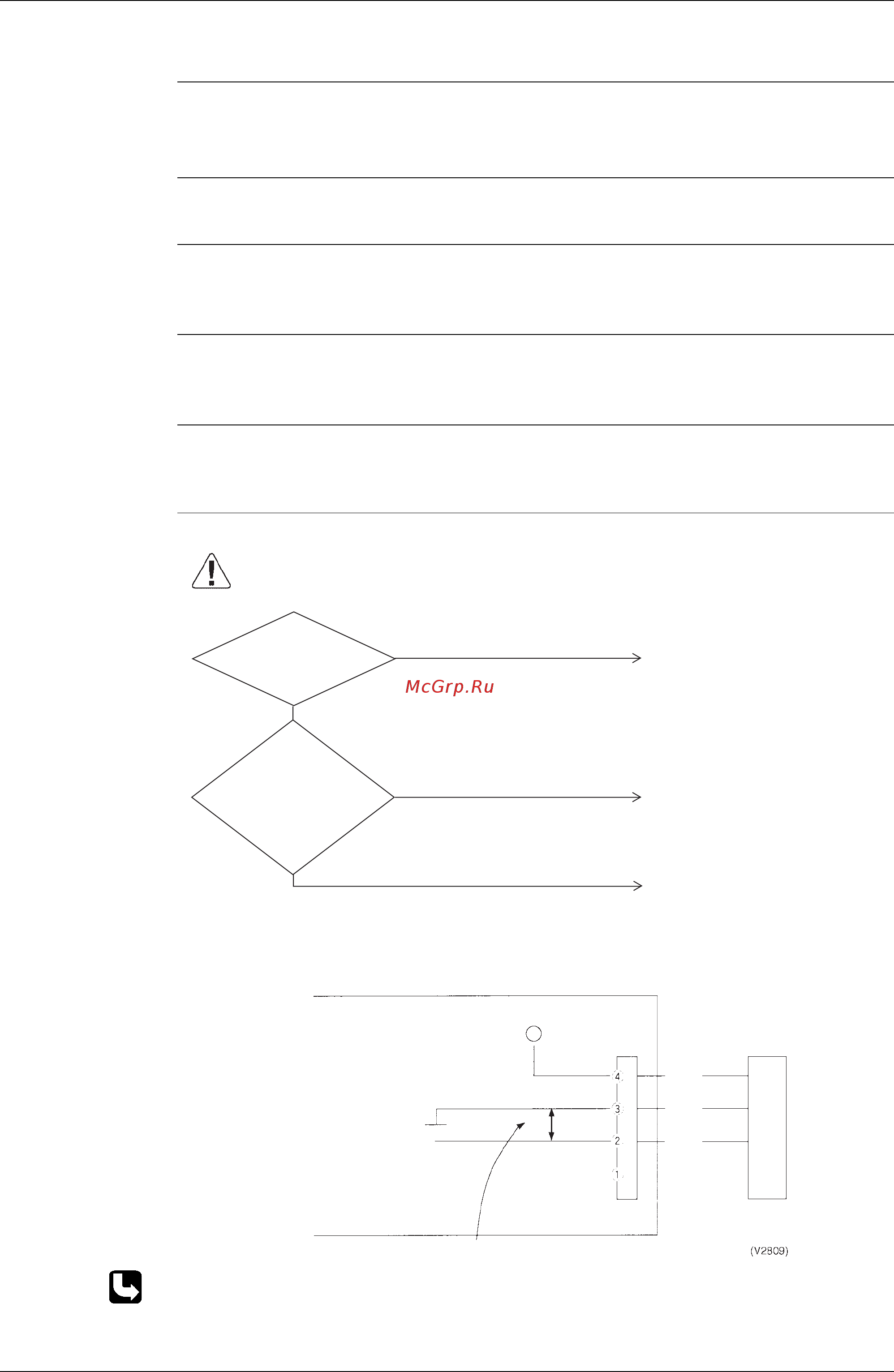

∗1: Voltage measurement point
∗2: Refer to pressure sensor, pressure/voltage characteristics table on P194.
(V2808)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
The
relationship
between the ∗1
VL and low pressure is
normal (see ∗2) when voltage
is measured between X45A pins
(2) and (3) of outdoor unit
PC board (A1P)
(see ∗1).
Replace the low pressure sensor.
Connect low pressure sensor
property and restart system.
NO
NO
Replace outdoor unit PC board
A1P.
YES
YES
The low
pressure sensor is
connected to X45A (blue)
of outdoor unit PC
board (A1P).
Outdoor unit PC board A1P
GND
+5V
X45A
Red
Black
White
Low pressure sensor
∗2 Measure voltage here.
Microcomputer
A/D input
