Outline of Control (Indoor Unit) SiBE39-402
52 Function
6. Outline of Control (Indoor Unit)
6.1 Drain Pump Control
1. The drain pump is controlled by the ON/OFF buttons (4 button (1) - (4) given in the figure
below).

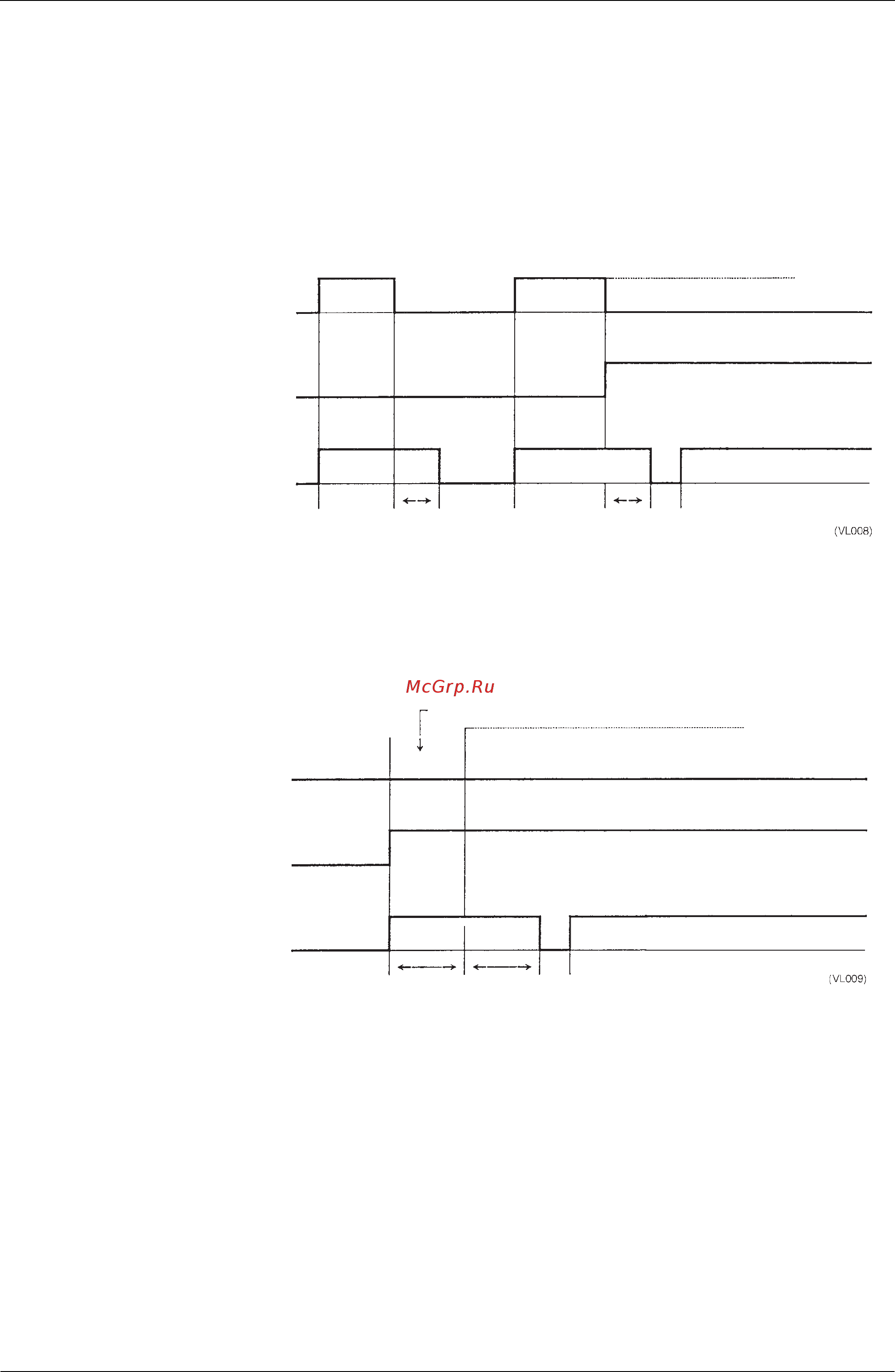

6.1.1 When the Float Switch is Tripped While the Cooling Thermostat is
ON:
∗ 1. The objective of residual operation is to completely drain any moisture adhering to the fin of
the indoor unit heat exchanger when the thermostat goes off during cooling operation.
6.1.2 When the Float Switch is Tripped During Cooling OFF by
Thermostat:
Thermostat
(running)
Float switch
Drain pump
*1) Residual operation Malfunction residual
5 min. 5 min. 5 sec.
Remote control “A3” flashing malfunction stop
ON
ON
ON
OFF
OFF
OFF
Thermostat
(running)
Float switch
Drain pump
5 min. 5 min. 5 sec.
Remote control “A3” flashing malfunction stop
Enters malfunction treatment if the float switch is not reset within 5 minutes.
ON
ON
ON
OFF
OFF
OFF
