Troubleshooting by Indication on the Remote Controller SiBE39-402
132 Troubleshooting
4.22 “J3” Outdoor Unit: Malfunction of Discharge Pipe
Thermistor (R3T)
Remote
Controller
Display
J3
Applicable
Models
AII outdoor unit models
Method of
Malfunction
Detection
Malfunction is detected from the temperature detected by discharge pipe temperature
thermistor.
Malfunction
Decision
Conditions
When a short circuit or an open circuit in the discharge pipe temperature thermistor is detected.
Supposed
Causes
! Defect of thermistor (R3T) for outdoor unit discharge pipe
! Defect of outdoor unit PC board (A1P)

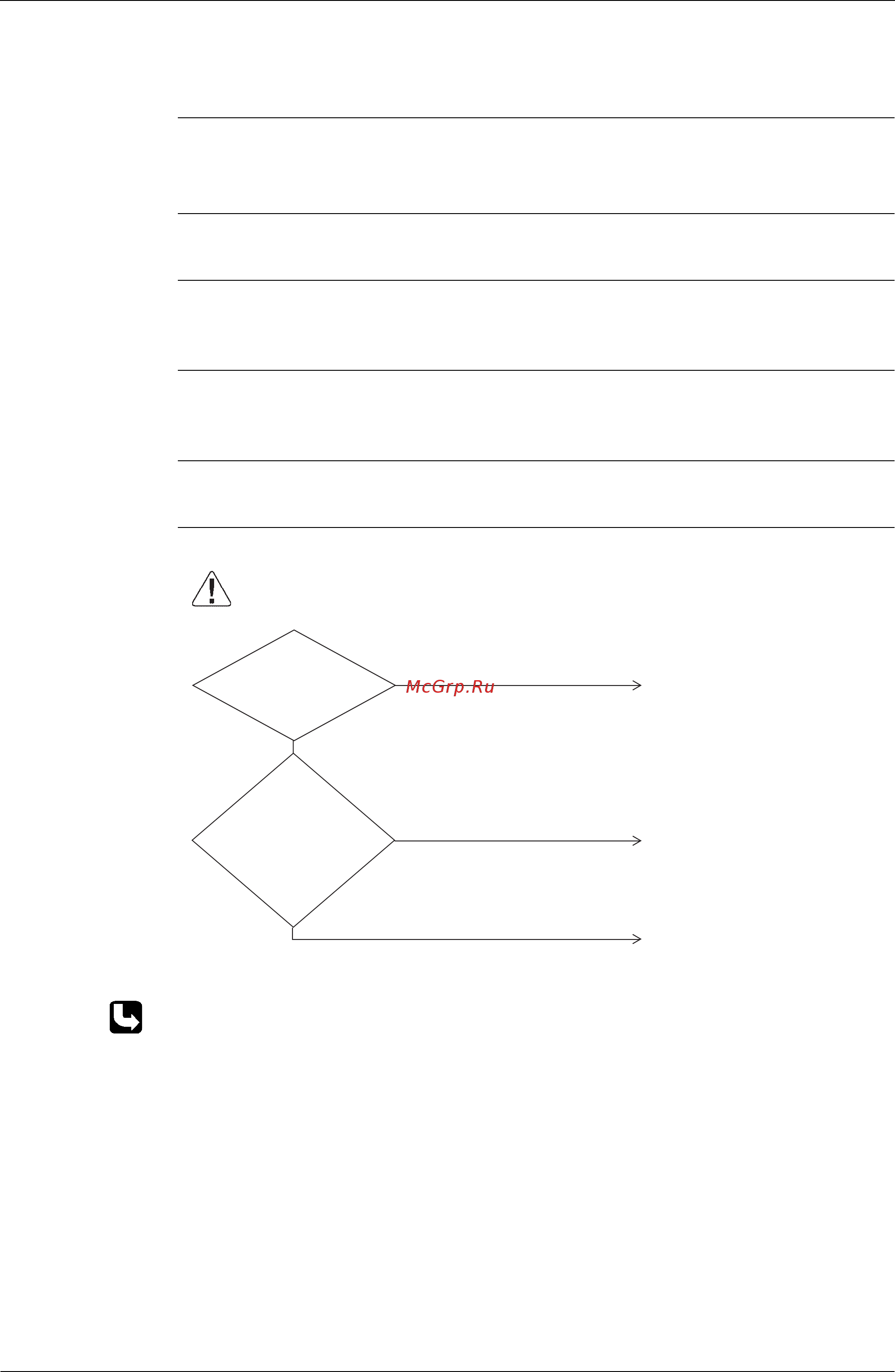

Troubleshooting
∗ Refer to thermistor resistance / temperature characteristics table on P192.
(V3072)
Caution
Be sure to turn off power switch before connect or disconnect connector,
or parts damage may be occurred.
Resistance
is normal when
measured after
disconnecting the thermistor
R3T from the outdoor
unit PC board.
(3.5kΩ~
400kΩ)
Replace outdoor unit PC board
A1P.
Connect the thermistor and turn
on again.
NO
NO
Replace the thermistor (R3T)
YES
YES
Connector is
connected to
outdoor unit
PC board
(A1P).
