12 | Chapter 2: Hardware installaon

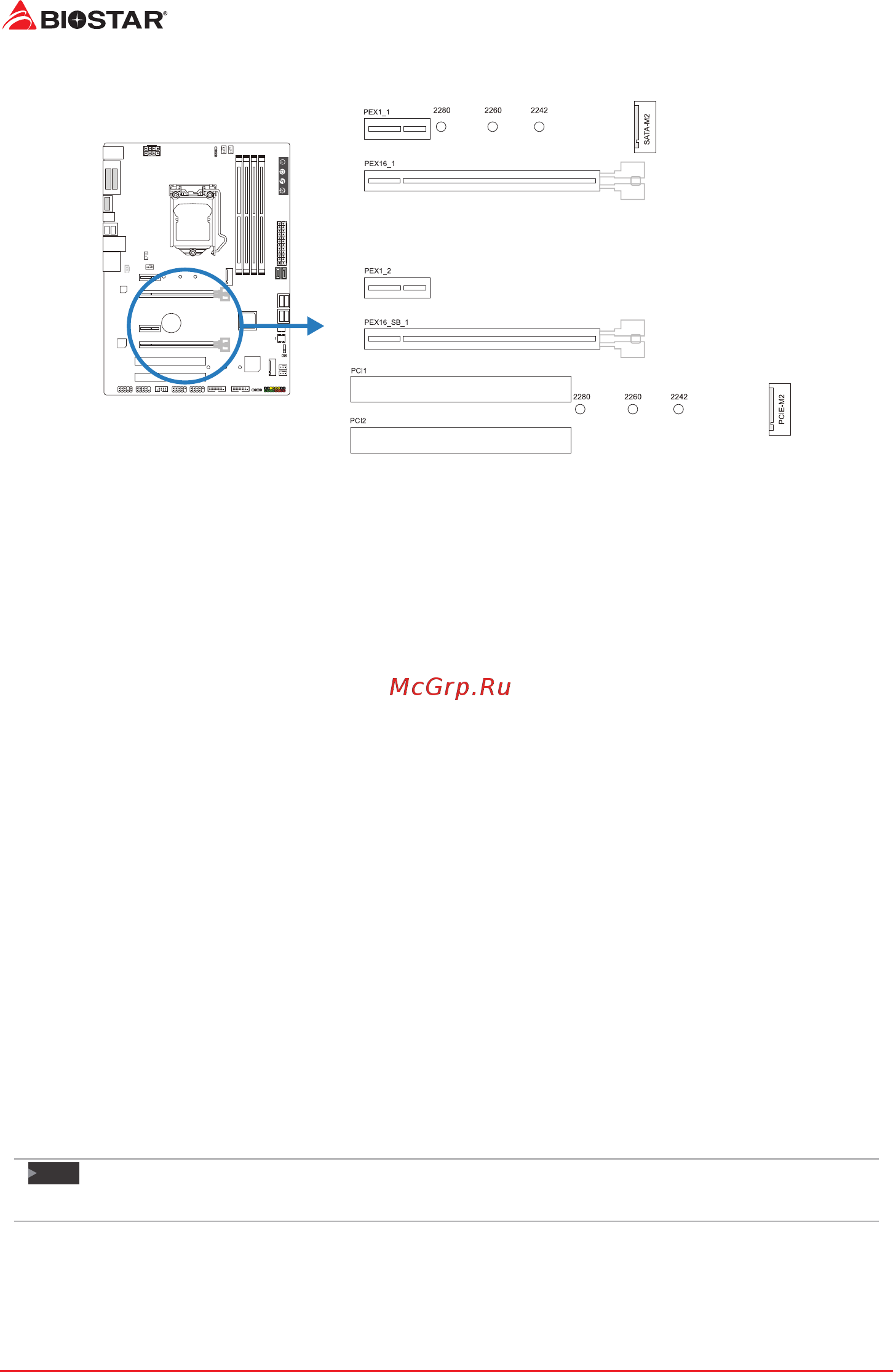

2.5 Expansion Slots

PCI1/PCI2: Peripheral Component Interconnect Slots

• The PCI slots support cards used in PCs include: LAN cards, sound cards, modems, TV

tuner cards and other cards that comply with PCI standard.

PEX16_1: PCI-Express Gen3 x16 Slot (x16 speed)

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 16GB/s for each slot,

a total of 32GB/s.

PEX16_SB_1: PCI-Express Gen3 x16 Slot (x4 speed)

• PCI-Express 3.0 compliant.

• Theorecal maximum bandwidth using two slots simultaneously is 4GB/s for each slot, a

total of 8GB/s.

PEX1_1/1_2: PCI-Express Gen3 x1 Slot

• PCI-Express 3.0 compliant.

• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total

PCIE-M2: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support M.2 PCI Express module up to Gen3 x4 (32Gb/s).

• Support Intel® Rapid Storage Technology & Intel® Optane Technology.

SATA-M2: M.2 (Key M) Slot

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• Support M.2 SATA III (6.0 Gb/s) module.

Note



WhenusingSATASSDmoduleonSATA-M.2slot,theSATA3_1connectorwillbedisabled.
