Biostar B250GT5 Версия 5.x [5/80] Rear panel connectors

Chapter 1: Introducon | 5

B250GT6 & B250GT5 & H270GT5

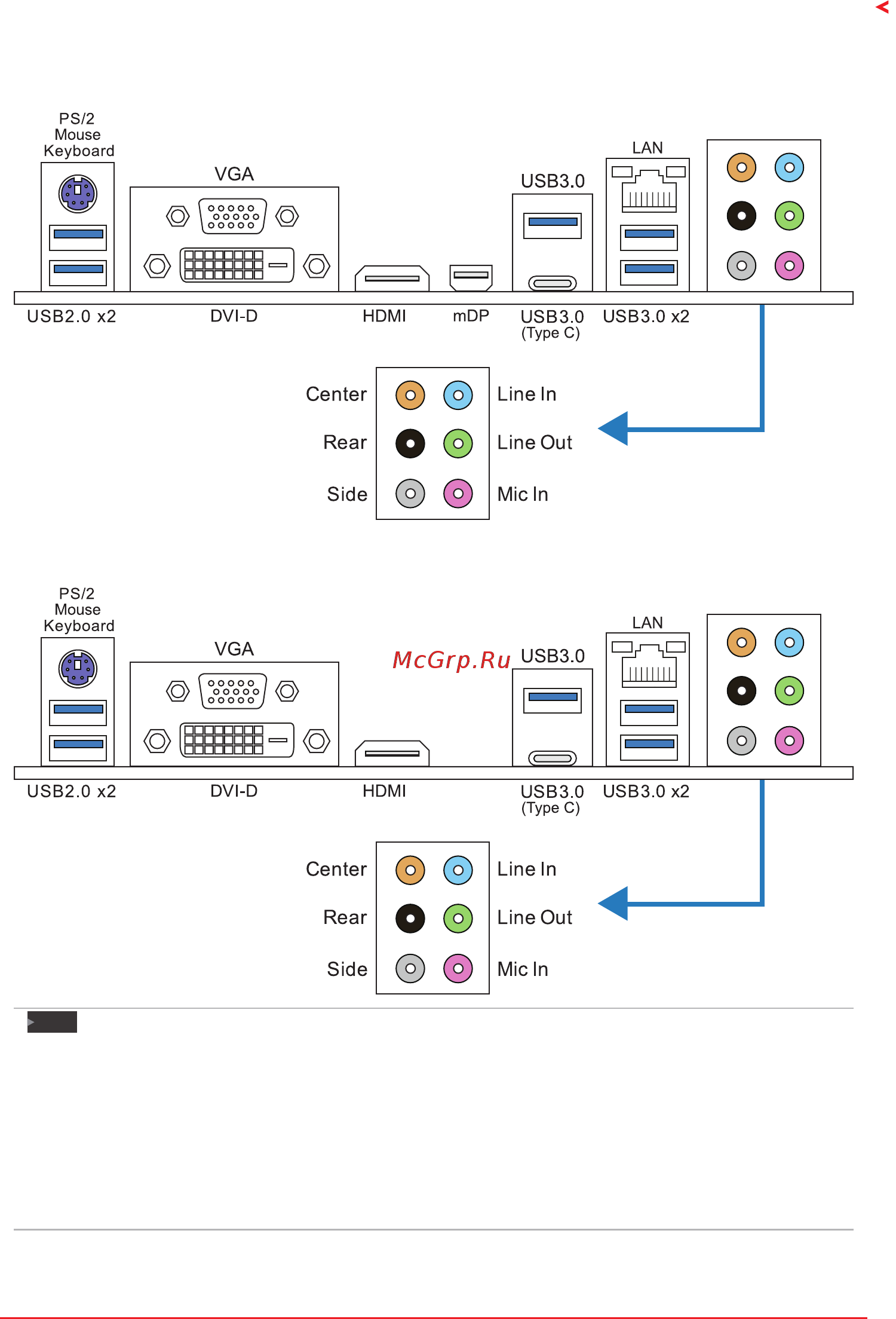

1.4 Rear Panel Connectors

B250GT6

B250GT5 & H270GT5

Note

 HDMI,DVI-D,VGA&mDPportsonlyworkwithanIntel®integratedGraphicsProcessor.

 Maximumresoluon

HDMI:4096x2160@30Hz,compliantwithHDMI1.4

DVI-D:1920x1200@60Hz

VGA:1920x1200@60Hz

mDP:4096x2304@60Hz



WhenusingthefrontHDaudiojackandplugintheheadset,therearsoundwillbeautomacally

Disabled.
