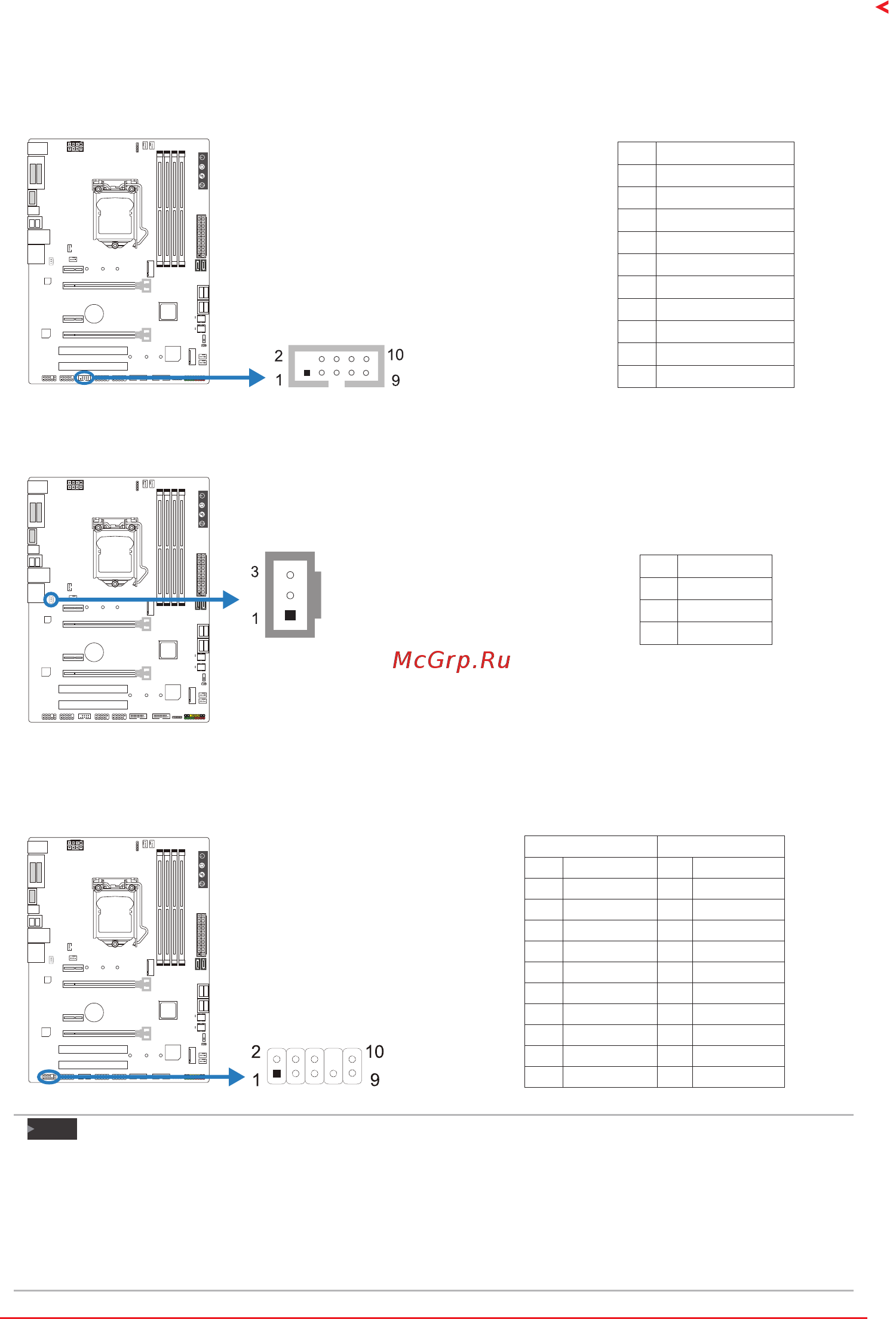

Chapter 2: Hardware installaon | 17
B250GT6 & B250GT5 & H270GT5
TB1: Thunderbolt 3 Header (only for B250GT6)
This header allows user to add addional Thunderbolt ports on the PC front panel, and also
can be connected with a wide range of external peripherals.
Pin Assignment
1 Force Power
2 NC
3 CIO Plug Event
4 I2C_MASTER_DATA
5 SLP_S3#
6 I2C_MATSTER_CLK
7 SLP_S5_S4#
8 PA_PPS_INT#
9 GND
10 GND
JSPDIFOUT1: Digital Audio-out Connector
The connector is for connecng the S/PDIF output bracket.
Pin Assignment
1 +5V
2 SPDIF_OUT
3 Ground
F_AUDIO1: Front Panel Audio Header
This header allows user to connect the chassis-mount front panel audio I/O which supports HD
and AC’97 audio standards.
HD Audio AC’97
Pin Assignment Pin Assignment
1 Mic Le in 1 Mic In
2 Ground 2 Ground
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Le line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
Note
 
»
» Whenusingthefrontaudiojackandplugintheheadset,therearsoundwillbeautomacally
Disabled.
»
  Itisrecommendedthatyouconnectahigh-denionfrontpanelaudiomoduletothisconnectorto
availofthemotherboard’shighdenionaudiocapability.
»
  Pleasetrytodisablethe“FrontPanelJackDetecon”ifyouwanttouseanAC’97frontaudiooutput
cable.ThefunconcanbefoundviaO.S.AudioUlity.
