Biostar B250GT5 Версия 5.x [47/80] 4 后置面板接口

第一章: 主板介绍 | 5

B250GT6 & B250GT5 & H270GT5

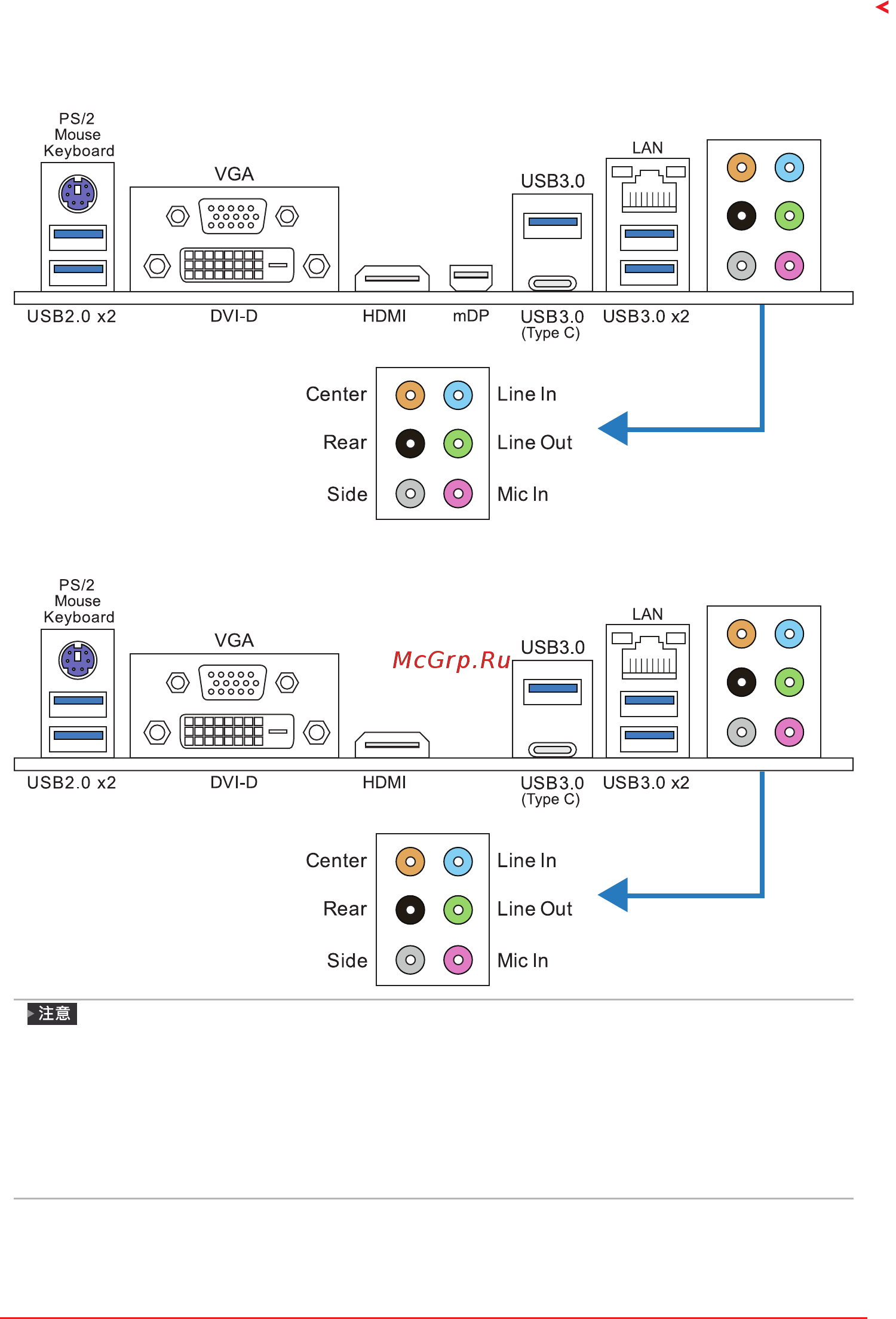

1�4 后置面板接口

B250GT6

B250GT5 & H270GT5

仅Intel集成显卡处理器支持HDMI、DVI-D、VGA和mDP端口。

最高分辨率：

HDMI: 4096 x 2160 @30Hz，符合HDMI 1.4规范

DVI-D: 1920 x 1200 @60Hz

VGA: 1920 x 1200 @60Hz

mDP: 4096 x2304 @60Hz

当使用前置HD音频插孔并插入耳机/麦克风时，后置声音将自动禁用。
