Chapter 3: UEFI BIOS & Soware | 27

B250GT6 & B250GT5 & H270GT5

RACING GT

RACING GT is an easy-to-use program that integrates several BIOSTAR ulies and allows users

to congure these ulies simultaneously and seamlessly.

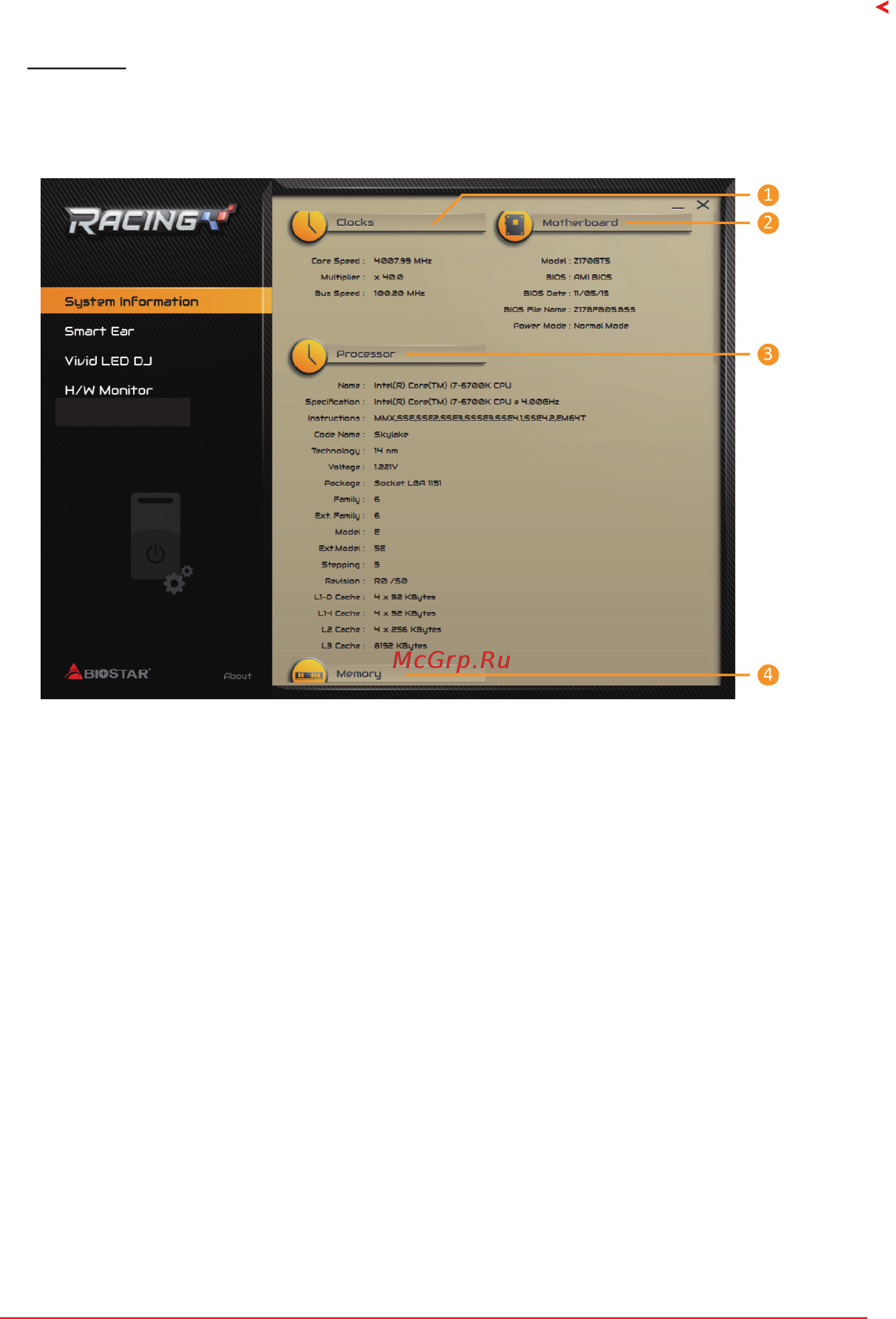

System Informaon

This System Informaon tab provides you an overview of the basic system informaon.

1. Clocks: Shows core speed, mulplier and bus speed.

2. Motherboard: Shows motherboard informaon.

3. Processor: Shows CPU informaon.

4. Memory: Shows memory informaon.
