第一章: 主板介绍 | 5

H270GT4 & Z270GT4

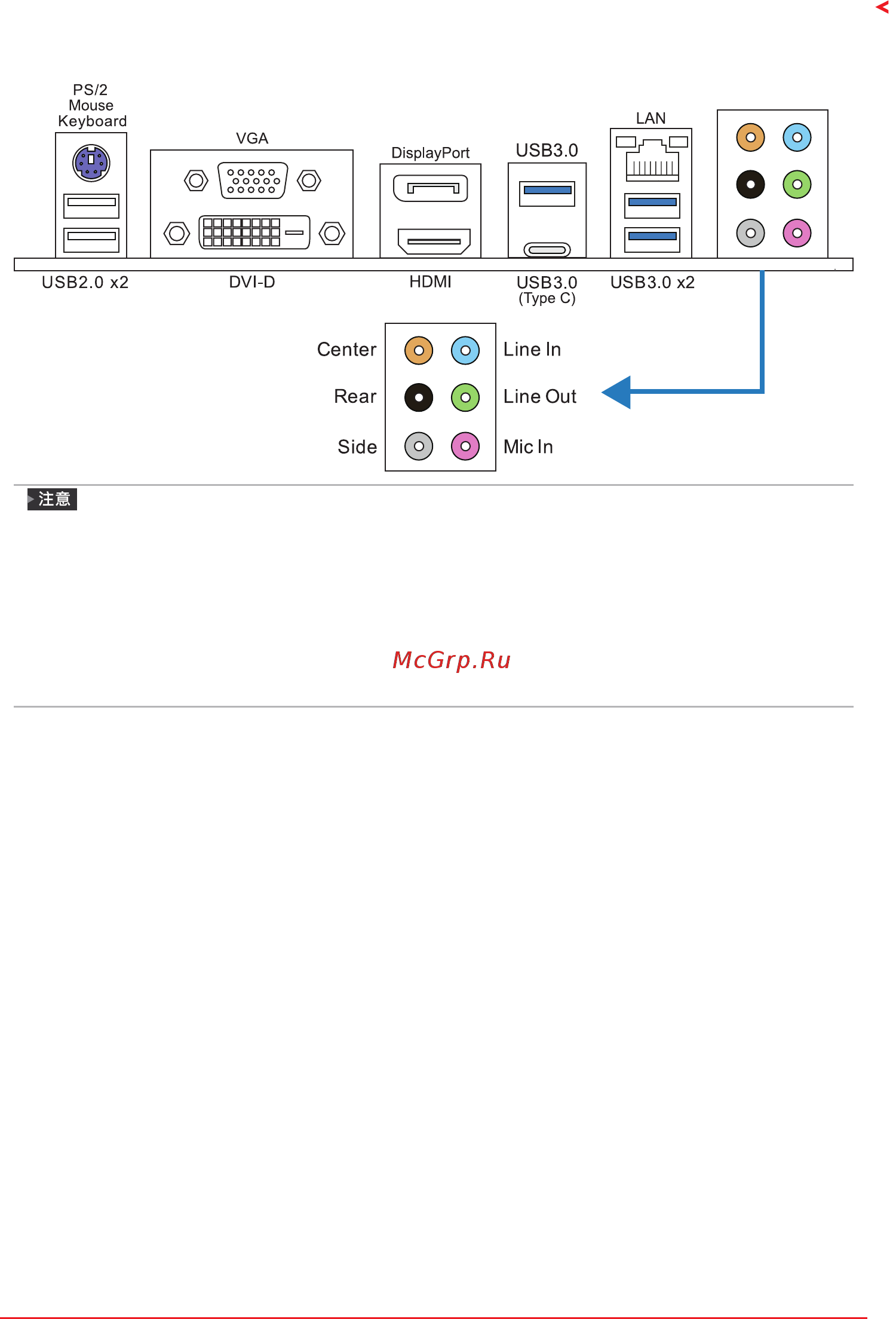

1�4 后置面板接口

仅Intel集成显卡处理器支持VGA、DVI-D、DP & HDMI端口。

最高分辨率：

VGA: 1920 x 1200 @60Hz

DVI-D: 1920 x 1200 @60Hz

DP: 4096 x 2304 @60Hz

HDMI: 4096x 2160 @30Hz，符合HDMI 1.4规范

主板同时支持3个板载显示端口输出。显示输出的配置可以在英特尔图形驱动程序工具中进行选

择。
