Biostar Z270GT4 Версия 5.x [5/80] Rear panel connectors

Chapter 1: Introducon | 5

H270GT4 & Z270GT4

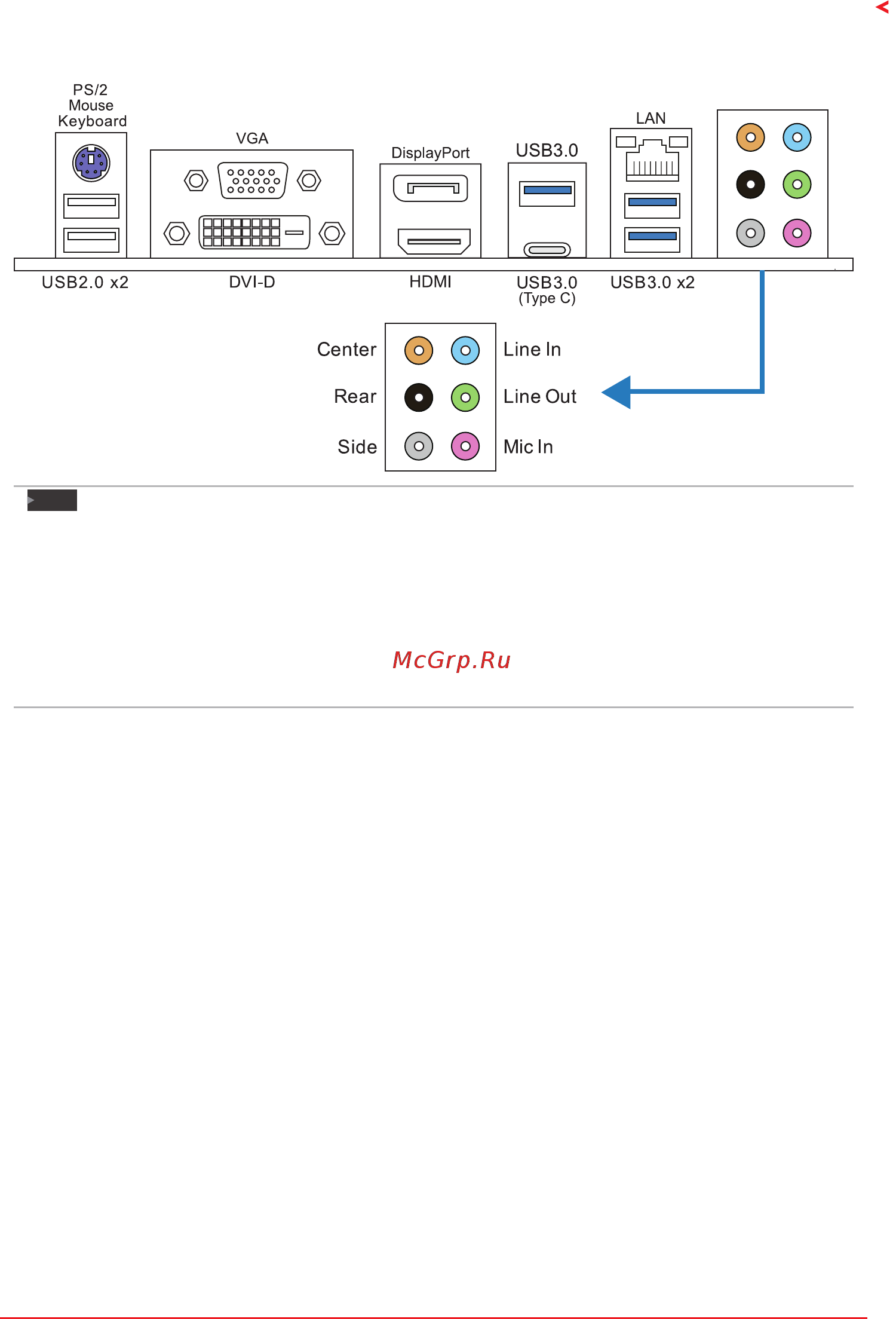

1.4 Rear Panel Connectors

Note

 VGA,DVI-D,DP&HDMIportsonlyworkwithanIntel®integratedGraphicsProcessor.

 Maximumresoluon

VGA:1920x1200@60Hz

DVI-D:1920x1200@60Hz

DP:4096x2304@60Hz

HDMI:4096x2160@30Hz,compliantwithHDMI1.4

 Themainboardsupportsthreeonboarddisplayoutputsatsamemeandthedisplayoutput

conguraoncanbeselectedinIntelgraphicsdriverulity.
