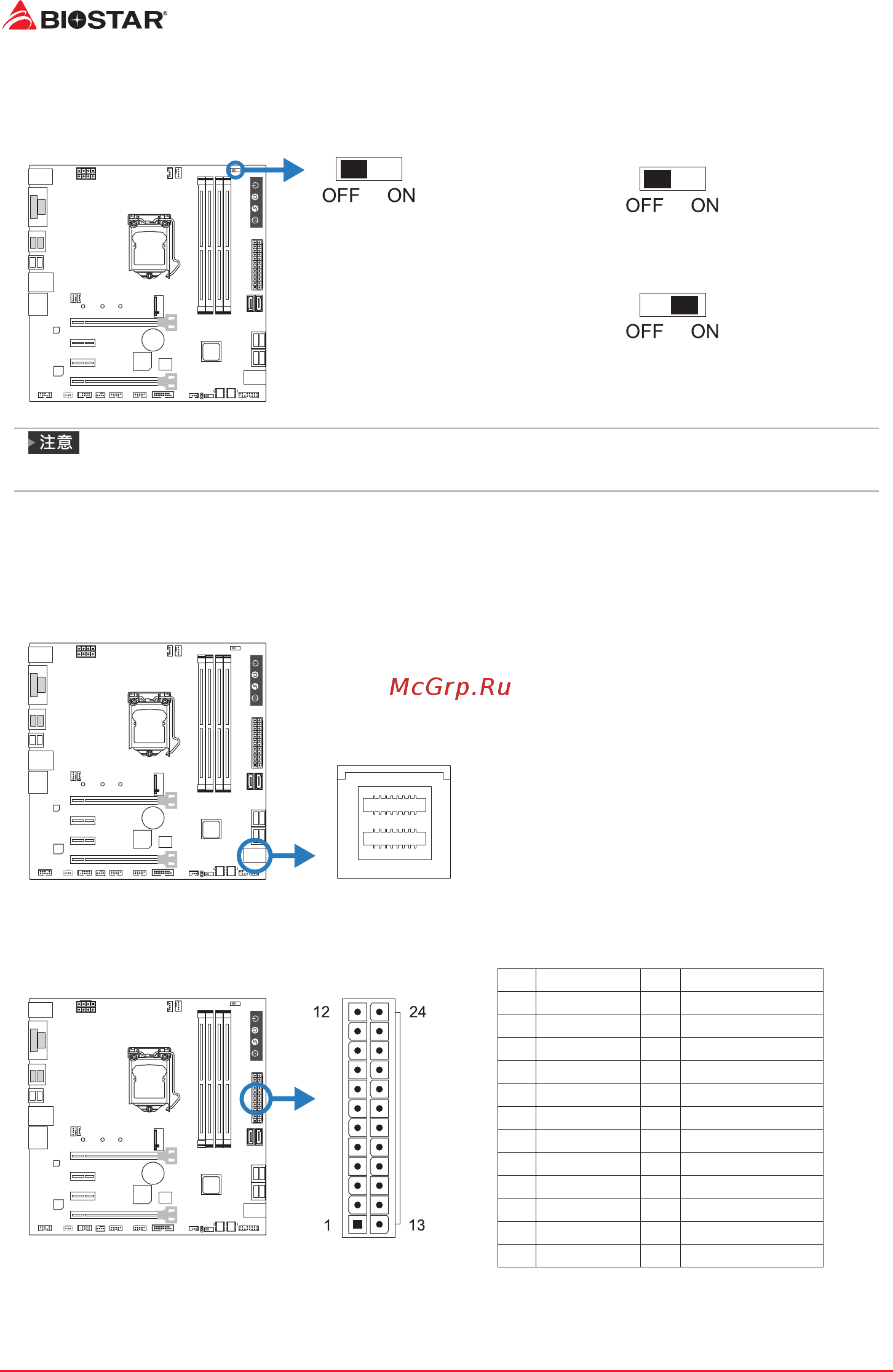

14 | 第二章: 硬件安装
LN2_SW1: LN2模式跳线
当启用LN2模式时，CPU将在其最低频率运行（例如，800MHz）以避免系统意外的当
机。
关闭OFF(默认)
启用ON
»
我们不负责超频造成的损失或风险。
2�7 接口和插槽
MINI-SAS1: U�2接口
• 主板配备了一个U.2连接器，并支持PCIe 3.0 x4的NVMe快速存储设备。
• 支持 Intel®快速储存技术 & Intel® Optane技术。
ATXPWR1: ATX电源接口
为了更好的兼容性，我们建议使用标准的ATX24-pin电源供应此接口的电源。
针 定义 针 定义
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 接地 3 接地
16 PS_ON 4 +5V
17 接地 5 接地
18 接地 6 +5V
19 接地 7 接地
20 NC 8 PW_OK
21 +5V 9 唤醒电压+5V
22 +5V 10 +12V
23 +5V 11 +12V
24 接地 12 +3.3V
