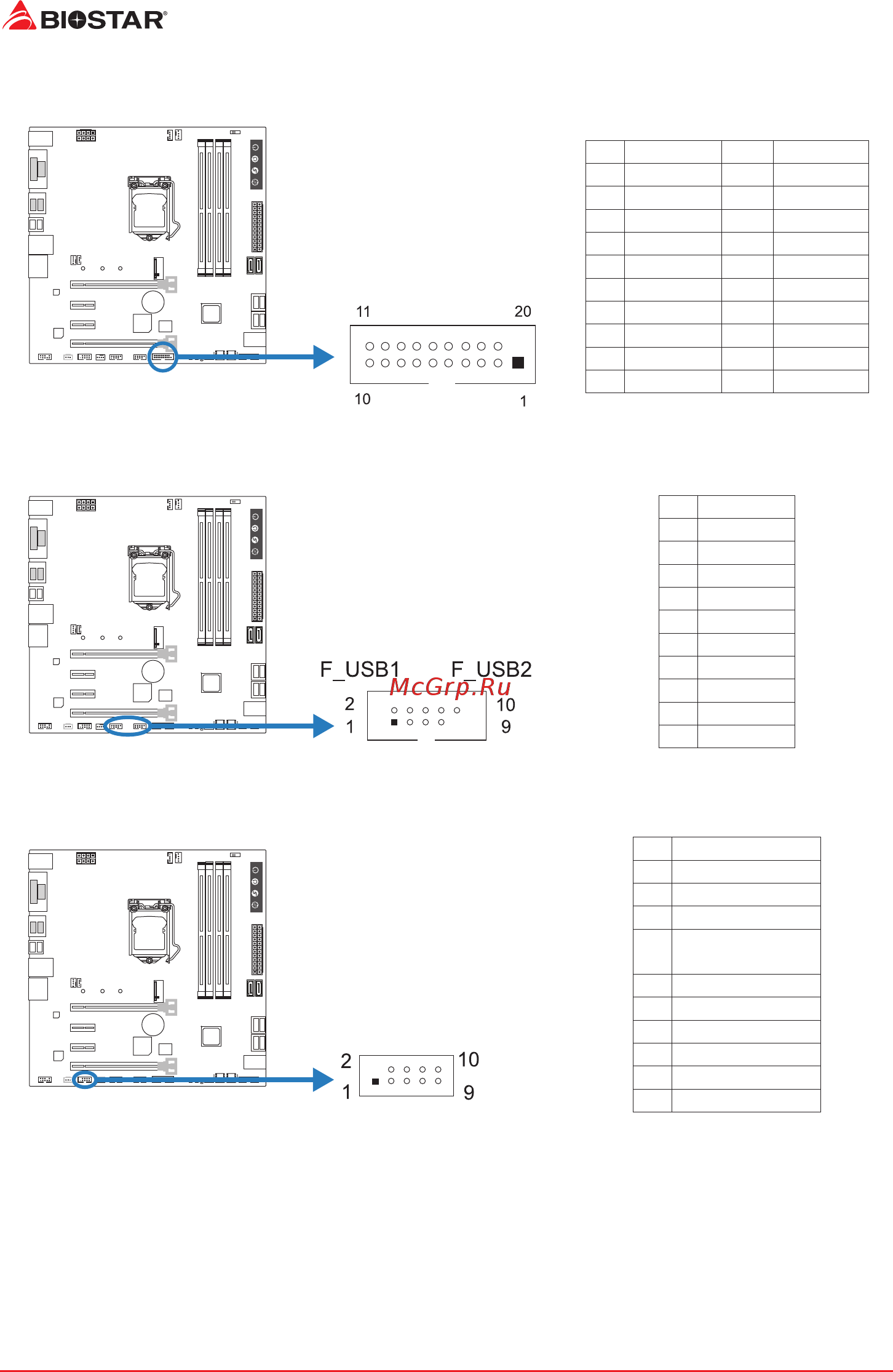

16 | 第二章: 硬件安装
JFRONT_USB3_1: 前置面板USB 3�0接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义 针 定义
1 VBUS0 11 D2+
2 SSRX1- 12 D2-
3 SSRX1+ 13 接地
4 接地 14 SSTX2+
5 SSTX1- 15 SSTX2-
6 SSTX1+ 16 接地
7 接地 17 SSRX2+
8 D1- 18 SSRX2-
9 D1+ 19 VBUS1
10 ID 20 Key
F_USB1/2: 前置面板USB 2�0接头
PC前置面板支持附加的USB数据线，也可连接即插即用外围设备。
针 定义
1 +5V (fused)
2 +5V (fused)
3 USB-
4 USB-
5 USB+
6 USB+
7 接地
8 接地
9 Key
10 NC
TB1: Thunderbolt 3接头
此接口连接PCI支架SPDIF输出接头。
针 定义
1 Force Power
2 NC
3 CIO Plug Event
4
I2C_MASTER_
DATA
5 SLP_3#
6 I2C_MATSTER_CLK
7 SLP_S5_S4#
8 PA_PPS_INT#
9 接地
10 接地
