Chapter 2: Hardware installaon | 15

Z270GT9 & Z270GT8

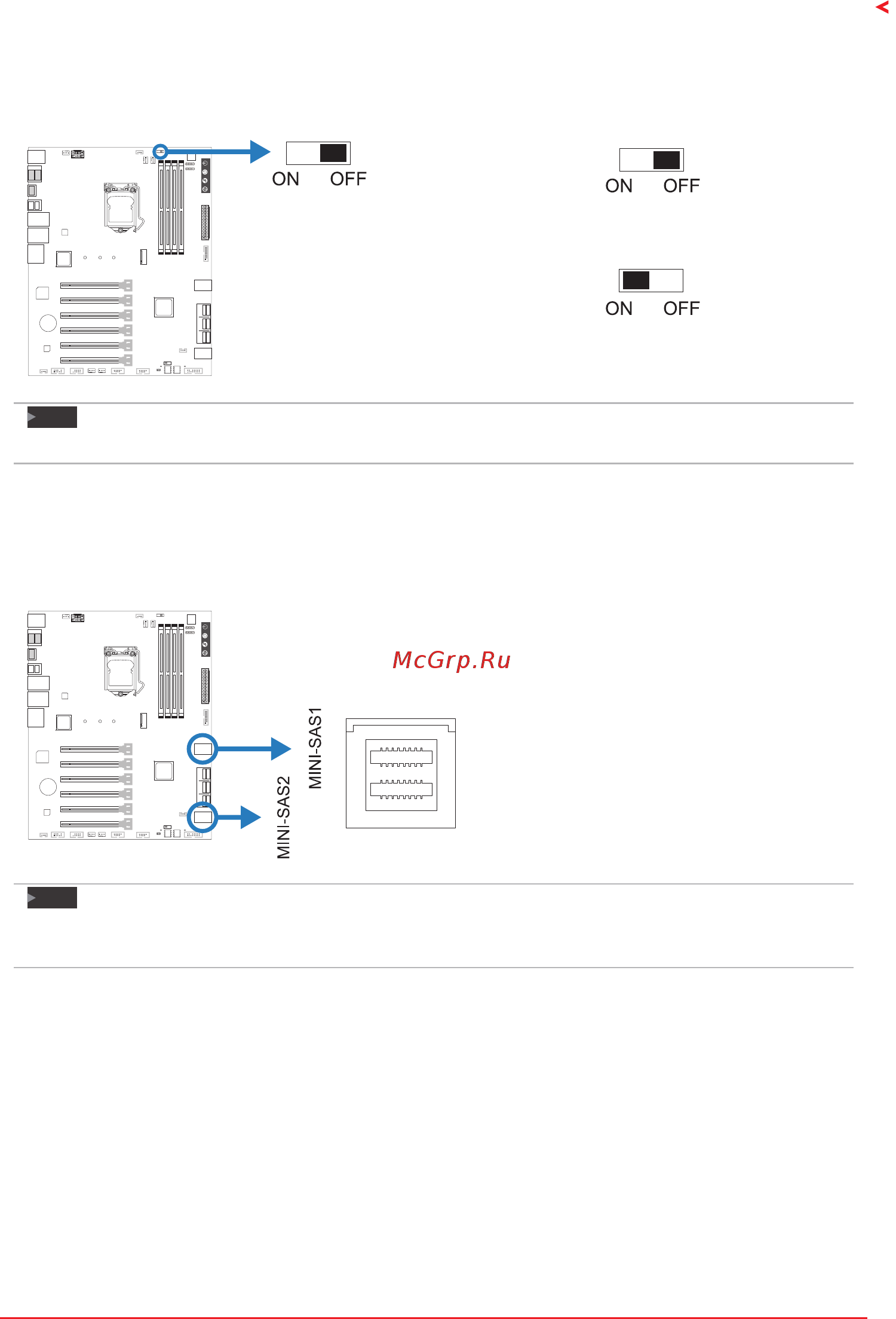

LN2_SW1: LN2 Mode Switch

When the LN2 mode is ON, the CPU will run at its lowest frequency (e.g., 800MHz) to avoid

unexpected system shutdown.

OFF (Default)

Note

 Wearenotresponsibleforthedamagesorriskscausedbyoverclocking.

2.7 Headers & Connectors

MINI-SAS1/2: U.2 Connector

• The U.2 connector supports PCIe 3.0 x4 NVM express storage.

• Support Intel® Rapid Storage Technology & Intel® Optane Technology.

Note



WhenPEX16_SB_1slotisoccupied,theMINI-SAS1connectorwillbedisabled.



WhenPEX16_SB_3slotisoccupied,theMINI-SAS2connectorwillbedisabled.
