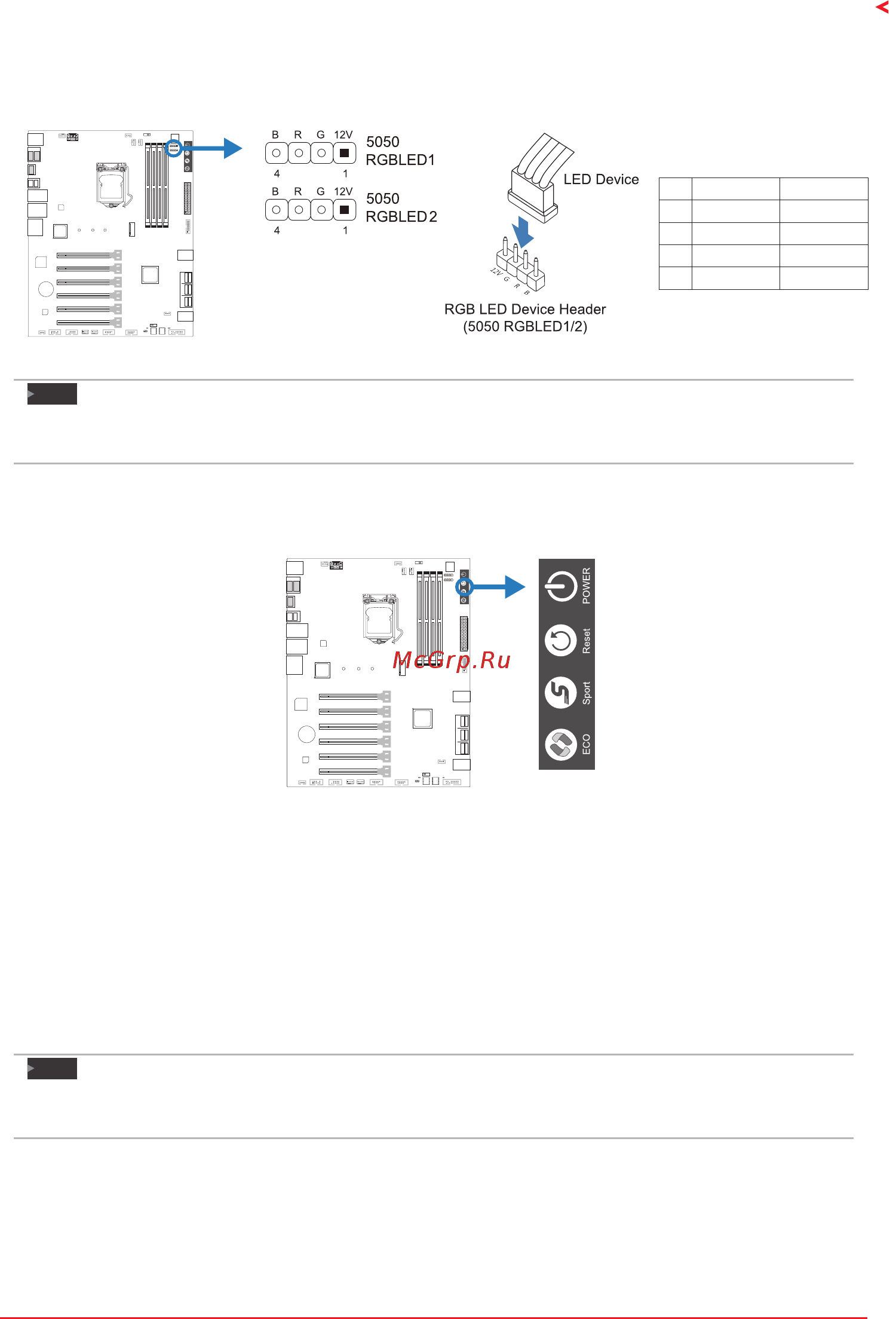

5050_RGBLED1/2: RGB LED Device (5050 SMD) Header

This header providers 12V power and RGB control pins for RGB LED Device (5050 SMD).

Pin Cable Color Assignment

1 12V (Black) VCC12

2 G (Green) LED_GREEN

3 R (Red) LED_RED

4 B (Blue) LED_BLUE

Note

 EnsureproperpinconnecngtoyourLEDdevice,wrongconneconmaydamageyourLEDdeviceor

motherboard.

2.8 Buttons, Indicators, LEDs

Touch Buons

ECO Mode:

Enabled ECO mode, it allows you save energy by slightly reducing system performance.

Sport Mode:

Enabled Sport mode, it allows you to maximize system performance but may use more

energy.

Reset:

Touch this buon to reboot the system.

Power:

Touch this buon to turn-on/o the system.

Note

 ECO/SPORTmodebuonswillonlybeavailablewhenrunningRACINGGTUlityinWindows

environment.
