Biostar Z270GT9 Версия 5.x [61/88] 7 接口和插槽

第二章: 硬件安装 | 15

Z270GT9 & Z270GT8

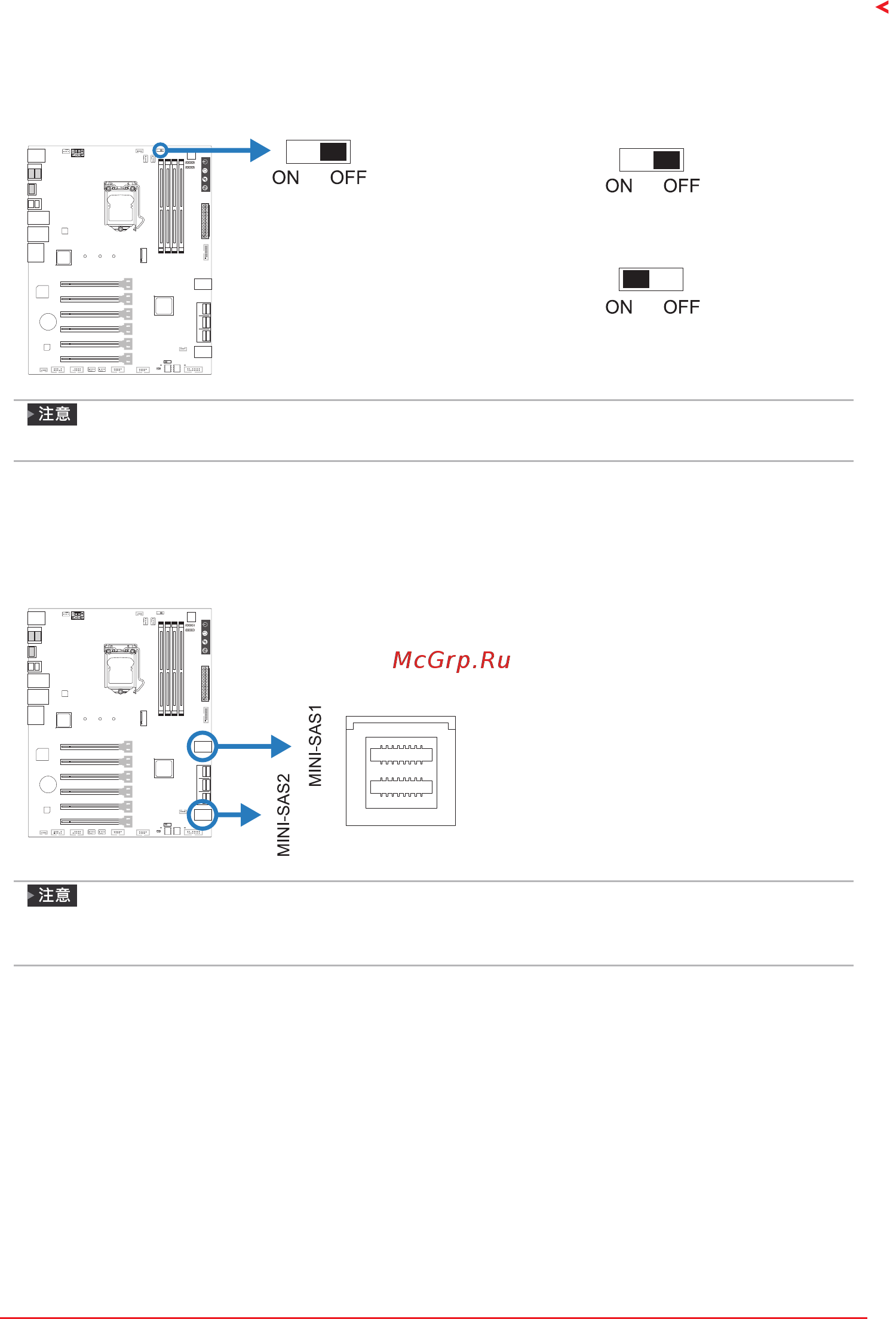

LN2_SW1: LN2模式跳线

当启用LN2模式时，CPU将在其最低频率运行（例如，800MHz）以避免系统意外的当

机。

关闭OFF(默认)

启用ON

我们不负责超频造成的损失或风险。

2�7 接口和插槽

MINI-SAS1/2: U�2接口

• 主板配备了一个U.2连接器，并支持PCIe 3.0 x4的NVMe快速存储设备。

• 支持 Intel®快速储存技术 & Intel® Optane技术。

当PEX16_SB_1插槽被占用时，MINI-SAS1接口将被禁用。

当PEX16_SB_3插槽被占用时，MINI-SAS2接口将被禁用。
