Chapter 2: Hardware installaon | 17

Z270GT9 & Z270GT8

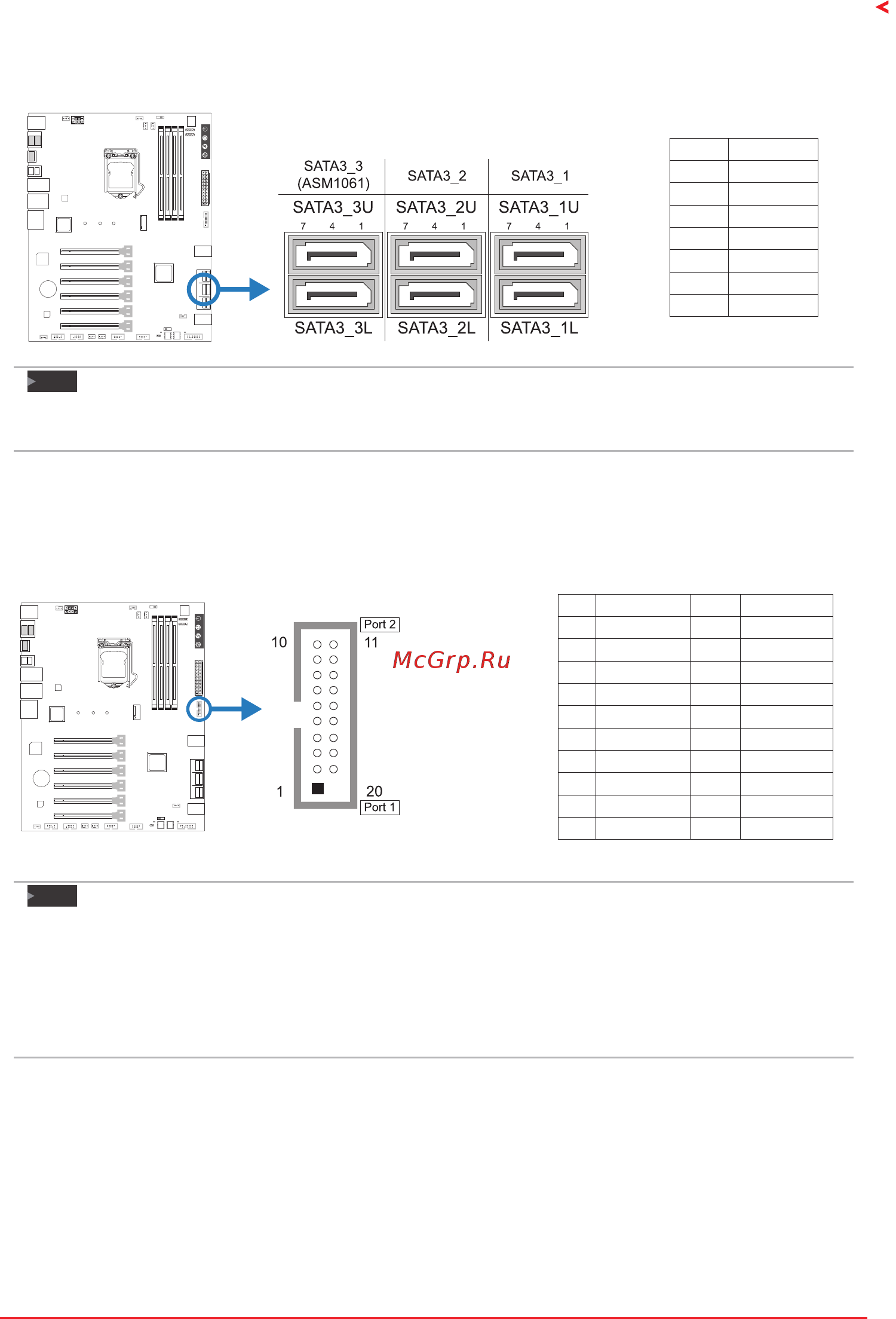

SATA3_1/3_2/3_3: Serial ATA Connectors

These connectors connect to SATA hard disk drives via SATA cables.

Pin Assignment

1 Ground

2 TX+

3 TX-

4 Ground

5 RX-

6 RX+

7 Ground

Note



WhenPEX16_SB_2slotisoccupied,theSATA3_1,SATA3_2connectorwillbedisabled.

»

WhenusingSATASSDmoduleonPCIE-M2_1slot,theSATA3_2Lconnectorwillbedisabled.

JFRONT_USB3_1: Header for USB 3.0 Ports at Front Panel

This header allows user to add addional USB ports on the PC front panel, and also can be

connected with a wide range of external peripherals.

• Support Lightning Charger up to 12V/1.5A output and APPLE mode (5V/2.4A).

Pin Assignment Pin Assignment

1 VBUS0 11 D2+

2 SSRX1- 12 D2-

3 SSRX1+ 13 Ground

4 Ground 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 Ground

7 Ground 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS1

10 ID 20 Key

Note



Pleasenotethatthechargingvoltagewillbechangingwiththebaerycondion.



PleasenotethatthechargingampereisdependedontheFrontPanelUSB3.0cable(Tradional

cableisonly900mA)



LightningChargerfuncononlyforJFRONT_USB3_1connector,andthisJFTONT_USB3_1connector

nosupportACPI-S3/S4funcon.



PleaserefertoChapter3.3formoredetailLighngcharger(QuickCharge2.0)sowareseng.
