Chapter 2: Hardware installaon | 13
X570GT8

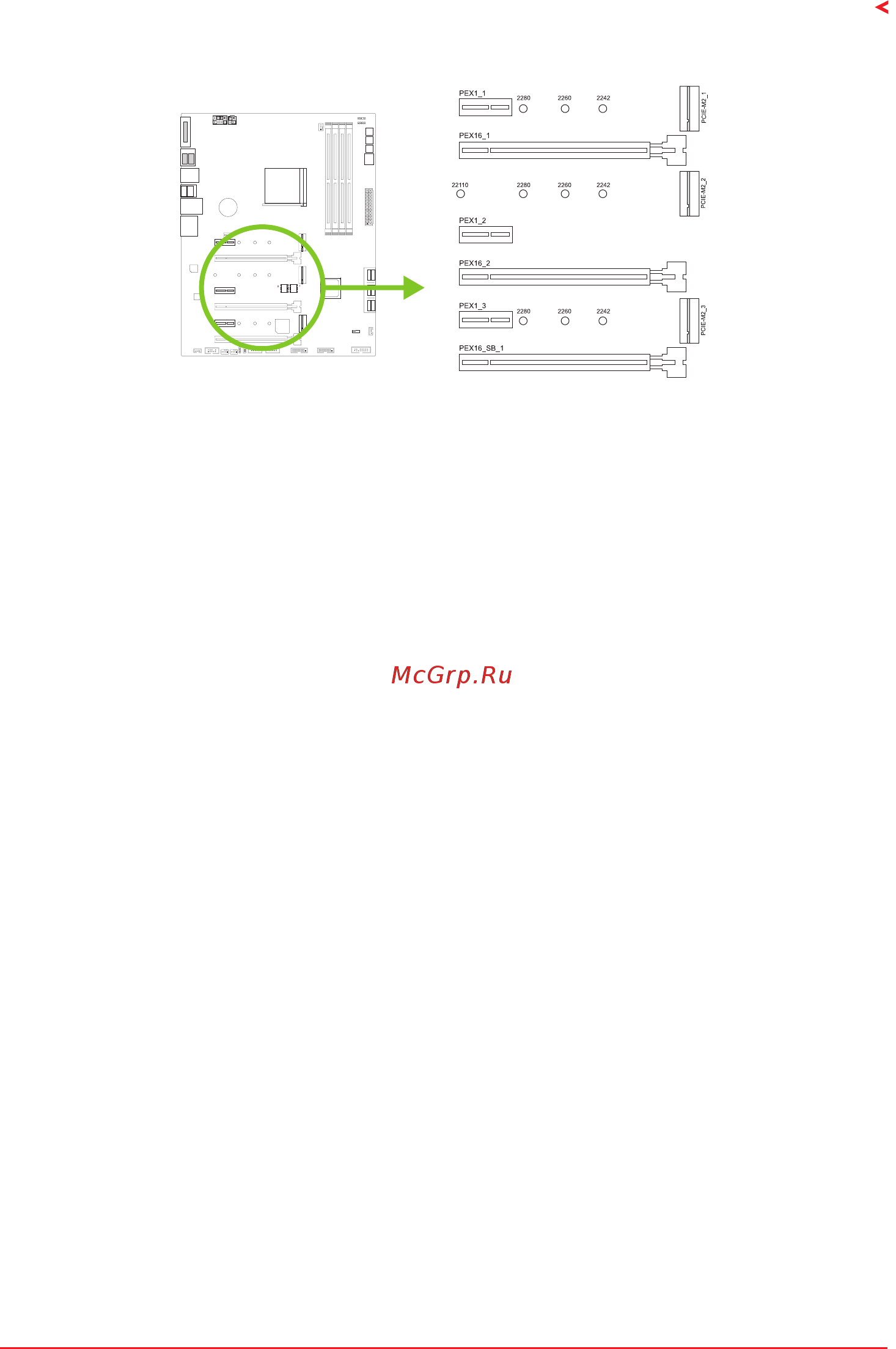

2.5 Expansion Slots
PEX16_1: PCI-Express (Gen3/ Gen4) x16 Slot
• PCI-Express 3.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 16GB/s for each slot, a total of 32GB/s.
• PCI-Express 4.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 32GB/s for each slot, a total of 64GB/s. (Masse Only)
• Supports x16 (x16, x8) lanes with AMD® Ryzen™ 1st, 2nd and 3rd Gen processors.
• Supports x8 lanes with AMD® Ryzen™ with Radeon Vega Graphics processors.
PEX16_2: PCI-Express (Gen3/ Gen4) x16 Slot (x8 lanes)
• PCI-Express 3.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 8GB/s for each slot, a total of 16GB/s.
• PCI-Express 4.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 16GB/s for each slot, a total of 32GB/s. (Masse Only)
• Supports x8 lanes with AMD® Ryzen™ 1st, 2nd and 3rd Gen processors.
• PEX16_2 slot only AMD Masse and Pinnacle support.
PEX16_SB_1: PCI-Express (Gen3/ Gen4) x16 Slot (x4 lanes)
• PCI-Express 3.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 4GB/s for each slot, a total of 8GB/s.
• PCI-Express 4.0 compliant. Theorecal maximum bandwidth using two slots
simultaneously is 8GB/s for each slot, a total of 16GB/s. (Masse Only)
PEX1_1/ 1_2/ 1_3: PCI-Express (Gen3/ Gen4) x1 Slot
• PCI-Express 3.0 compliant. Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in
total.
• PCI-Express 4.0 compliant. Data transfer bandwidth up to 2GB/s per direcon; 4GB/s in
total. (Masse Only)
PCIE-M2_1/ PCIE-M2_3: M.2 (Key M) Slot
• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD
module, please place the screw and hex pillar to correct posion.
• Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen4 x4
(64Gb/s), which depends only on Ryzen 3rd Gen Masse.
