Biostar X570GT8 Версия 5.x [8/98] Chapter 2 hardware installation

8 | Chapter 2: Hardware installaon

Chapter 2: Hardware installaon

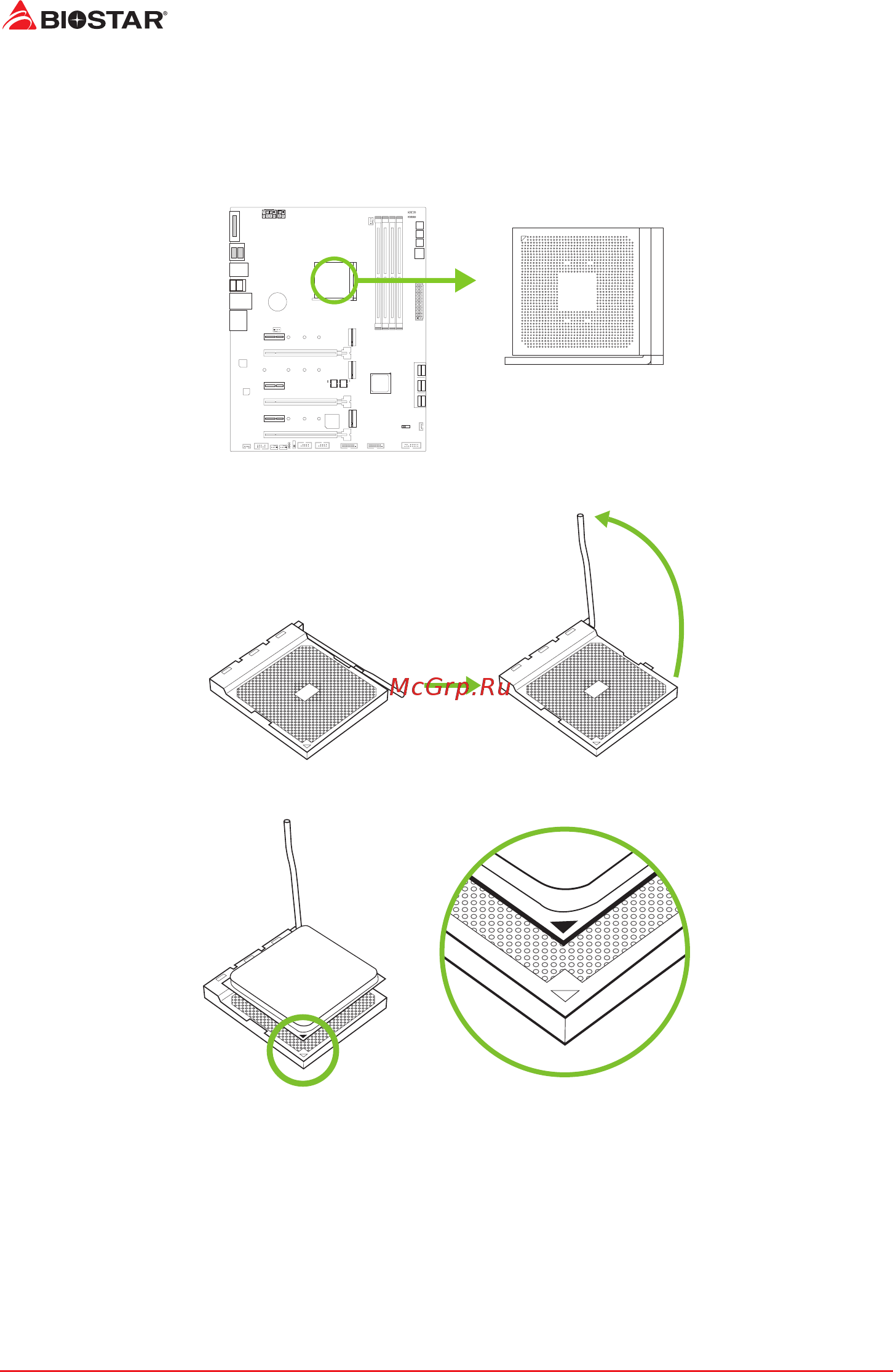

2.1 Install Central Processing Unit (CPU)

Step 1: Locate the CPU socket on the motherboard

Step 2: Pull the socket locking out from the socket and then raise the lever up to a 90-degree

angel.

Step 3: Look for the white triangle on socket, and the gold triangle on CPU should point

towards this white triangle. The CPU will t only in the correct orientaon.
