第二章: 硬件安装 | 13
X570GT8
2�5 扩展槽

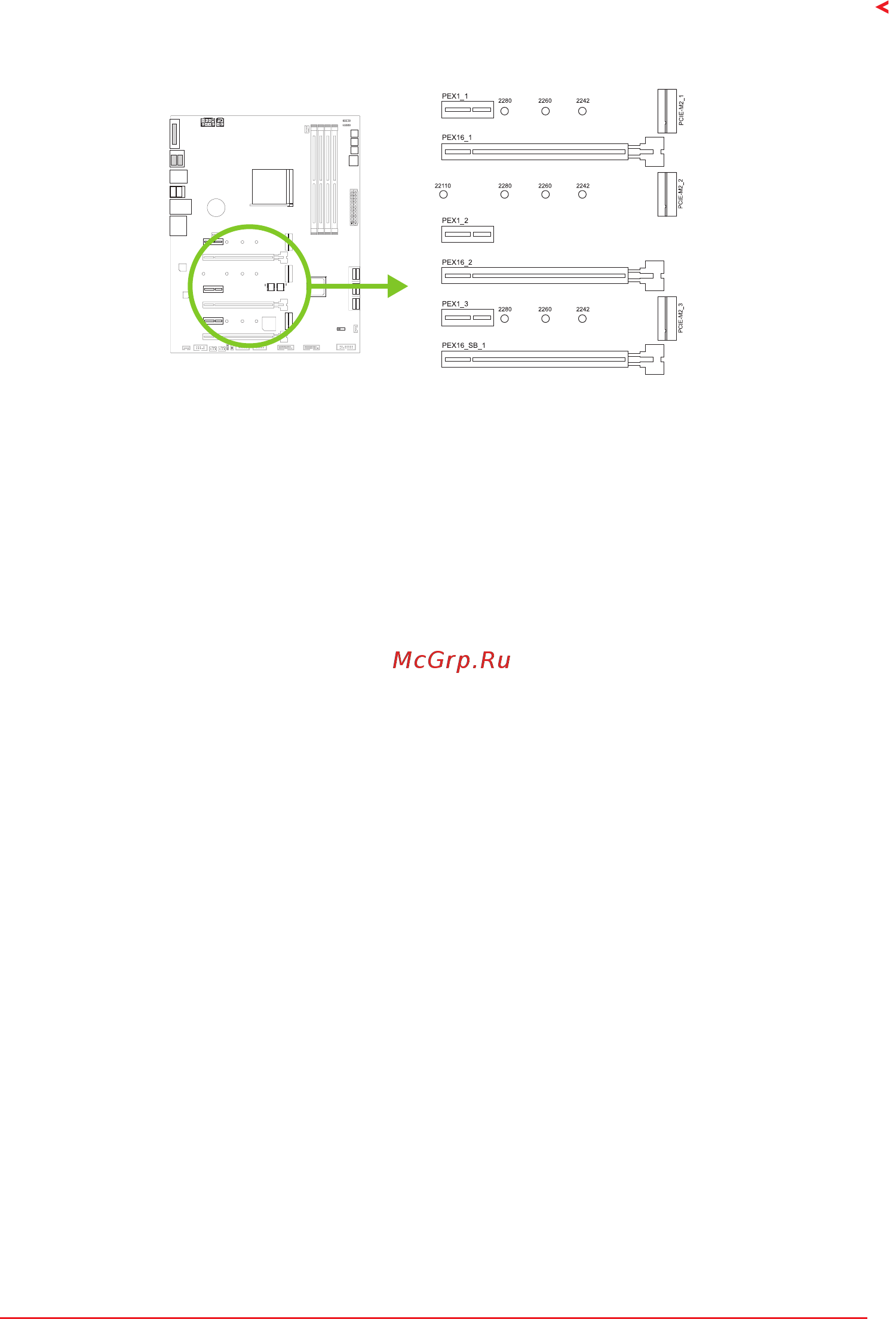

PEX16_1: PCI-Express (Gen3/Gen4) x16 插槽
• 符合PCI-Express 3.0规范，同步单向最大理论带宽为16GB/s，总带宽为32GB/s。
• 符合PCI-Express 4.0规范，同步单向最大理论带宽为32GB/s，总带宽为64GB/s。(仅
限Matisse)
• 支持使用AMD
® Ryzen™ 第1/ 2/ 3代处理器x16(x16, x8)通道。
• 支持使用AMD
® Ryzen™ 和带有Radeon Vega Graphics处理器x8通道。
PEX16_2: PCI-Express (Gen3/Gen4) x16 插槽 (x8 通道)
• 符合PCI-Express 3.0规范，同步单向最大理论带宽为8GB/s，总带宽为16GB/s。
• 符合PCI-Express 4.0规范，同步单向最大理论带宽为16GB/s，总带宽为32GB/s。(仅
限Matisse)
• 支持使用AMD
® Ryzen™ 第1/ 2/ 3代处理器x8通道。
• PEX16_2插槽仅支持AMD
® Matisse和Pinnacle。
PEX16_SB_1: PCI-Express (Gen3/Gen4) x16 插槽 (x4 通道)
• 符合PCI-Express 3.0规范，同步单向最大理论带宽为4GB/s，总带宽为8GB/s。
• 符合PCI-Express 4.0规范，同步单向最大理论带宽为8GB/s，总带宽为16GB/s。(仅限
Matisse)
PEX1_1/1_2/1_3: PCI-Express (Gen3/Gen4) x1 插槽
• 符合PCI-Express 3.0规范，同步单向最大理论带宽为1GB/s，总带宽为2GB/s。
• 符合PCI-Express 4.0规范，同步单向最大理论带宽为2GB/s，总带宽为4GB/s。(仅限
Matisse)
PCIE-M2_1/PCIE-M2_3: M�2 (Key M) 插槽
• M.2插槽支持M.2 Type 2242/2260/2280 SSD模块。安装M.2模块前请将六角柱放
到正确的位置。
• 支持M.2 SATA III (6.0 Gb/s)模块与M.2 PCI Express Gen4 x4模块(64 Gb/s)，仅取
决于Ryzen 3rd Gen Matisse。
PCIE-M2_2: M�2 (Key M) 插槽
• M.2插槽支持M.2 Type 2242/2260/2280/22110 SSD模块。安装M.2模块前请将六
角柱放到正确的位置。
• 支持M.2 SATA III (6.0 Gb/s)模块与M.2 PCI Express Gen4 x4模块(64 Gb/s)，仅取
决于Ryzen 3rd Gen Matisse。
