What Service Checker Can Do SiE30-408
136 Service Checker Type3 Application Edition

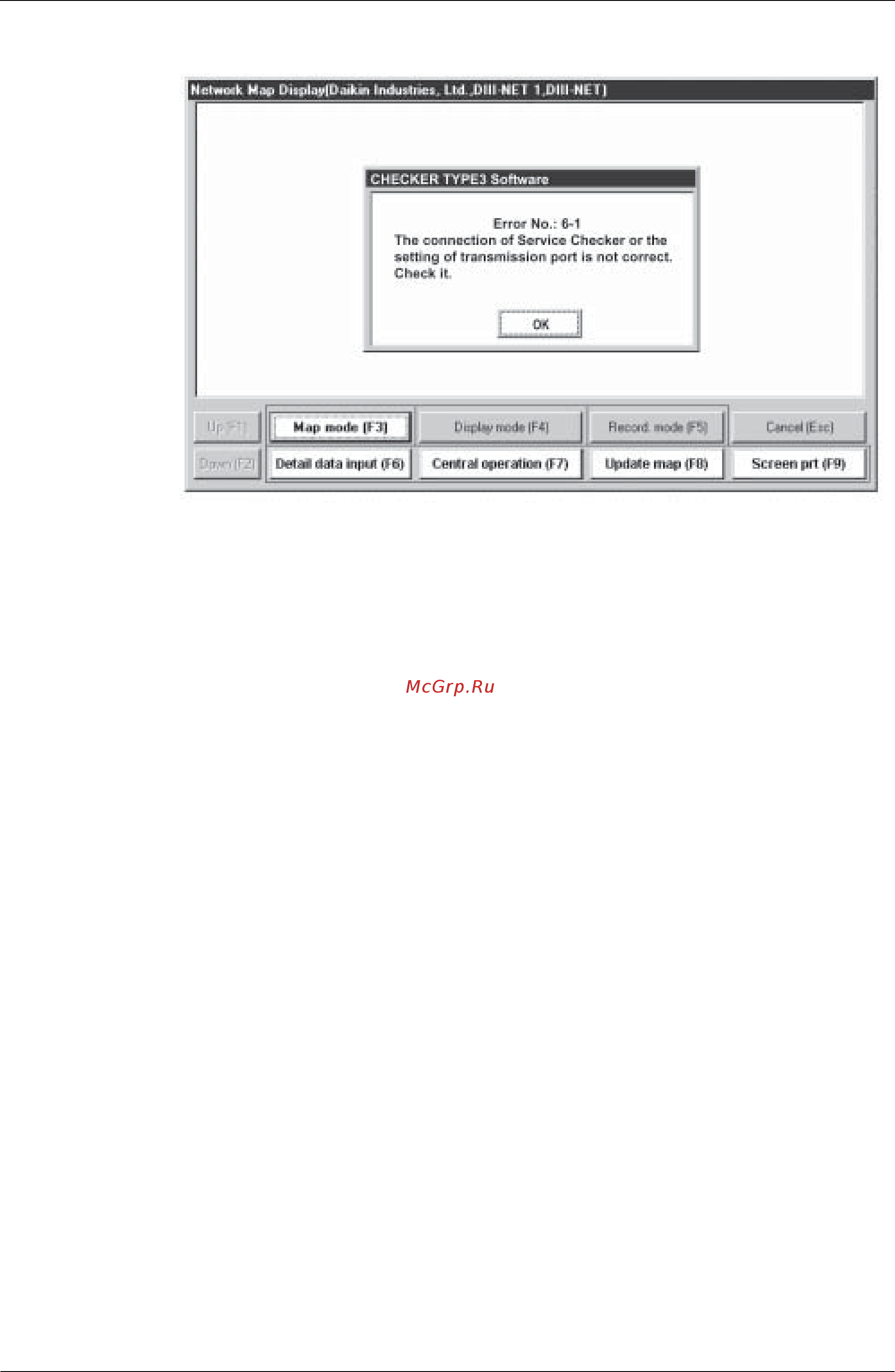

Even tough all settings have been made and the window has been switched, if no data is read
and the above error is displayed on the window, the following causes will be supposed.
• “F1 and F2” is not well connected,
• PC board is not properly connected, or
• The Checker is not power ON.
Therefore, check to be sure the above connections or else.
