SiE30-408 What Service Checker Can Do
Service Checker Type3 Application Edition 135
Procedure Select the method of registering and connecting systems.

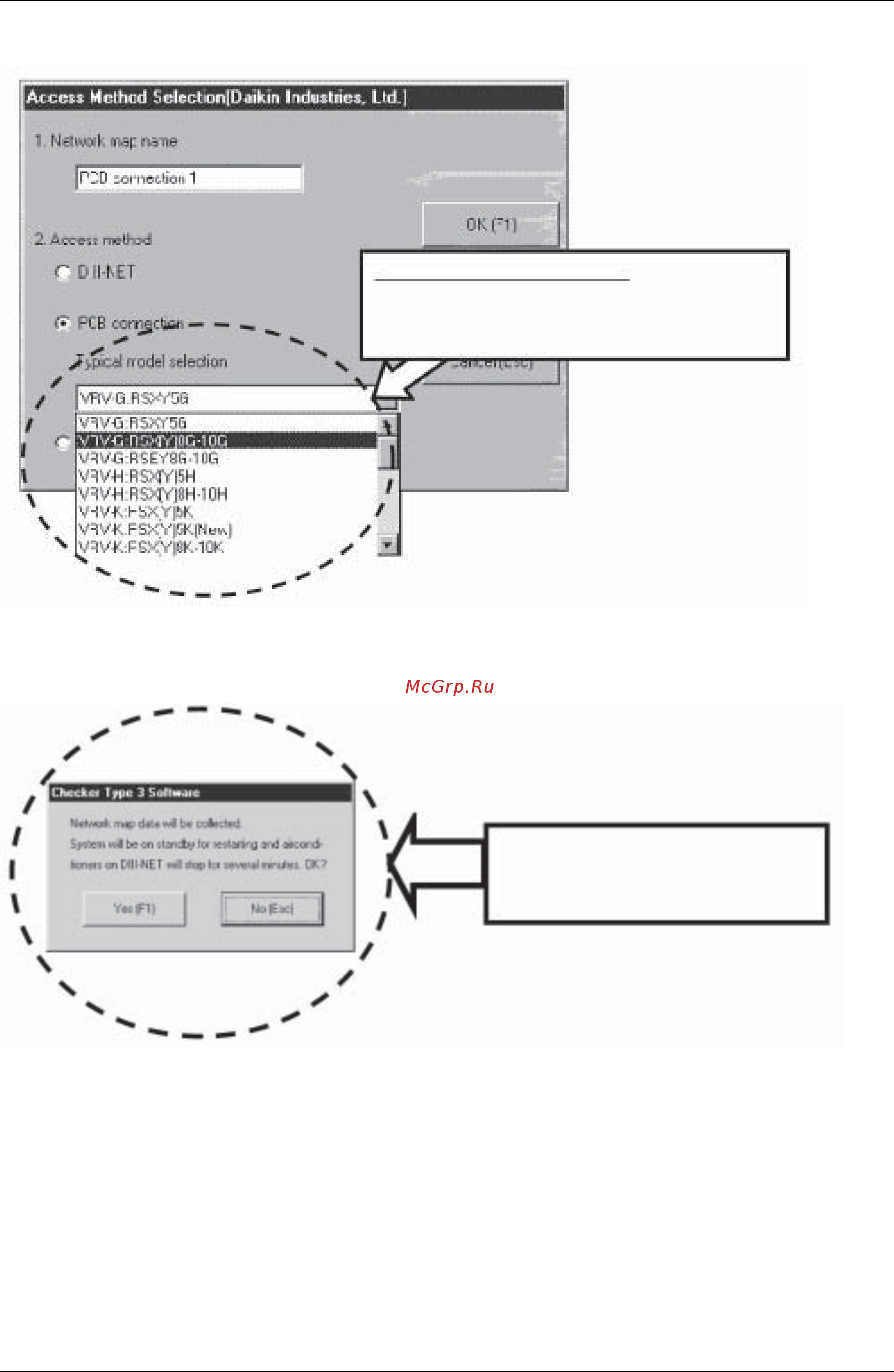

Enter the “System Name” and then select the “Connecting Method”.
For the connecting method, check either “DIII-NET” or “PCB connection”.
If you attempt to record data through the use of DIII-NET (F1, F2 connection), the warning
above will appear on the window.
In this case, clicking on the “Yes” will stop all systems connected to the DIII-NET for a period of
several minutes, which has ever resulted in a claim regarding the server room of hospital.
If the Checker is connected to any other systems via Outdoor-Outdoor transmission besides
the system of outdoor units connected, these other systems will go into “Restart standby
(forced thermostat OFF)” mode.
After the completion of “Restart standby” mode, the systems will be automatically reset, thus
returning to operation prior to the standby.
In the case of PCB connection, the systems will never go into “Restart standby” mode.
To use in PC board connection
Check “PCB connection”and highlight an
applicable model in the list of Typical model
selection.
Be sure to get permission from
the customer and then click
“Ye s”.
